Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drum Brake System
Drum Brake System

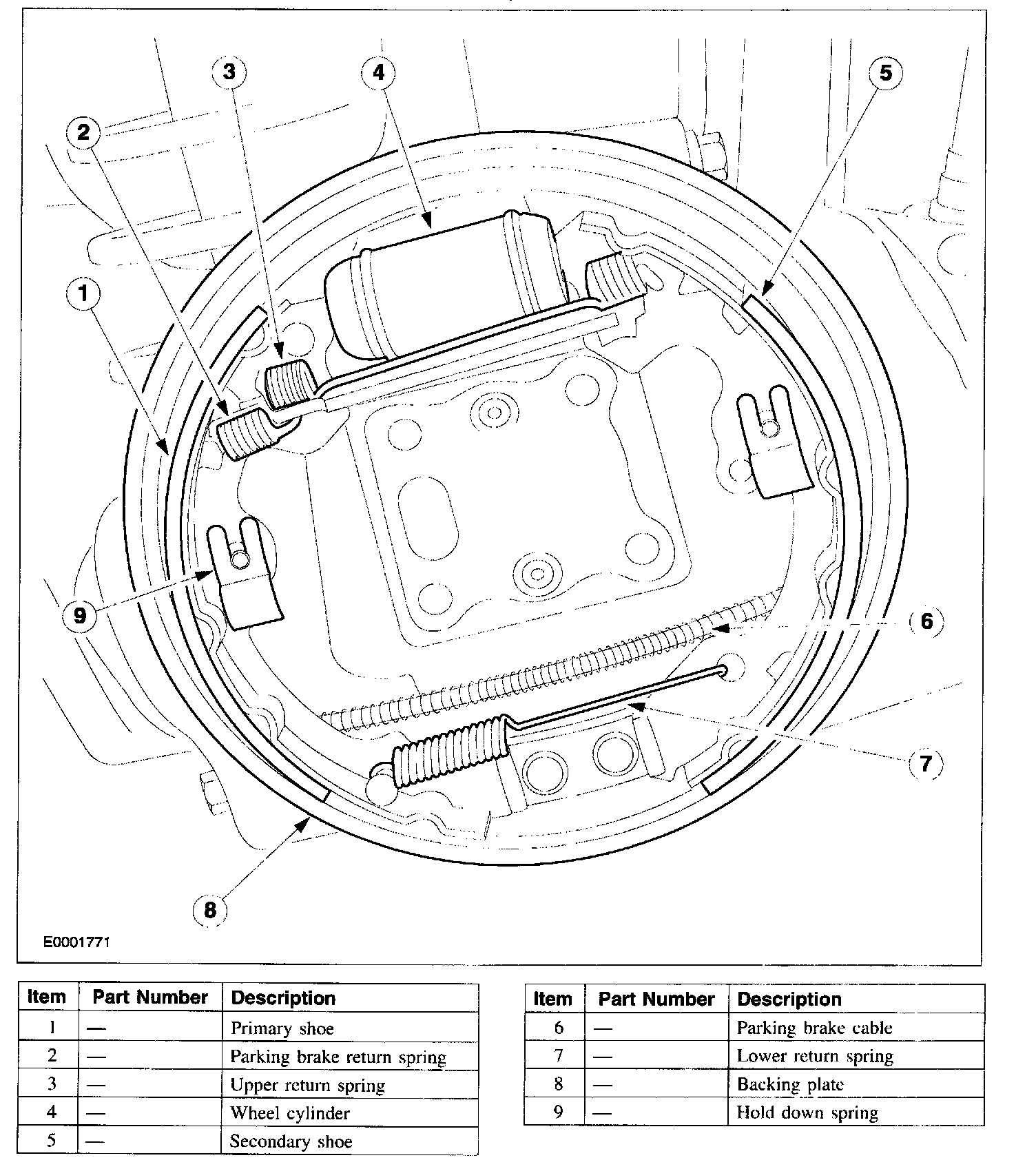

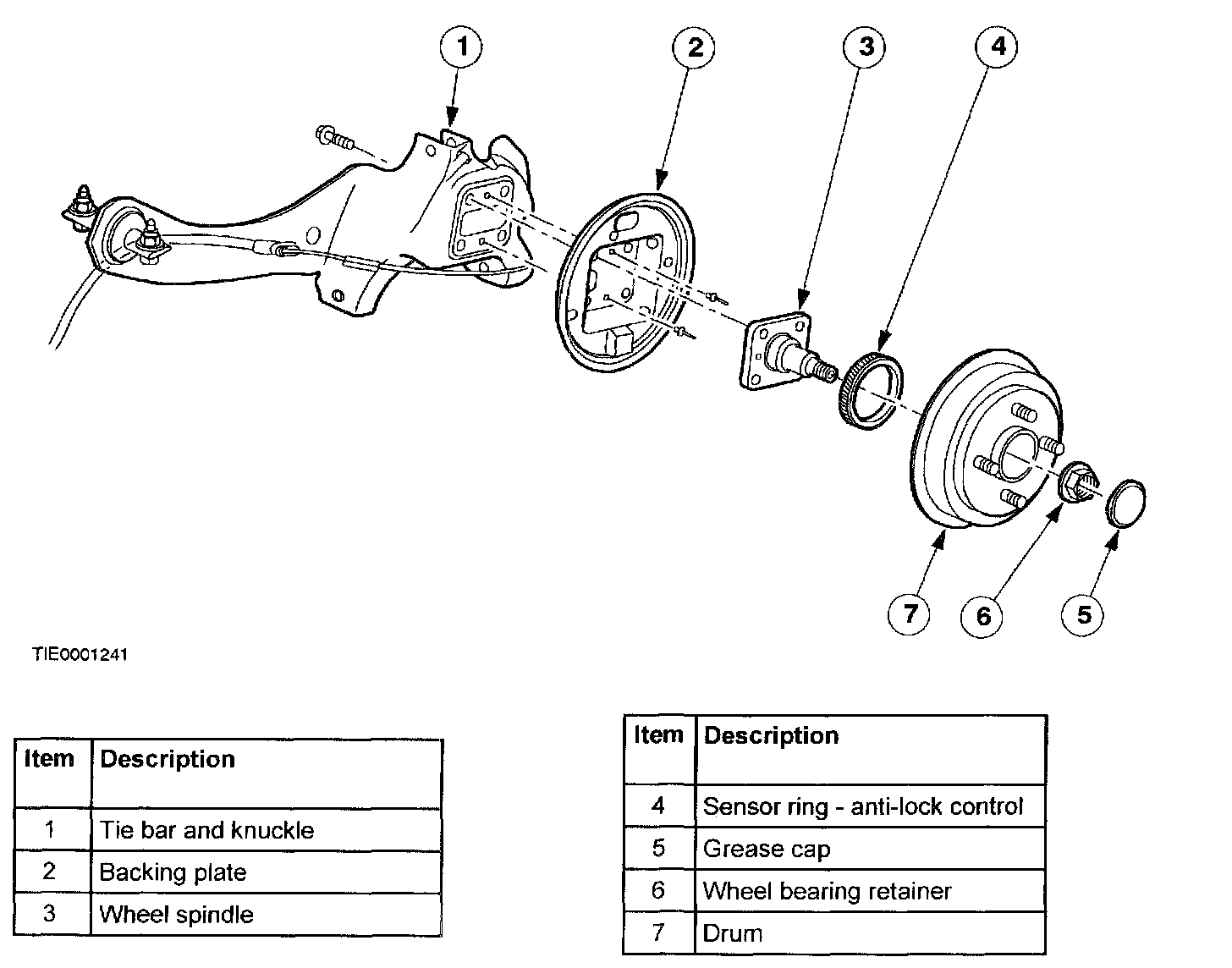

Drum Brake
Part 2 Of 2:
