Home >> Ford >> 2003 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Test A

Test A

PINPOINT TEST A: ONE OR BOTH HEADLAMPS ARE INOPERATIVE (LOW AND HIGH BEAM)

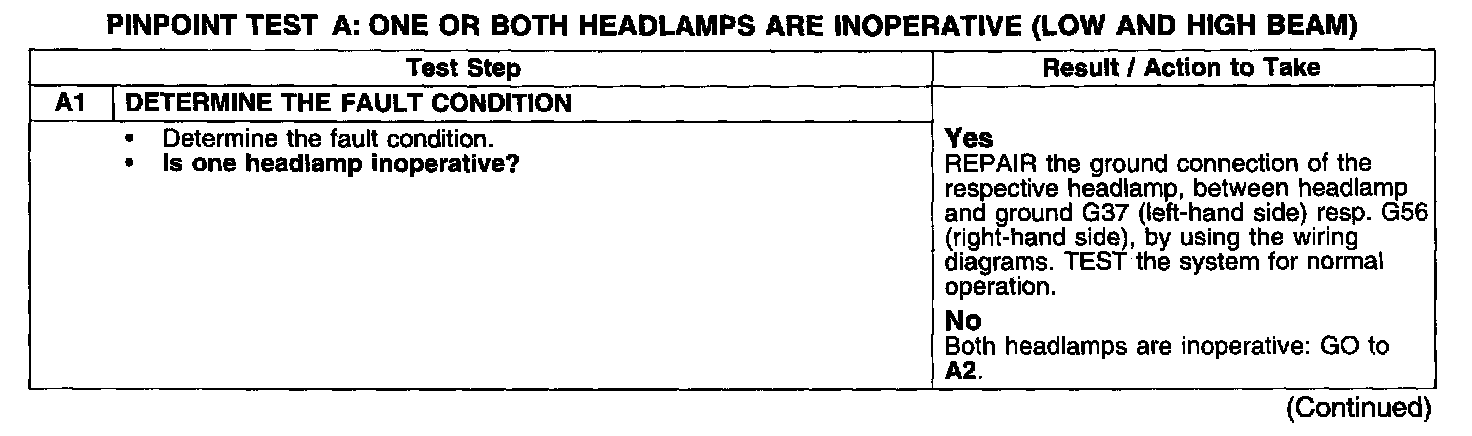

Test A1:

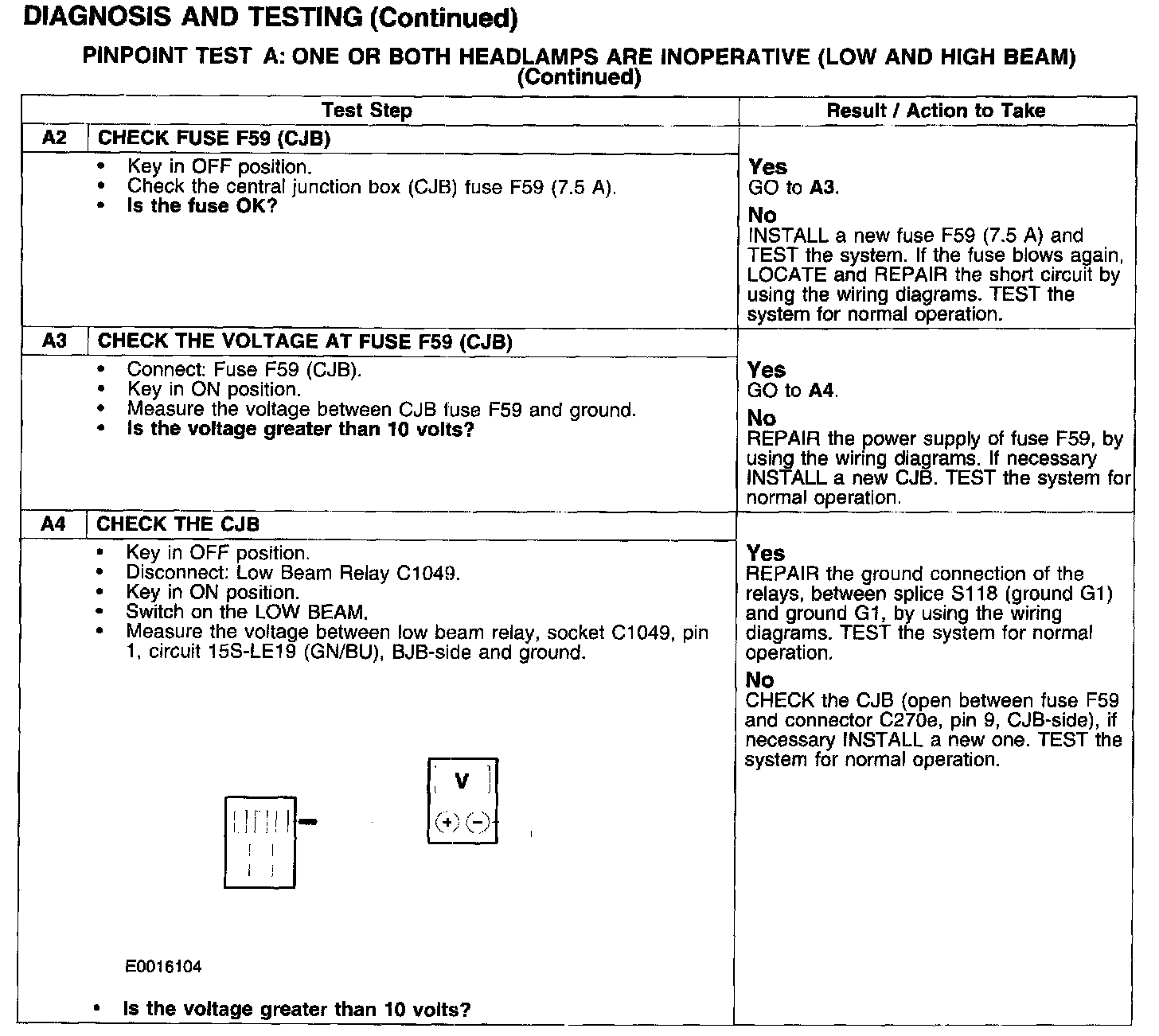

Test A2-A4:
