Central Junction Box (CJB)

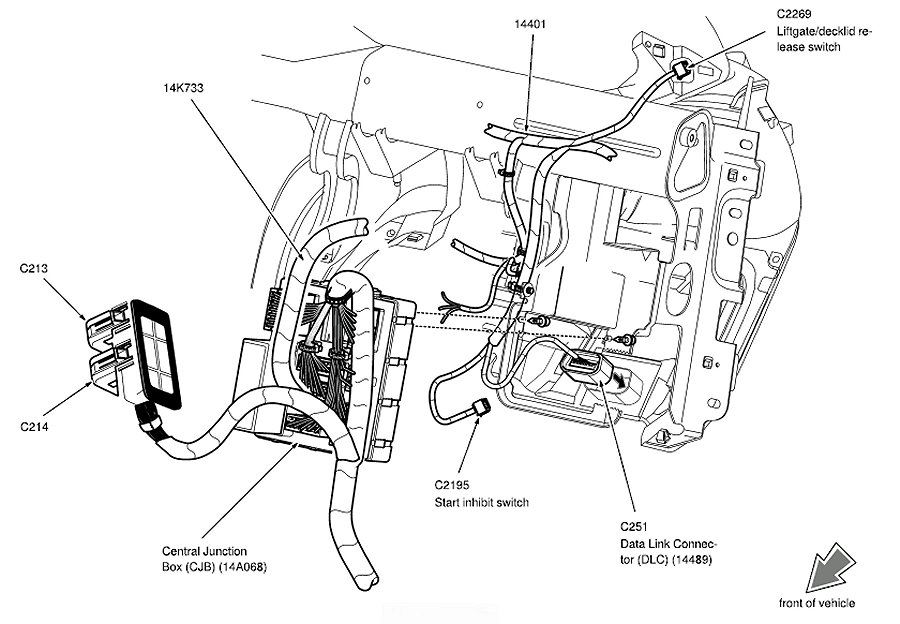

Central Junction Box (CJB) is located behind the dash panel on the LH side.
