Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Focus L4-2.3L VIN Z
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test O
Test O
PINPOINT TEST O: LFC 6/DTC B2118 - PASSENGER SIDE, SIDE MOUNT
AIR BAG
LOW CAPACITANCE ON SQUIB

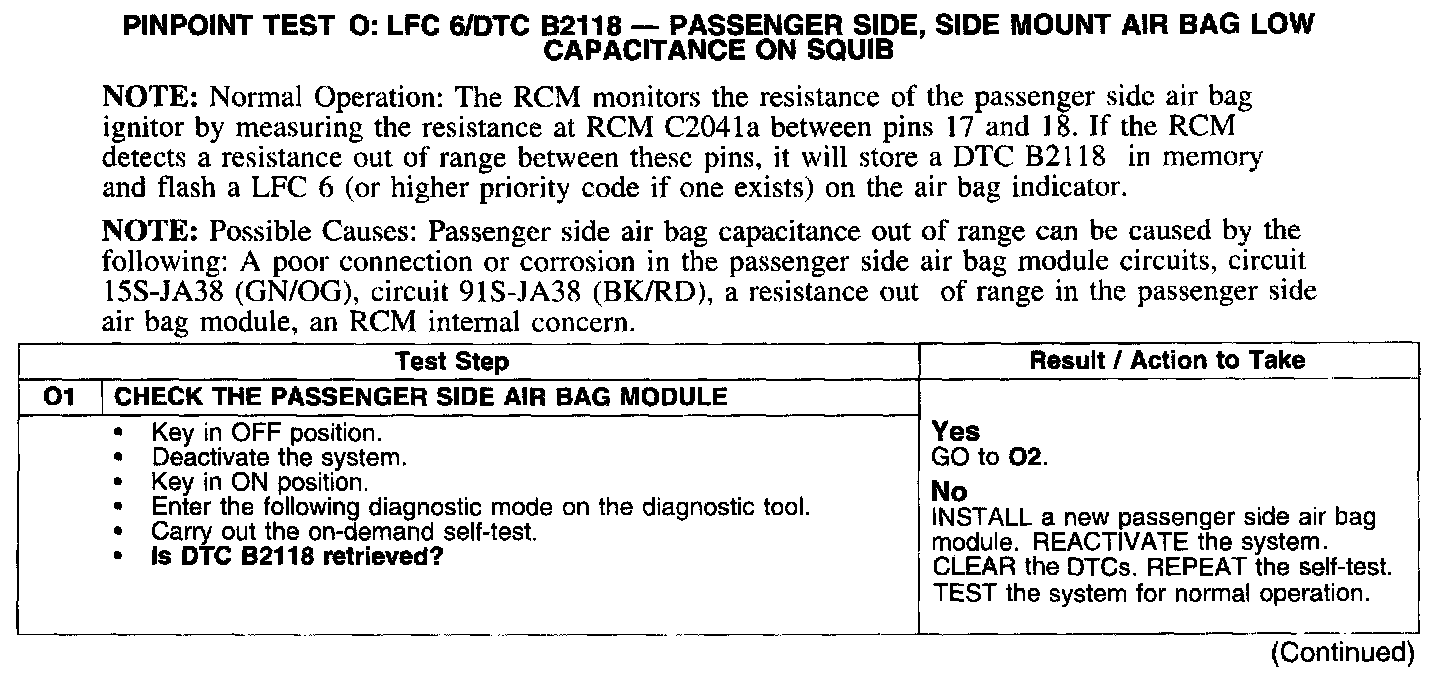

Test O1:

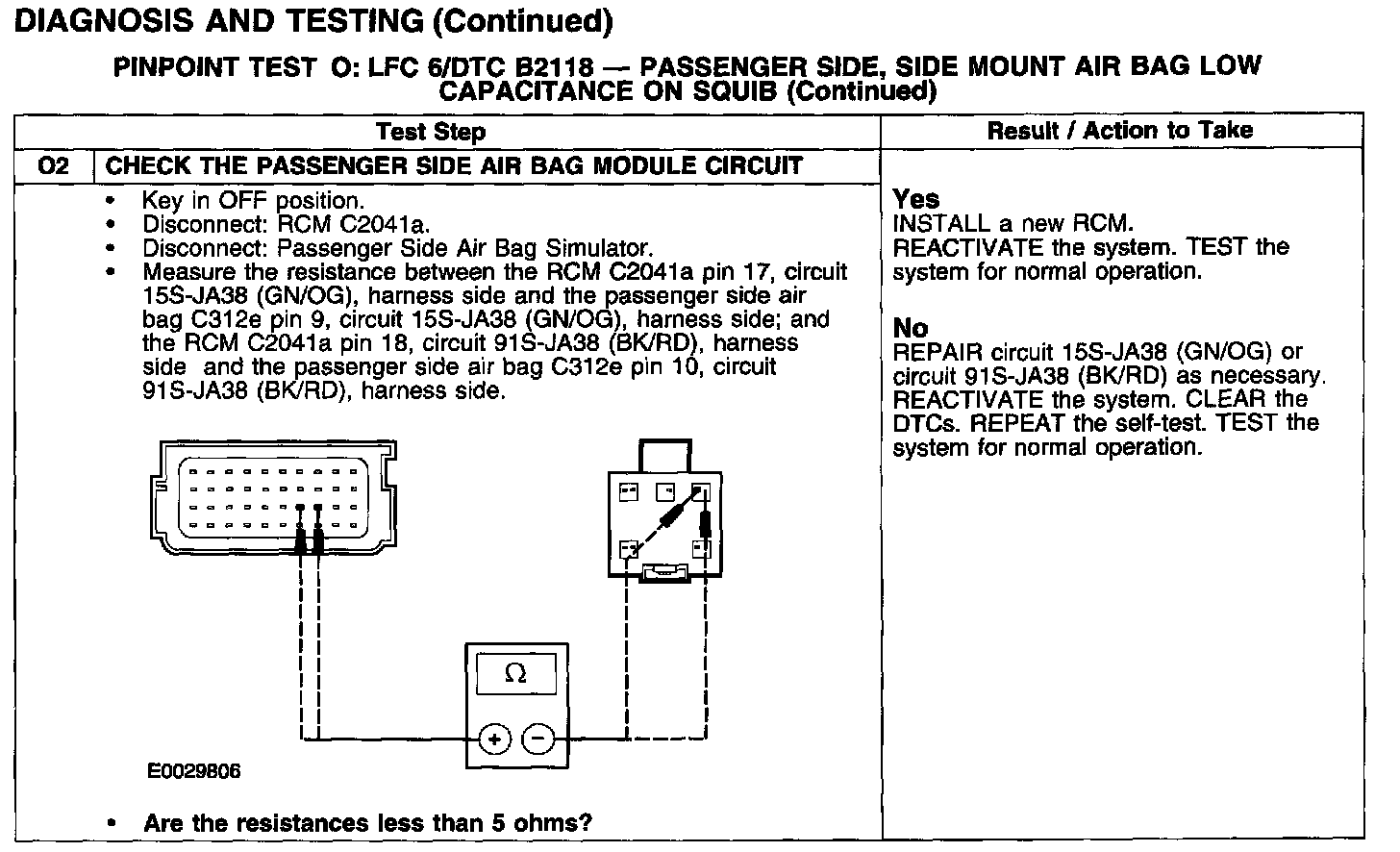

Test O2:
