PINPOINT TEST Q: LTC 6/DTC B2852/B2874/B2875/U2028 - RIGHT SIDE CRASH SENSOR INTERNAL FAULT/SHORT TO GROUND/VBATT/ID FAULT

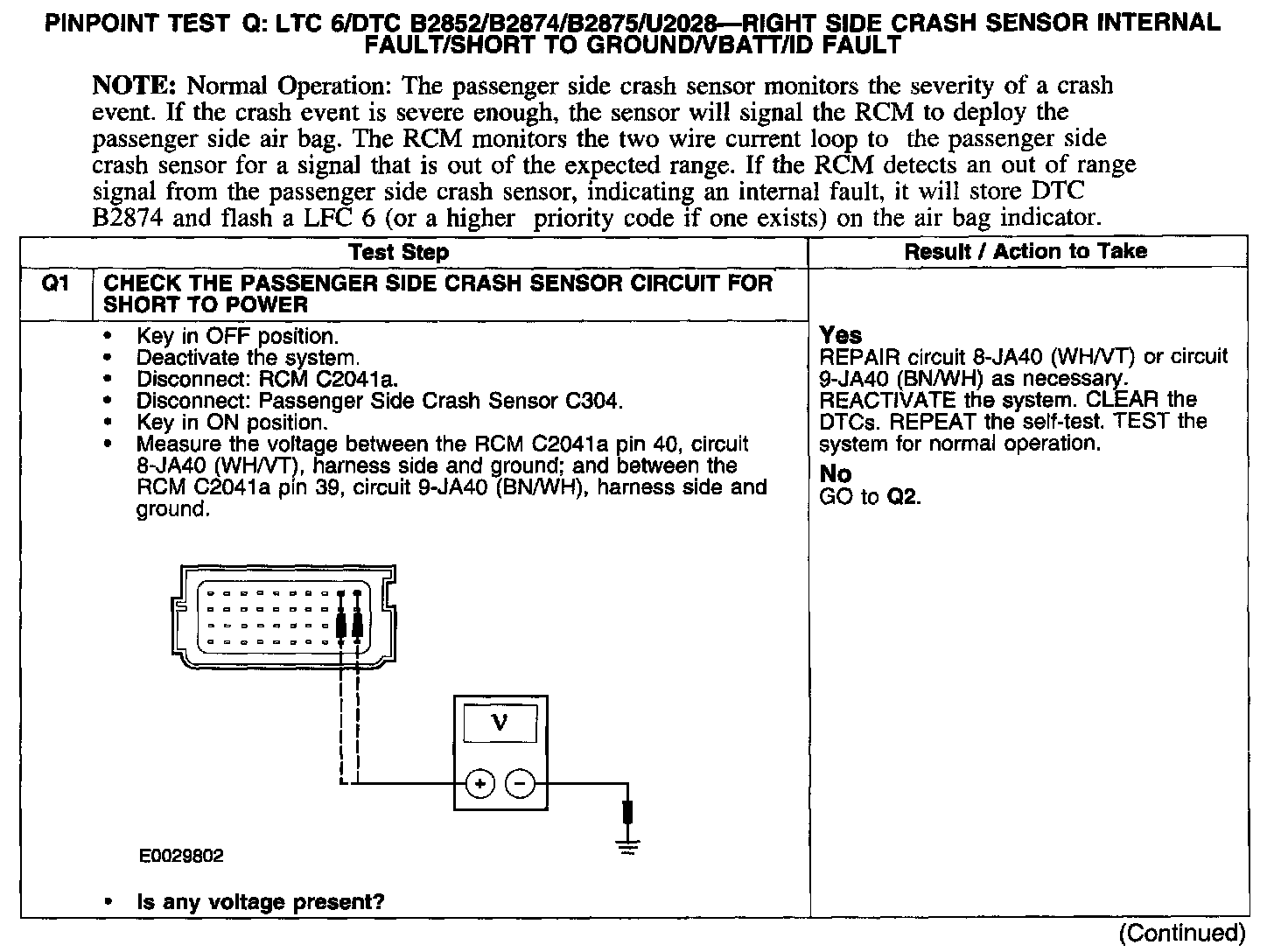

Test Q1:

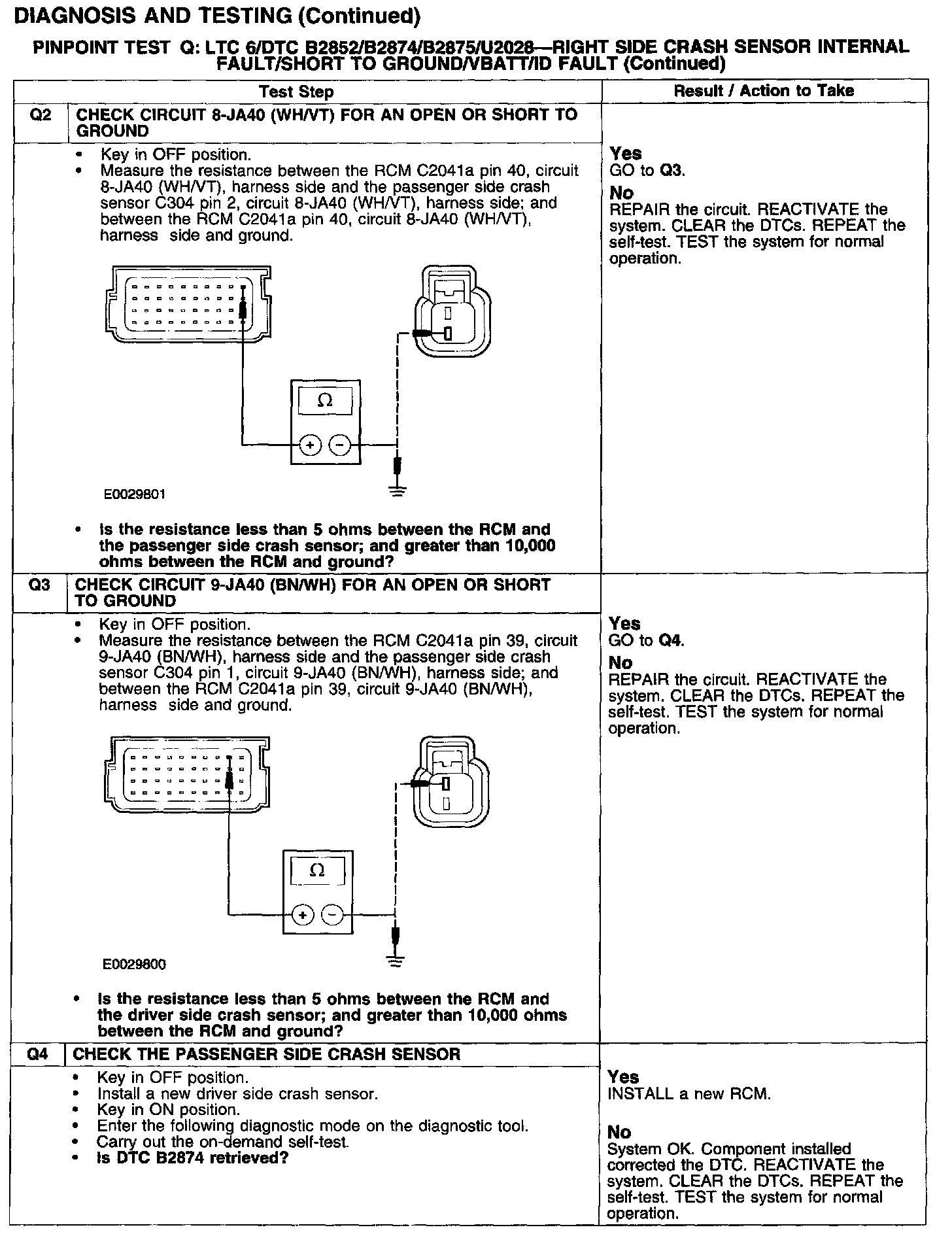

Test Q2-Q4:
