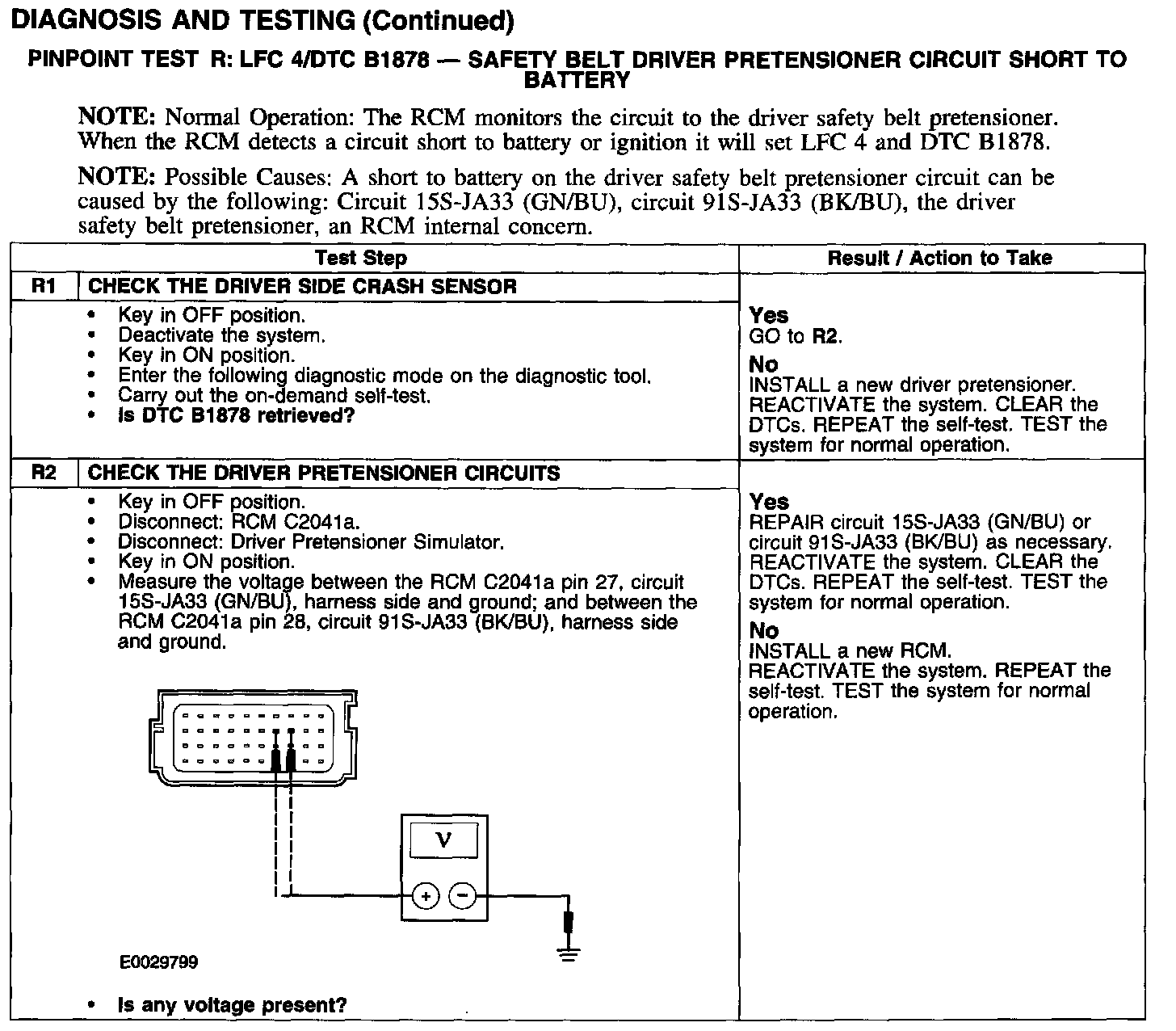

PINPOINT TEST R: LFC 4/DTC B1878 - SAFETY BELT DRIVER PRETENSIONER CIRCUIT SHORT TO BATTERY
Test R1-R2:
