Test Y
Test Y

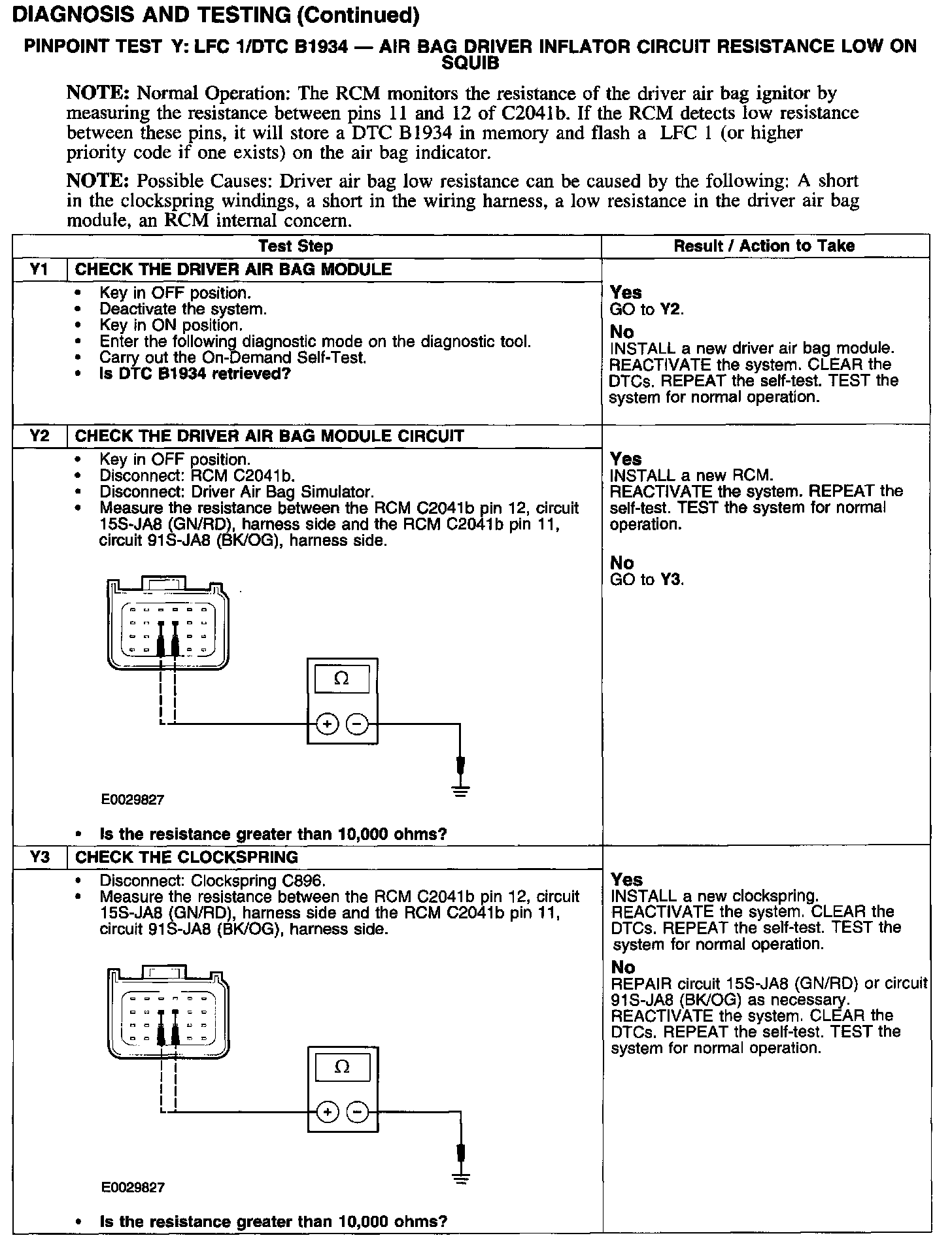

PINPOINT TEST Y: LFC 1/DTC B1934 -
AIR BAG
DRIVER INFLATOR CIRCUIT RESISTANCE LOW ON SQUIB
Test Y1-Y3:
