Engine
>>
System Specifications
>>
Flywheel/Flexplate
Flywheel/Flexplate

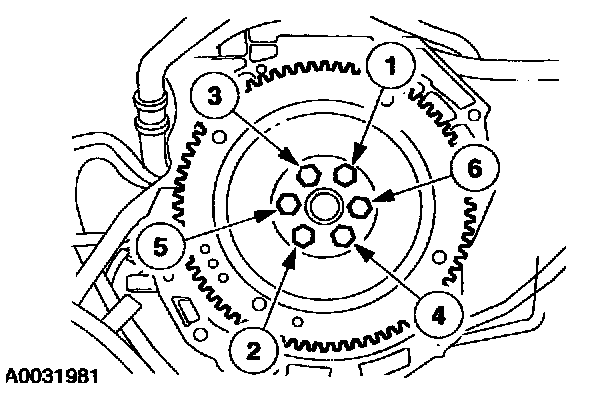

Flywheel/Flexplate bolts
Stage 1
50 Nm (37 ft. lbs.)
Stage 2
80 Nm (50 ft. lbs.)
Stage 3
112 Nm (83 ft. lbs.)
