Disassembly and Assembly

DISASSEMBLY

All vehicles
1. Remove the front seat backrest.







2. Remove the front seat backrest head restraint.







3. Remove the screws and the safety belt guide.







4. Remove the front seat headrest guide rod sleeve.







5. Release the J-clip.







6. Remove the seat backrest latch handle knob.







7. Pull the seat backrest trim cover upward.







8. Remove the hog rings.







9. Remove the front seat backrest trim cover from the front seat backrest pad.







10. Release the front seat backrest frame from the front seat backrest foam pad.

Vehicles with standard power lumbar







11. Remove the seat backrest lumbar adjuster pad.

Vehicles with power bolster and lumbar

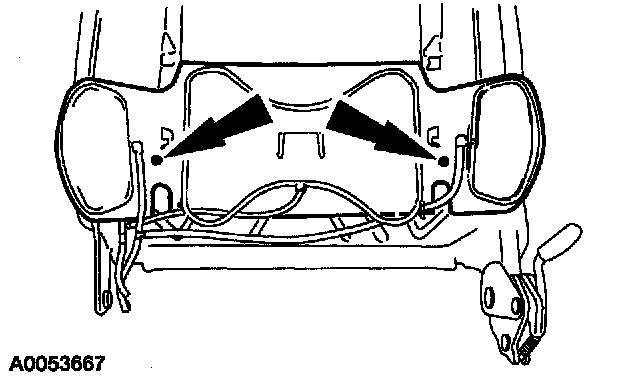

12. Remove the two screws and the seat backrest lumbar and bolster adjuster pad.

ASSEMBLY

All vehicles
1. To assemble, reverse the disassembly procedure.
