Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

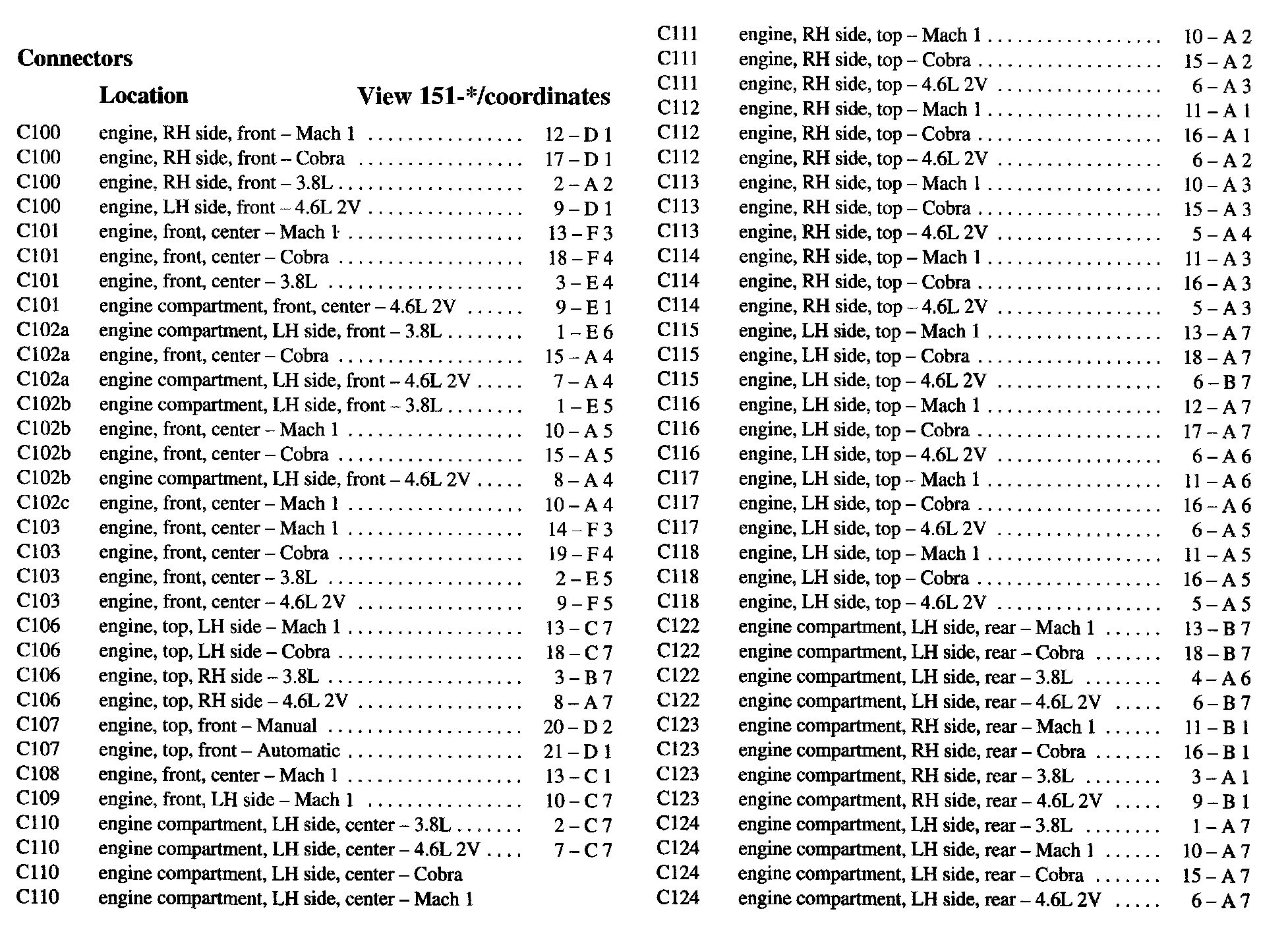

C100 - C124:

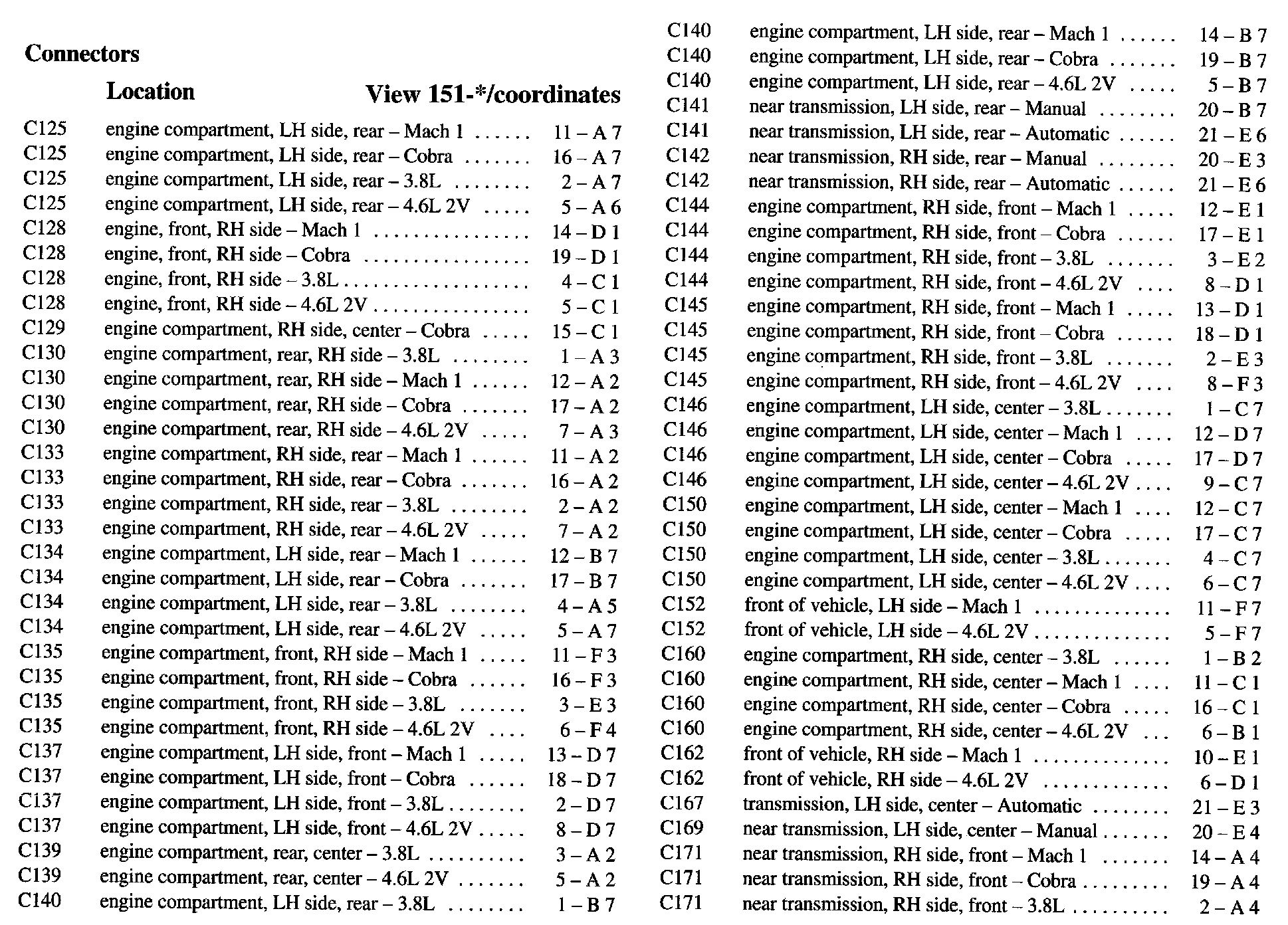

C125 - C171:

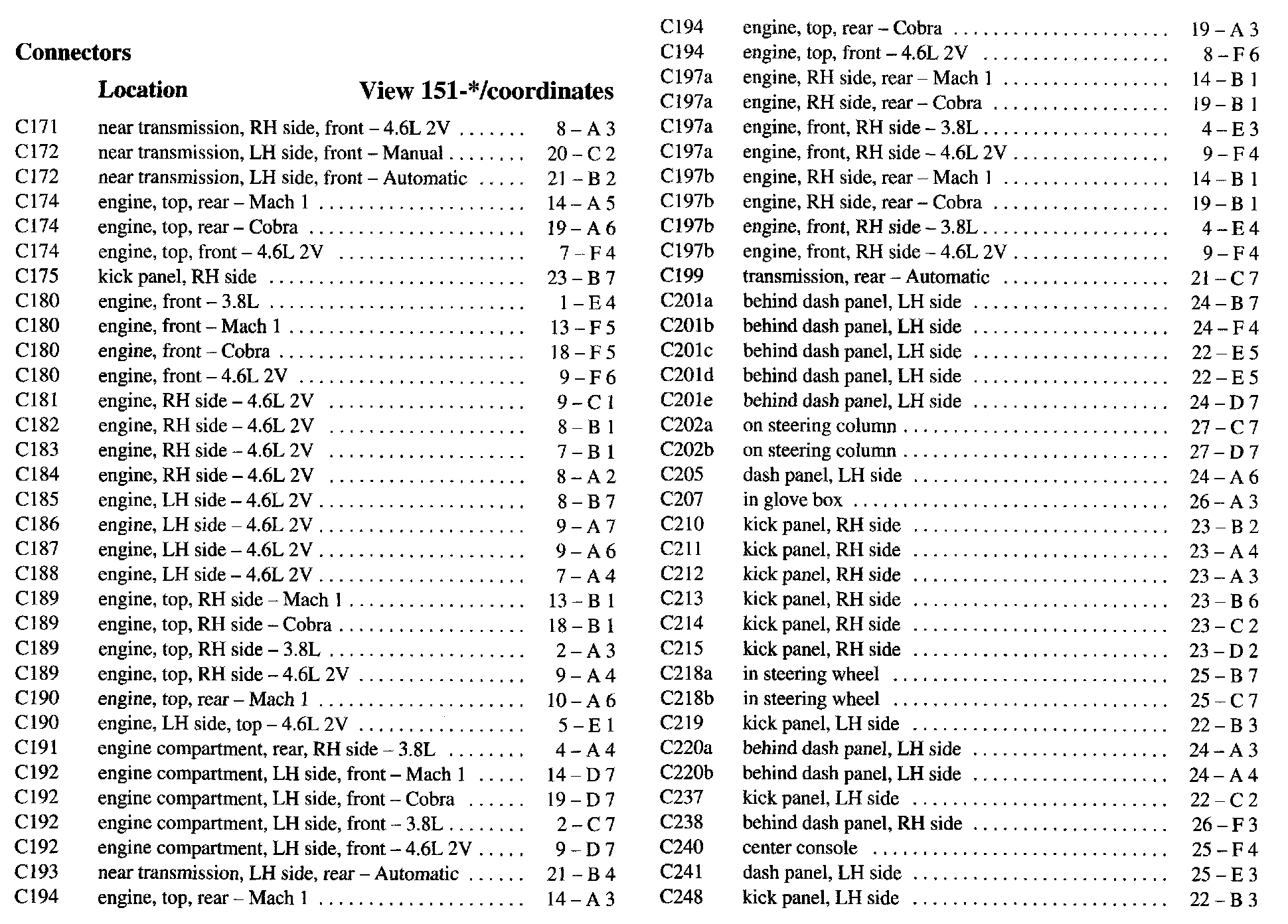

C171 - C248:

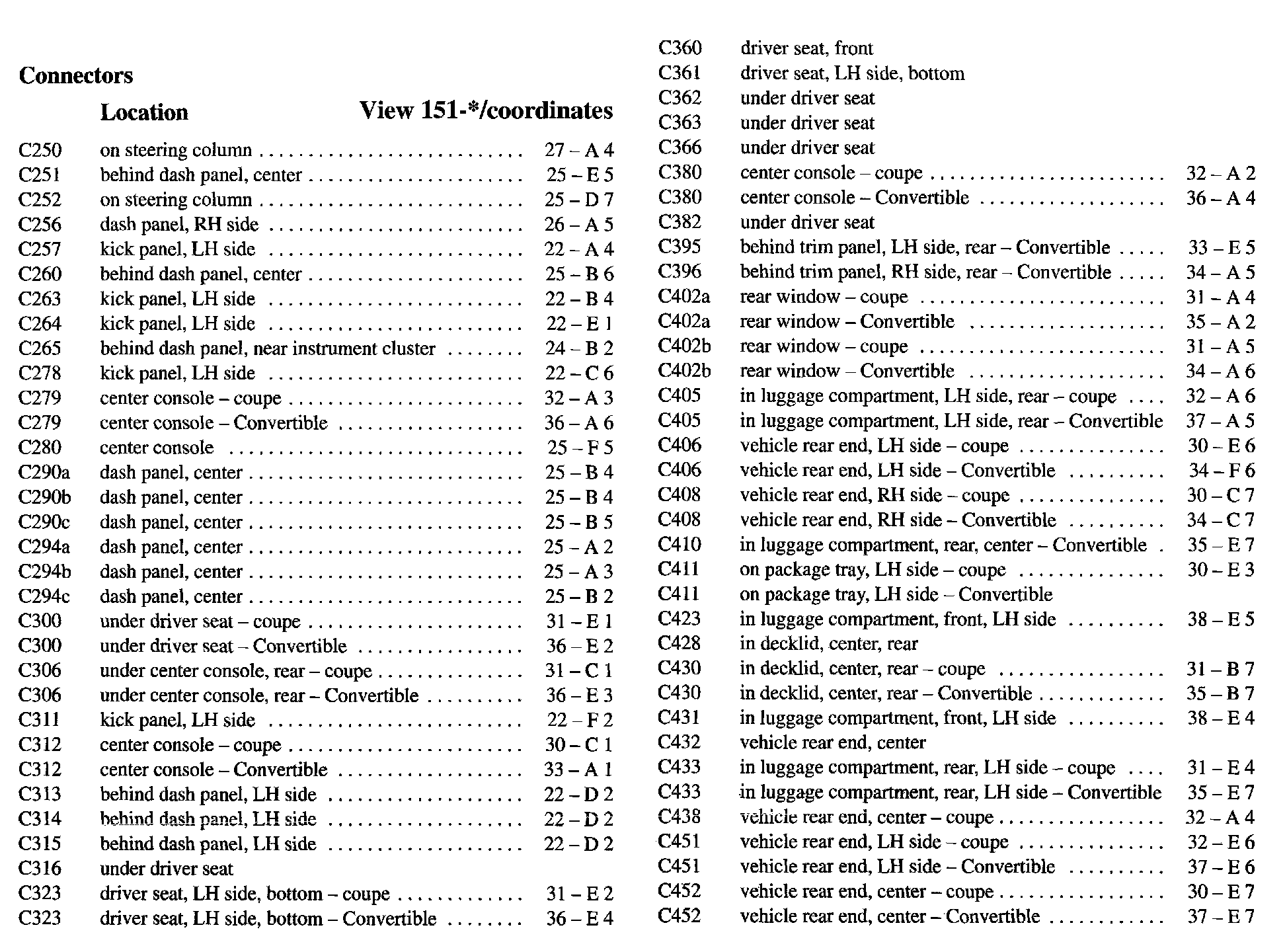

C250 - C452:

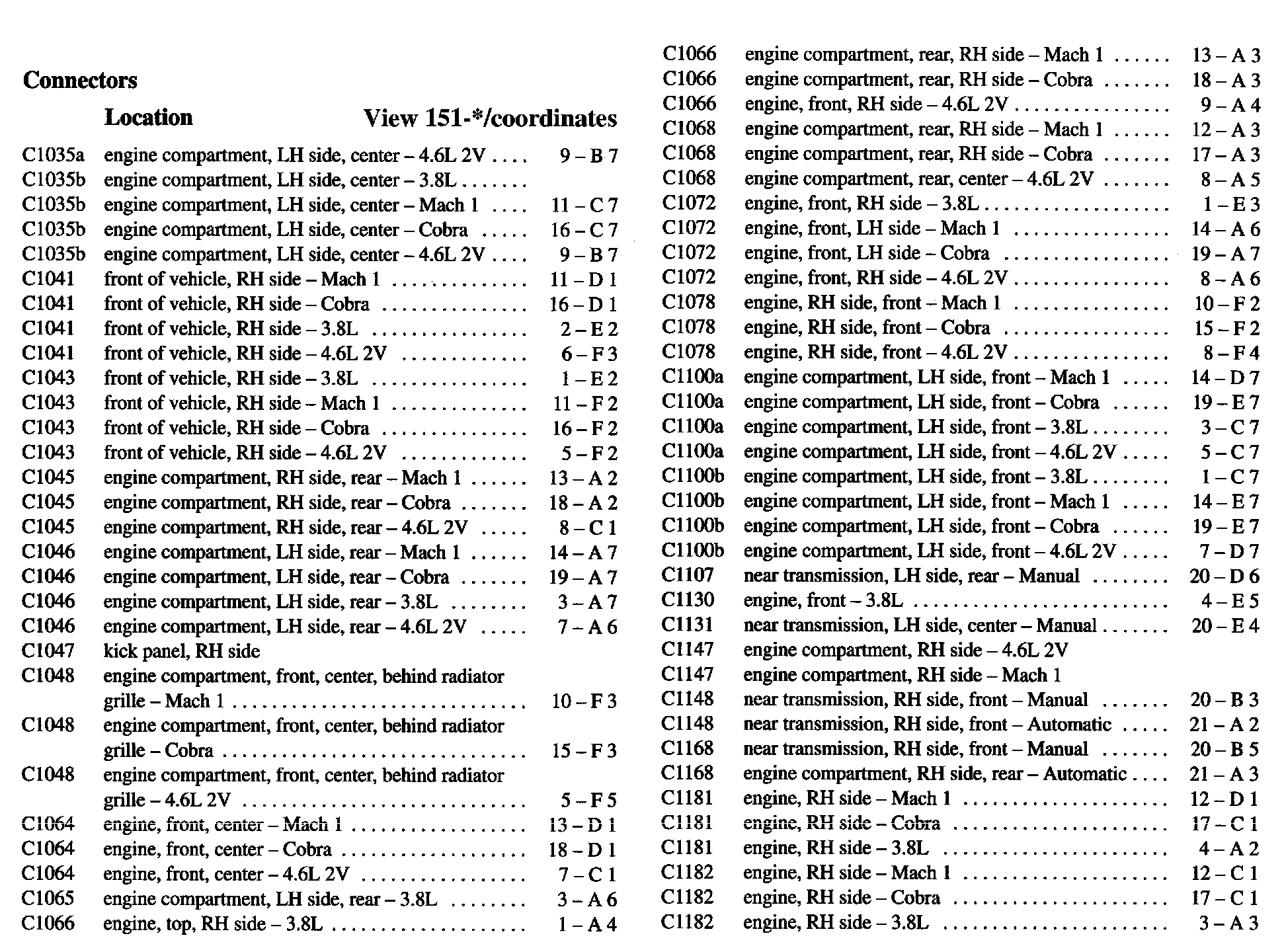

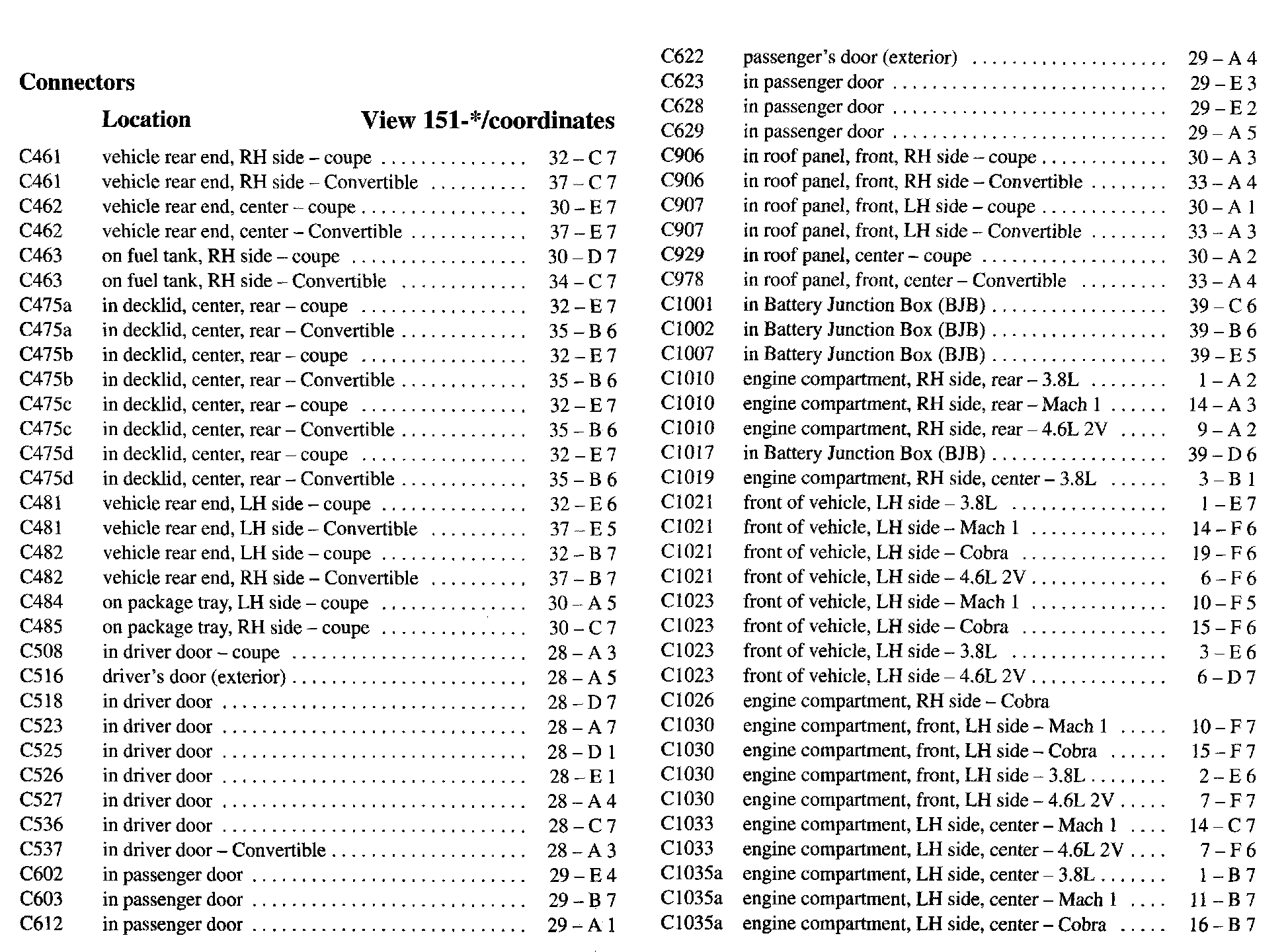

C461 - C1035a:
C1035a - C1182:

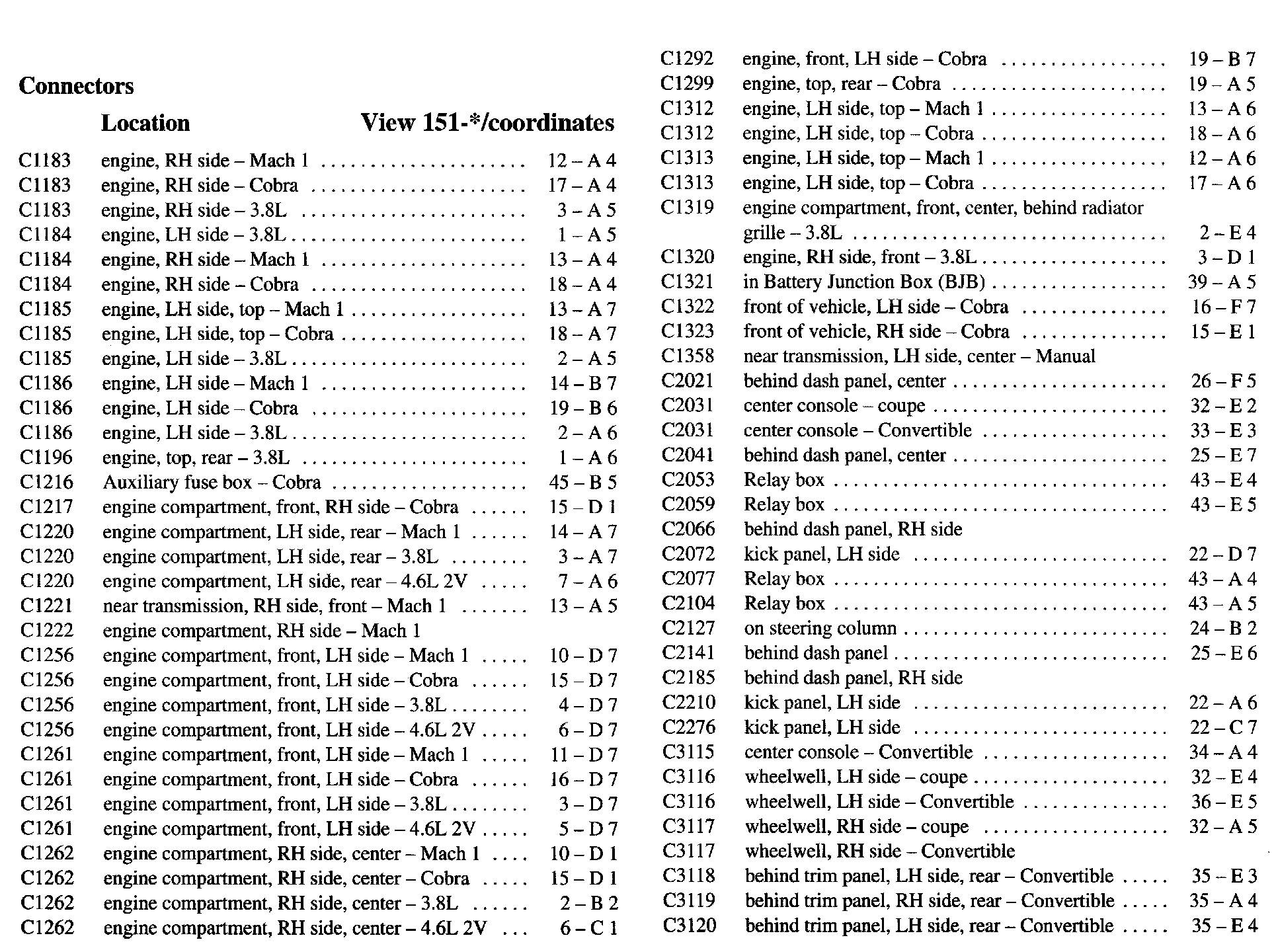

C1183 - C3120:
C3121 - C4199:
