Shift Interlock Cable: Service and Repair

Cable and Bracket

Removal
1. Raise the vehicle on a hoist.

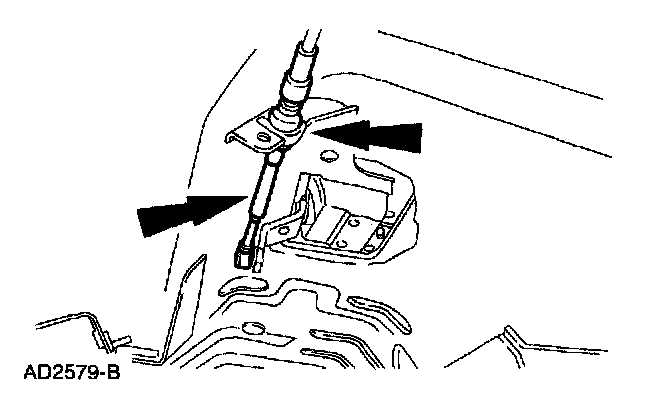

2. Remove the cable shift from the shifter lever and bracket and discard the clip.

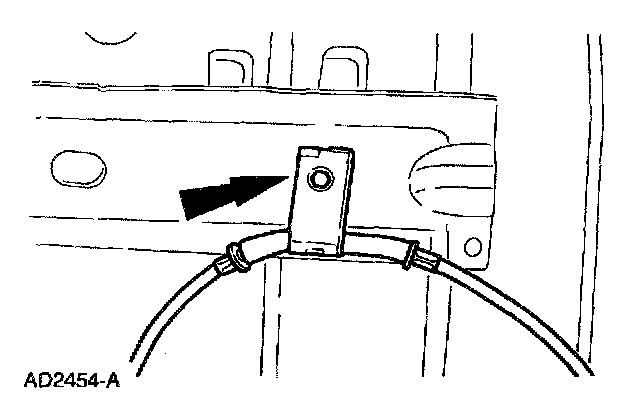

3. Remove the bolt from the cable.





4. Remove the bolt from the cable.

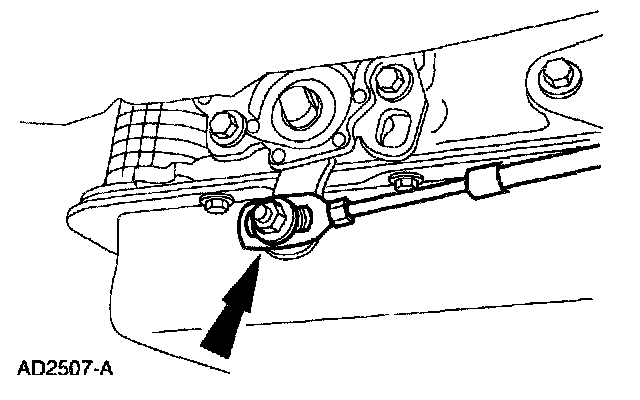

5. Disconnect the transmission range selector lever cable from the TR sensor lever.

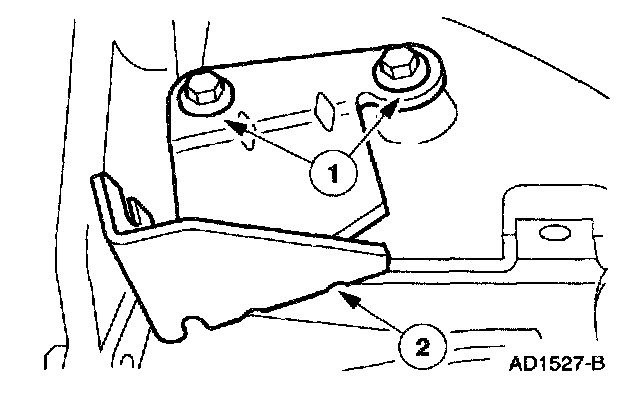

6. Remove the transmission shift cable bracket (7B229) from the transmission.
1 Remove the bolts.
2 Remove the bracket.

Installation





1. NOTE: It is necessary to install a new plastic clip prior to installation.

To install, reverse the removal procedure.
