Blower Motor: Service and Repair

REMOVAL

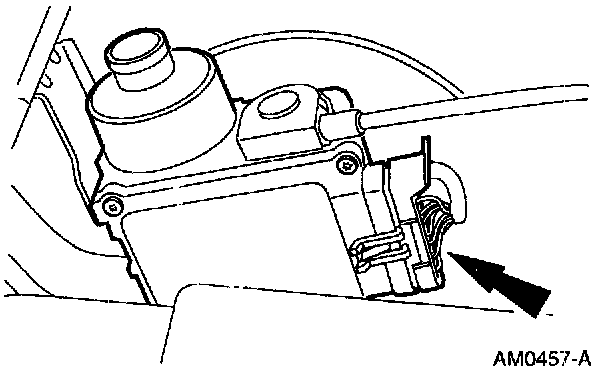

1. Disconnect the connector from the speed control servo.

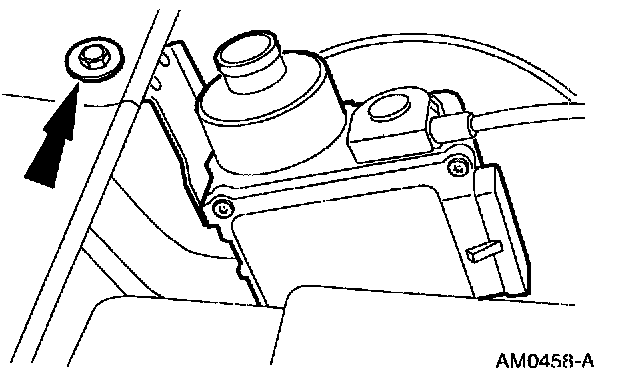

2. Remove the screw and reposition the speed control servo.

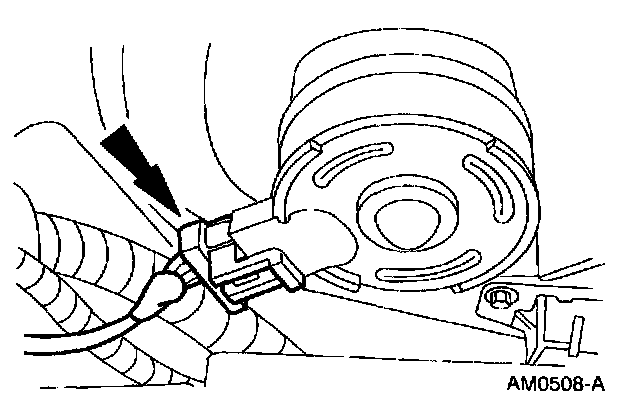

3. Disconnect the wire harness connector.







4. Remove the blower motor housing tube.

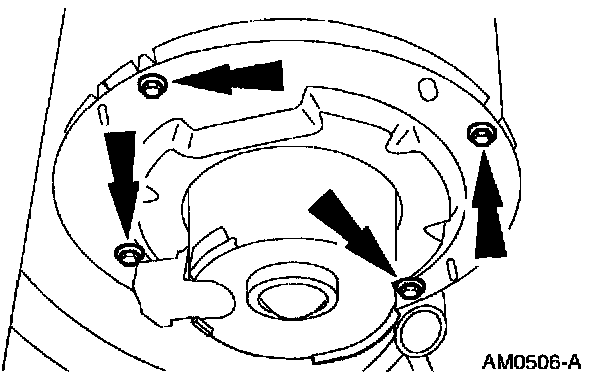

5. Remove the screws and the blower motor.

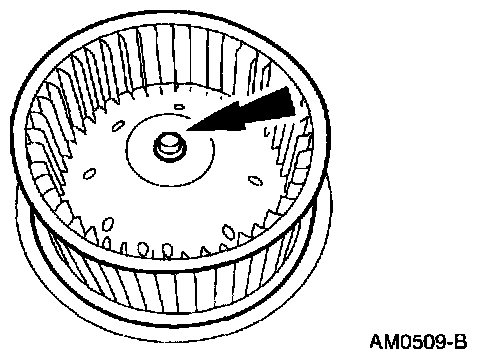

6. Remove the retaining clip and the blower motor wheel from the blower motor.

INSTALLATION







1. To install, reverse the removal procedure.
