Housing Assembly HVAC: Service and Repair

REMOVAL
1. Remove the instrument panel. Refer to: Body and Frame, Interior Trim, Dashboard/Instrument Panel, Service and Repair, Service and Repair

2. Drain the radiator.

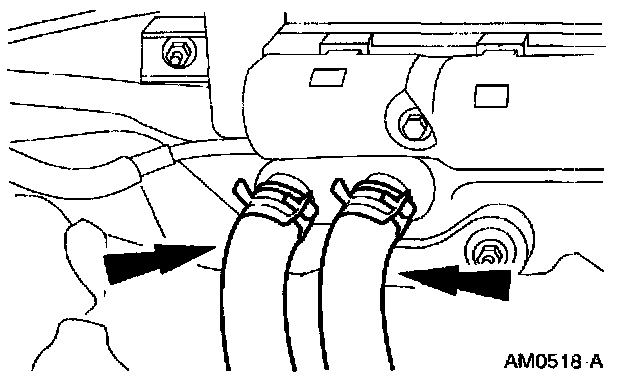

3. Disconnect the heater hoses from the heater core.







4. Remove the evaporator core housing.

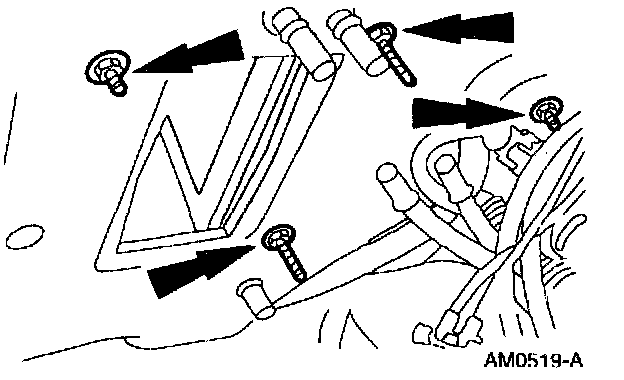

5. Remove the nuts and remove the plenum chamber.

INSTALLATION

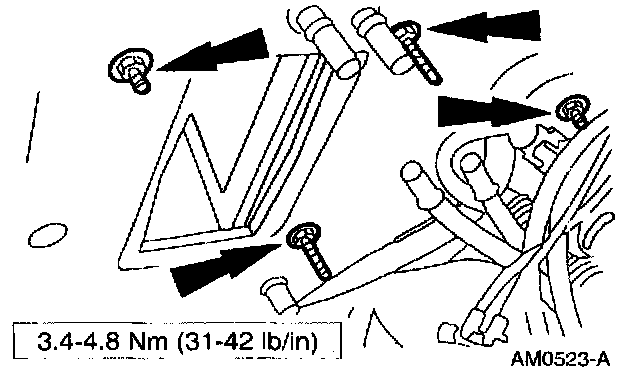

1. To install, reverse the removal procedure.
- Lubricate the coolant hoses with MERPOL(R) or plain water only, if needed.
