Drive Belt: Service and Repair

Accessory Drive Belt -2.31

Removal and Installation

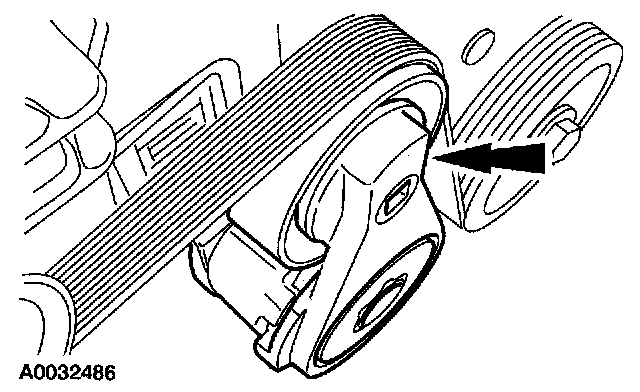

1. Rotate the belt tensioner counterclockwise and remove the drive belt.

2. NOTE: Refer to the correct drive belt routing.

To install, reverse the removal procedure.
