Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

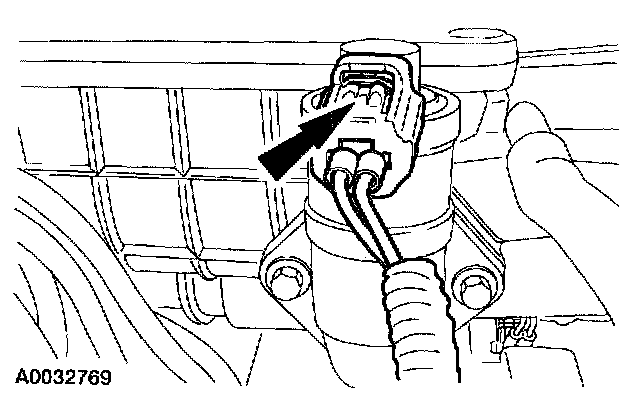

2. Disconnect the Idle Air Control (IAC) valve electrical connector.

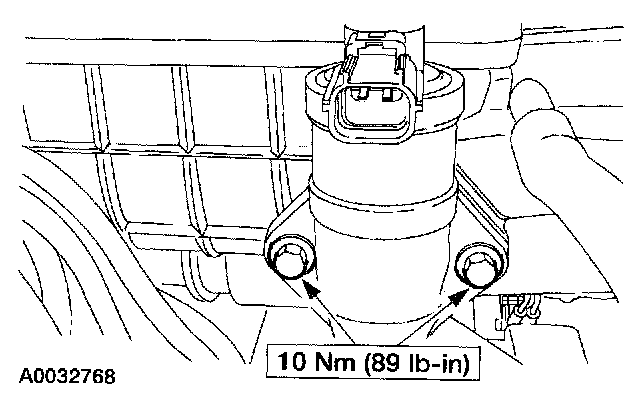

3. Remove the bolts and the IAC valve and the gasket. Discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use a new gasket.

NOTE: Install a new IAC gasket.
