EGR Tube: Service and Repair

REMOVAL
1. Remove the intake manifold.

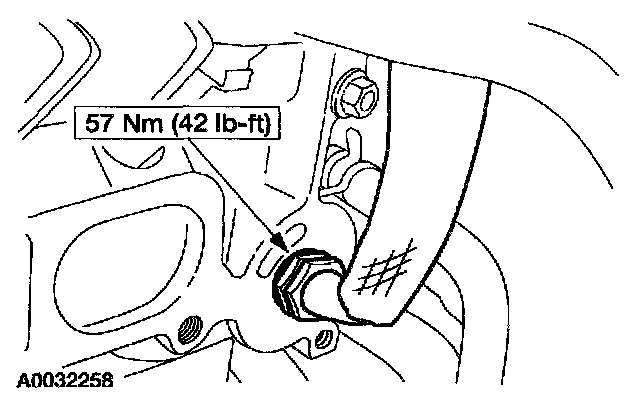

2. Remove the Exhaust Gas Recirculation (EGR) tube.

INSTALLATION
1. To install, reverse the removal procedure.
