Variable Induction Control Valve: Service and Repair

Intake Manifold Swirl Control (IMSC) System

Removal

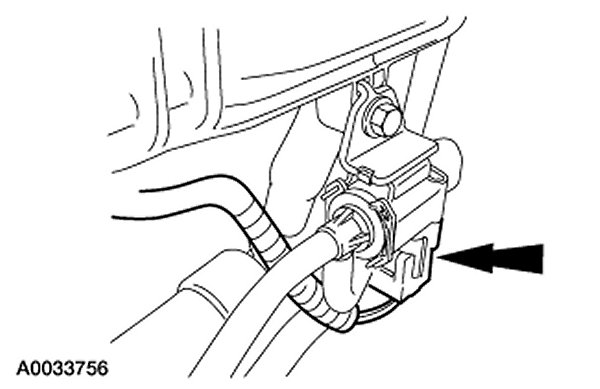

1. Disconnect the swirl control valve electrical connector.

2. Remove the swirl control solenoid valve.

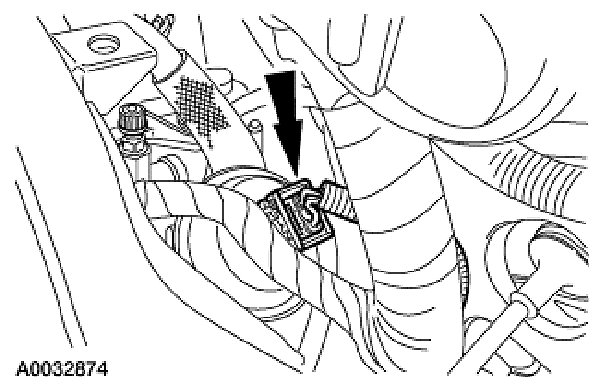

3. Disconnect the swirl control valve monitor electrical connector.

4. Remove the swirl control monitor.











Installation

1. Connect the swirl control valve electrical connector.

2. Install the swirl control solenoid valve.

3. Connect the swirl control valve monitor electrical connector.

4. Install the swirl control monitor.
