Flywheel

Flywheel or Flexplate

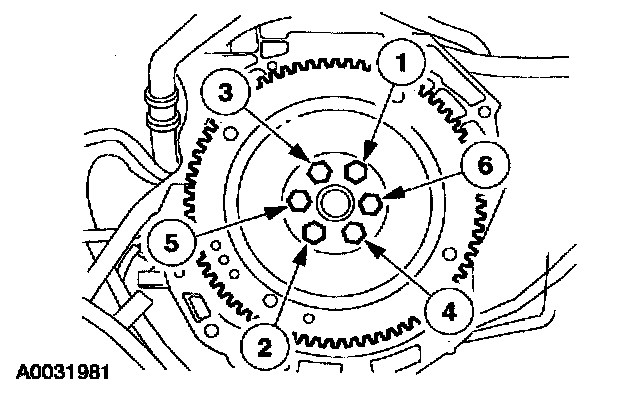

Tighten the bolts in the sequence shown in three stages.
^ Stage 1: Tighten to 50 Nm (37 ft. lbs.).
^ Stage 2: Tighten to 80 Nm (50 ft. lbs.).
^ Stage 3: Tighten to 112 Nm (83 ft. lbs.).
