Alternator: Service and Repair

REMOVAL
1. Disconnect the battery.
2. Remove the air cleaner outlet tube.
3. Remove the accessory drive belt.

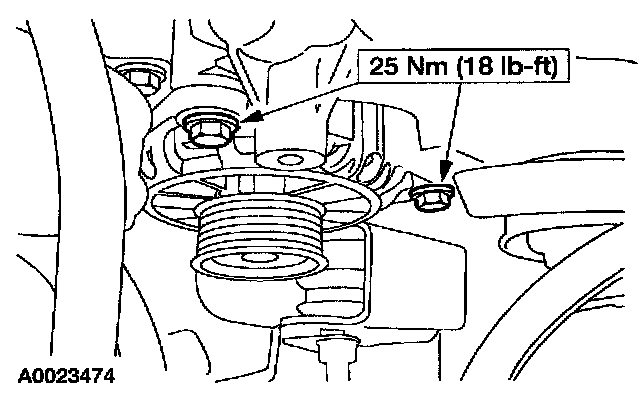

4. Remove the bolts and position the generator aside.







5. Remove the generator.

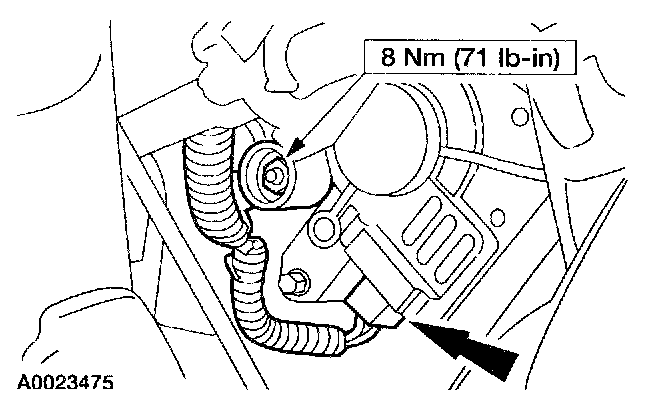

^ Remove the nut and disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
