Reverse Idler Gear
Reverse Idler GearDisassembly

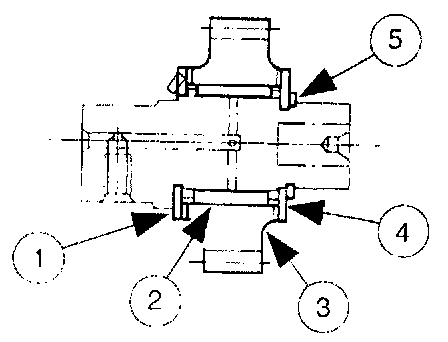

1. Disassemble the reverse idler gear.
1 Remove the reverse idler gear retaining ring.
2 Remove the spacer.
3 Remove the reverse idler gear.
4 Remove the reverse idler gear bearing.
5 Remove the reverse idler gear thrust washer.
Assembly
1. Assemble the reverse idler gear.
1 Install the reverse idler gear thrust washer.
2 Install the reverse idler gear bearing.
3 Install the reverse idler gear.
4 Install the spacer.
5 Install the reverse idler gear retaining ring.
2. Measure the reverse idler gear end play.
Reverse Idler Gear Retaining Rings
If end play is not within specification, install a retaining ring of correct thickness.
