Cruise Control Servo Cable: Service and Repair

REMOVAL

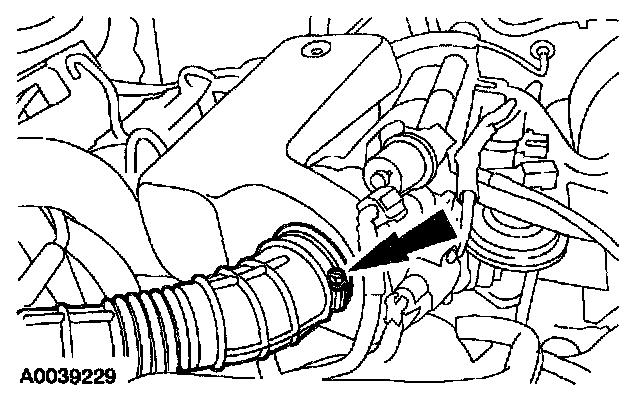

1. Disconnect the air cleaner outlet tube from the throttle body.

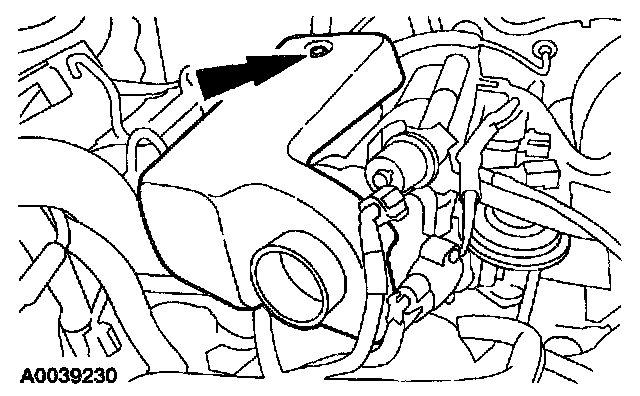

2. Remove the bolt and the accelerator control splash shield.

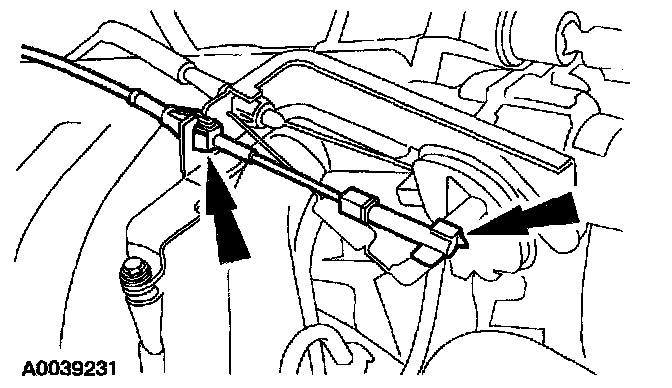

3. Disconnect the speed control cable and remove the cable from the bracket.







4. Remove the speed control cable cap from the speed control servo.
^ Push in the locking arm on the speed control cable cap then rotate the cap counterclockwise.







5. Remove the speed control cable.
1 Depress the spring retainer.
2 Slide the core wire end out of the speed control servo pulley and remove the speed control cable.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: Make sure the rubber seal is fully seated onto the speed control cable cap.
