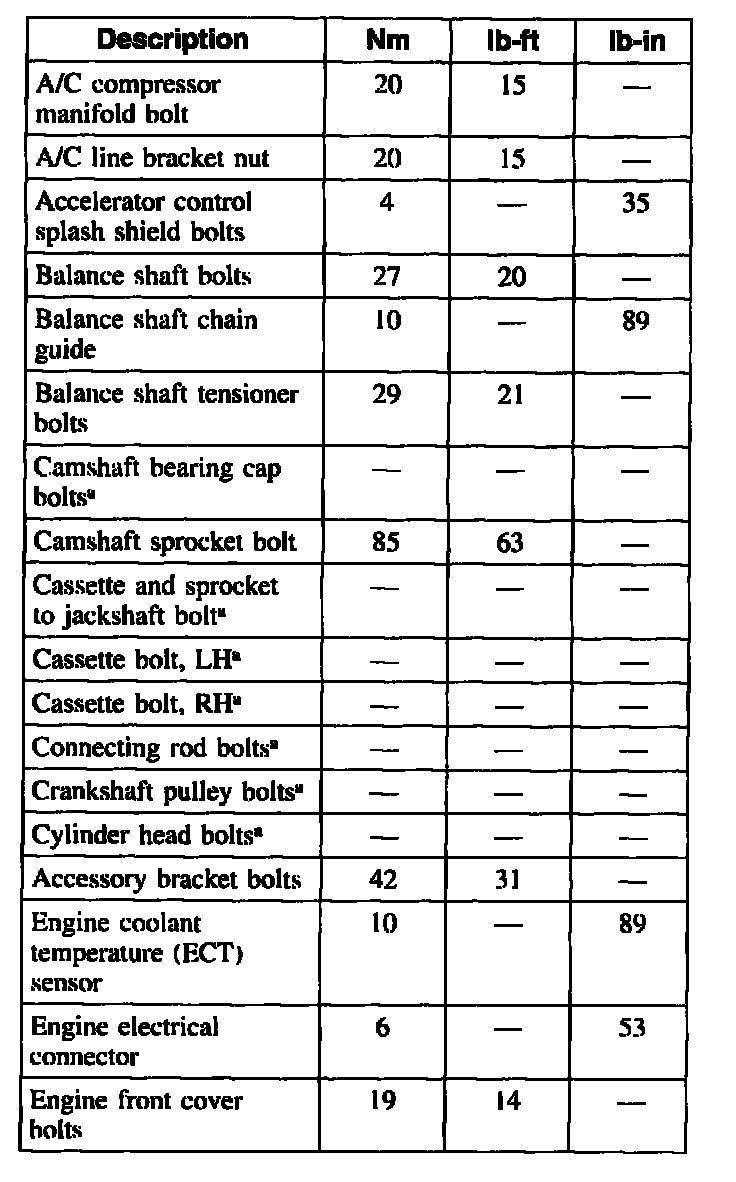

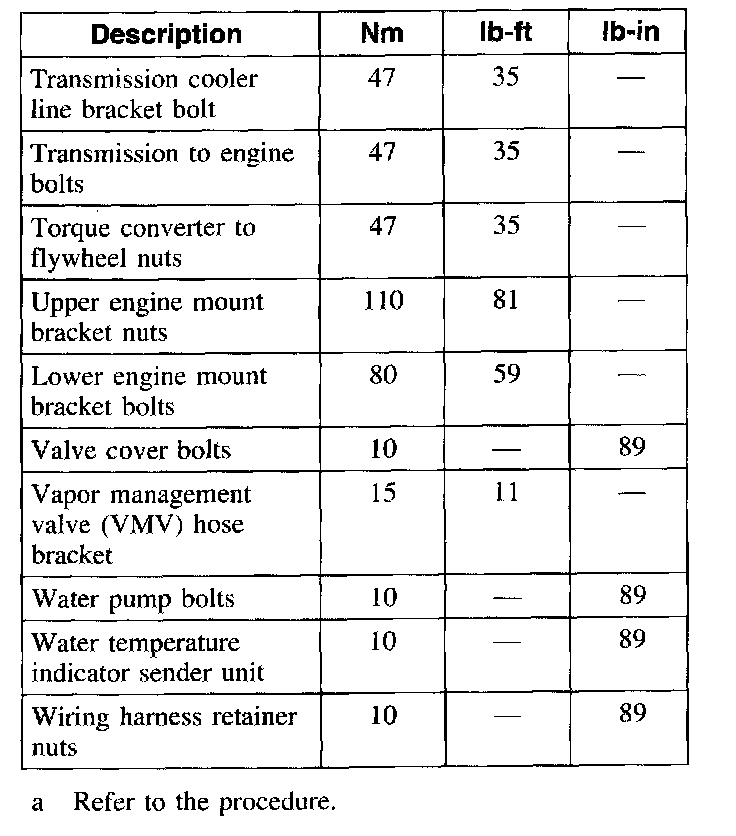

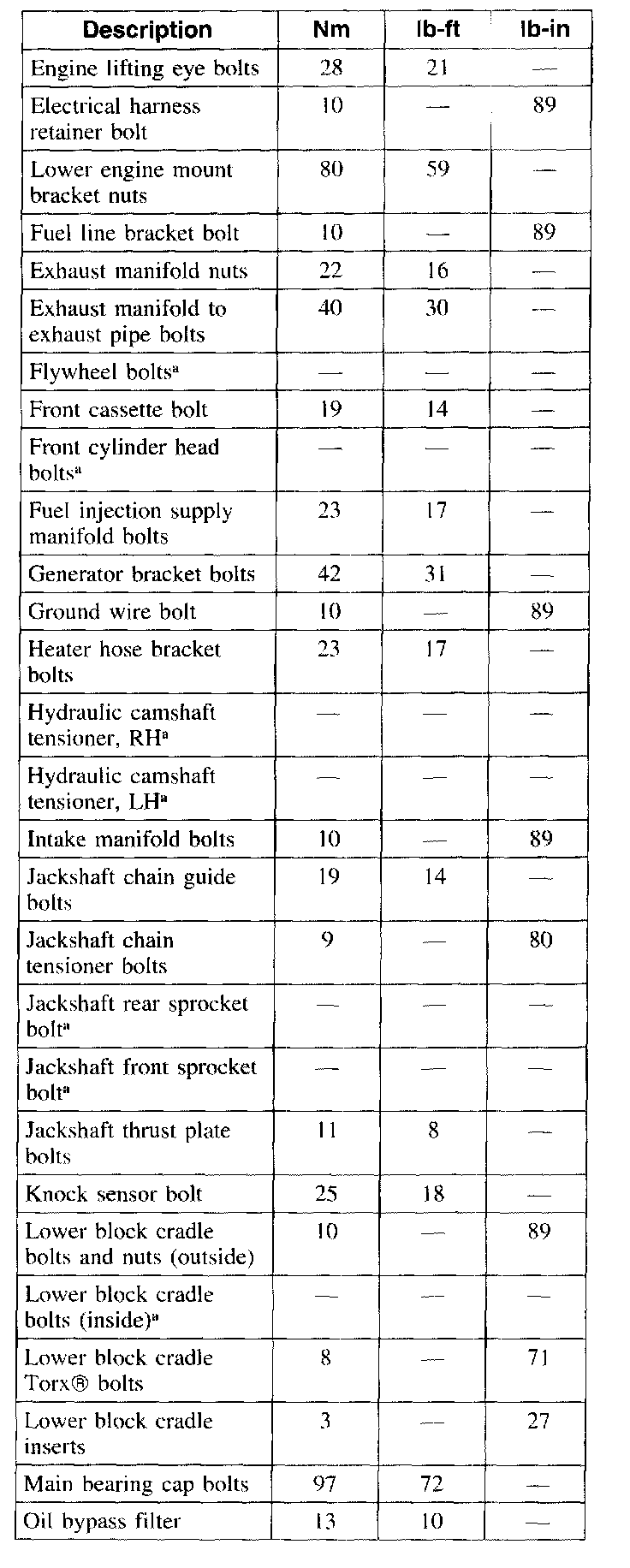

Torque Specifications

Torque Specifications















Crankshaft pulley bolt.
Stage 1 50 Nm (37 ft. lbs.)
Stage 2 additional 90°.








Camshaft bearing caps bolts.
Stage 1 6 Nm (53 inch lbs.)
Stage 2 16 Nm (12 ft. lbs.)

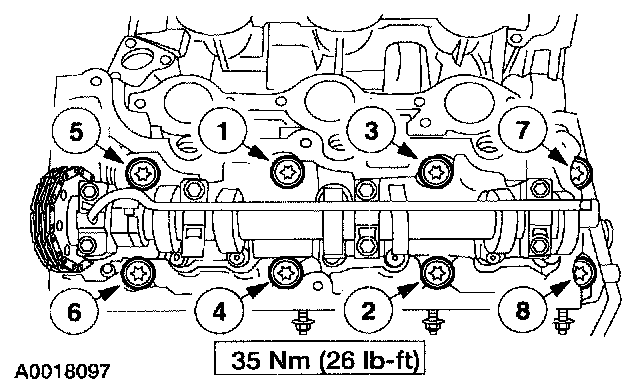

Cylinder head bolts - LH - 8 mm bolts.





NOTE: LH shown, RH similar.

LH:

RH:

NOTE: Cylinder head bolts are torque-to-yield. New bolts must be installed.

Cylinder head bolts - LH - 12 mm bolts.
Stage 1 80°
Stage 2 additional 80°





Flexplate bolts.
Stage 1 13 Nm (10 ft. lbs.)
Stage 2 71 Nm (52 ft. lbs.)





Flywheel bolts.
Stage 1 13 Nm (10 ft. lbs.)
Stage 2 71 Nm (52 ft. lbs.)





Main bearing cap bolts 97 Nm (72 ft. lbs.)
