System Specifications

Engine front cover bolts 19 Nm (14 ft. lbs.)
Camshaft sprocket bolt 85 Nm (63 ft. lbs.)
Camshaft Tensioner 44 Nm (32 ft. lbs.)

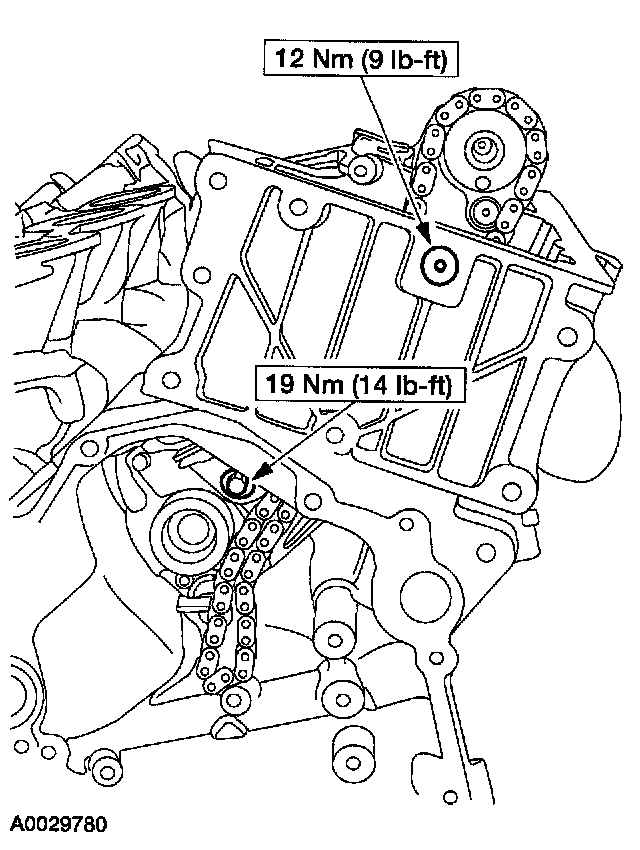

New Chain Guide Bolts
Primary Drive Chain Tensioner 9 Nm (80 inch lbs.)
Jackshaft sprocket bolt.
Stage 1 45 Nm (33 ft. lbs.)
Stage 2 additional 90°
