Door Ajar Switch
Door Ajar Switch
DOOR AJAR SWITCH
REMOVAL
1.
Remove the front door latch.
2.

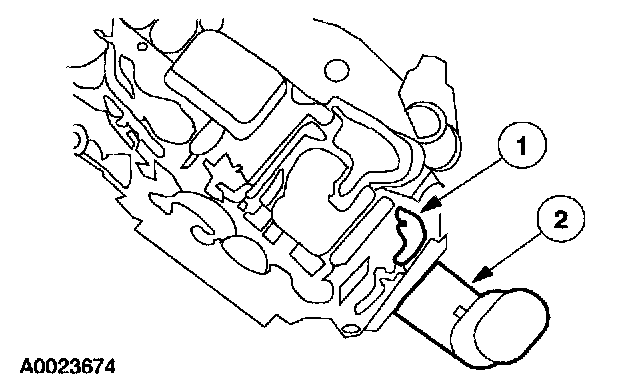

Remove the door ajar switch.
1
Lift the locking tab.
2
Rotate and remove the door ajar switch.
INSTALLATION
1.
To install, reverse the removal procedure.
