Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2003 >> Taurus V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Splices

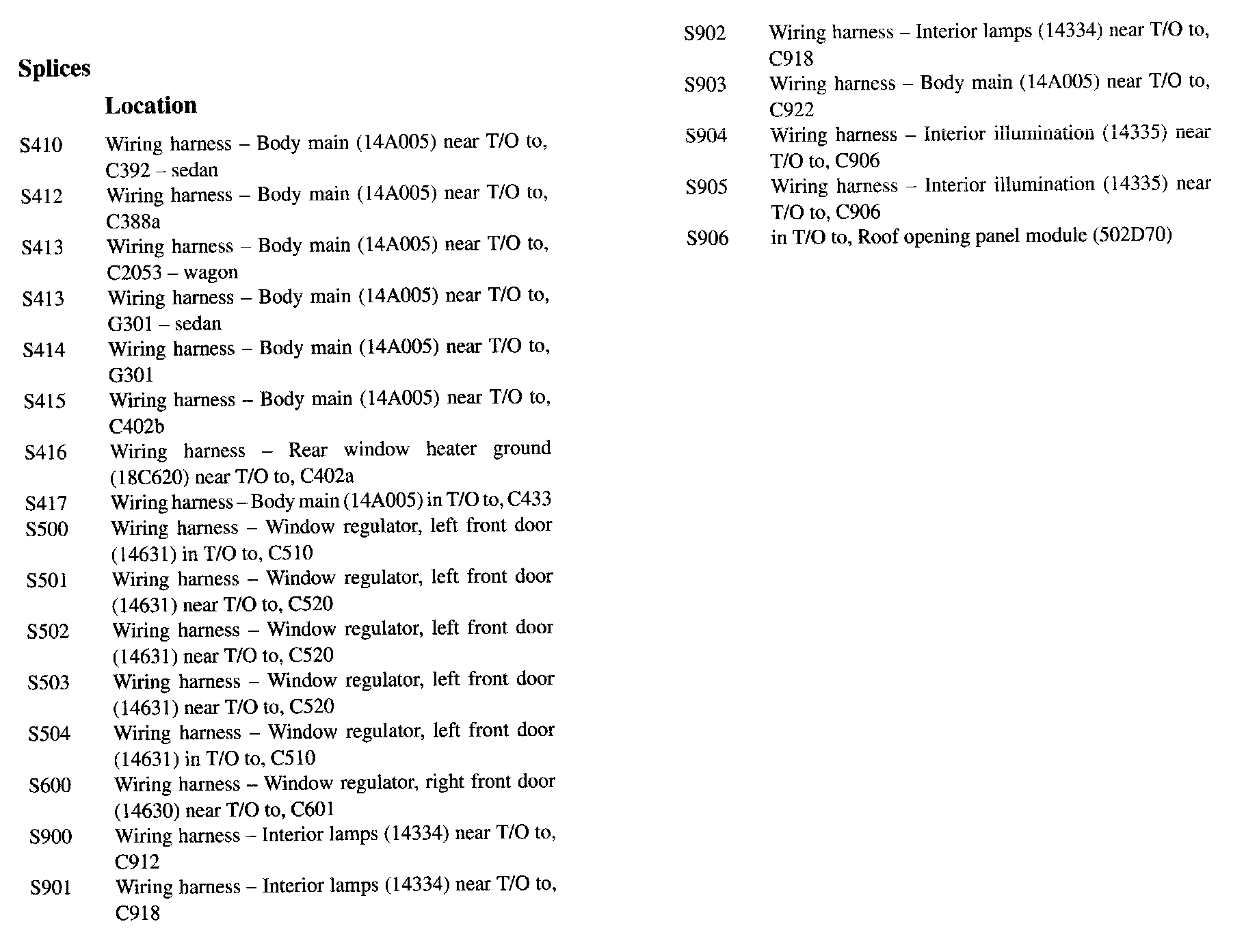

Splices

S100 - S138:






S139 - S307:






S308 - S410:






S410 - S906:
