Test B: DTC P0455/P1443 No Flow Detected In System

PINPOINT TEST B: DTC P0455 MAJOR LEAK OR NO FLOW DETECTED OR DTC P1443 VERY SMALL OR NO PURGE FLOW DETECTED IN SYSTEM

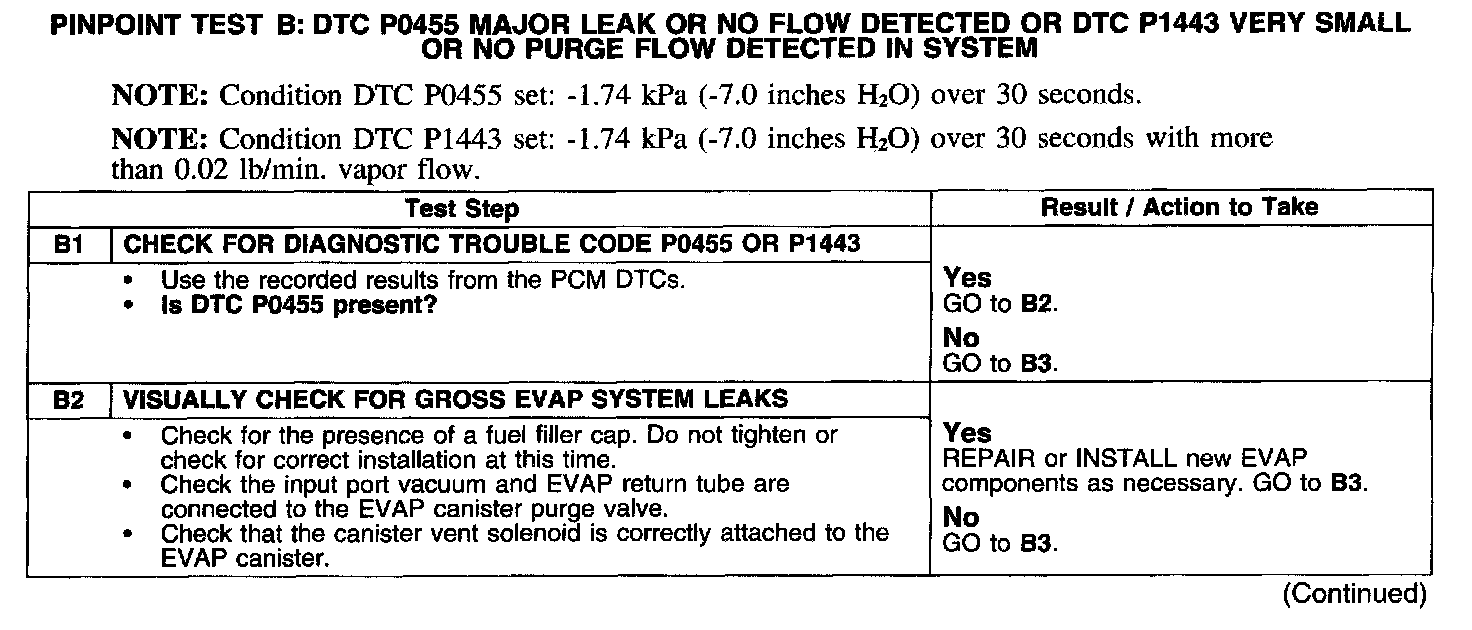

Test B1-B2:

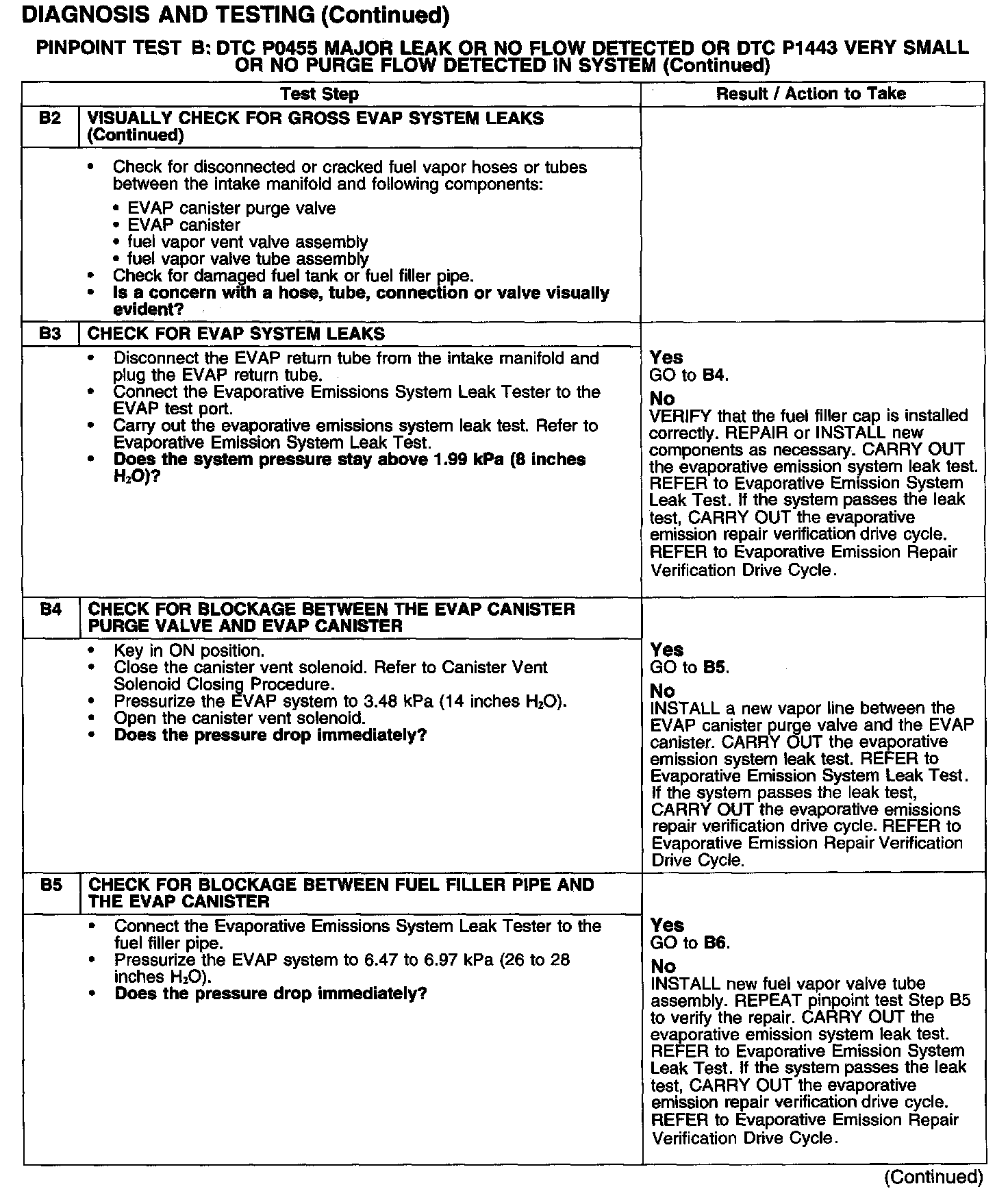

Test B2-B5:

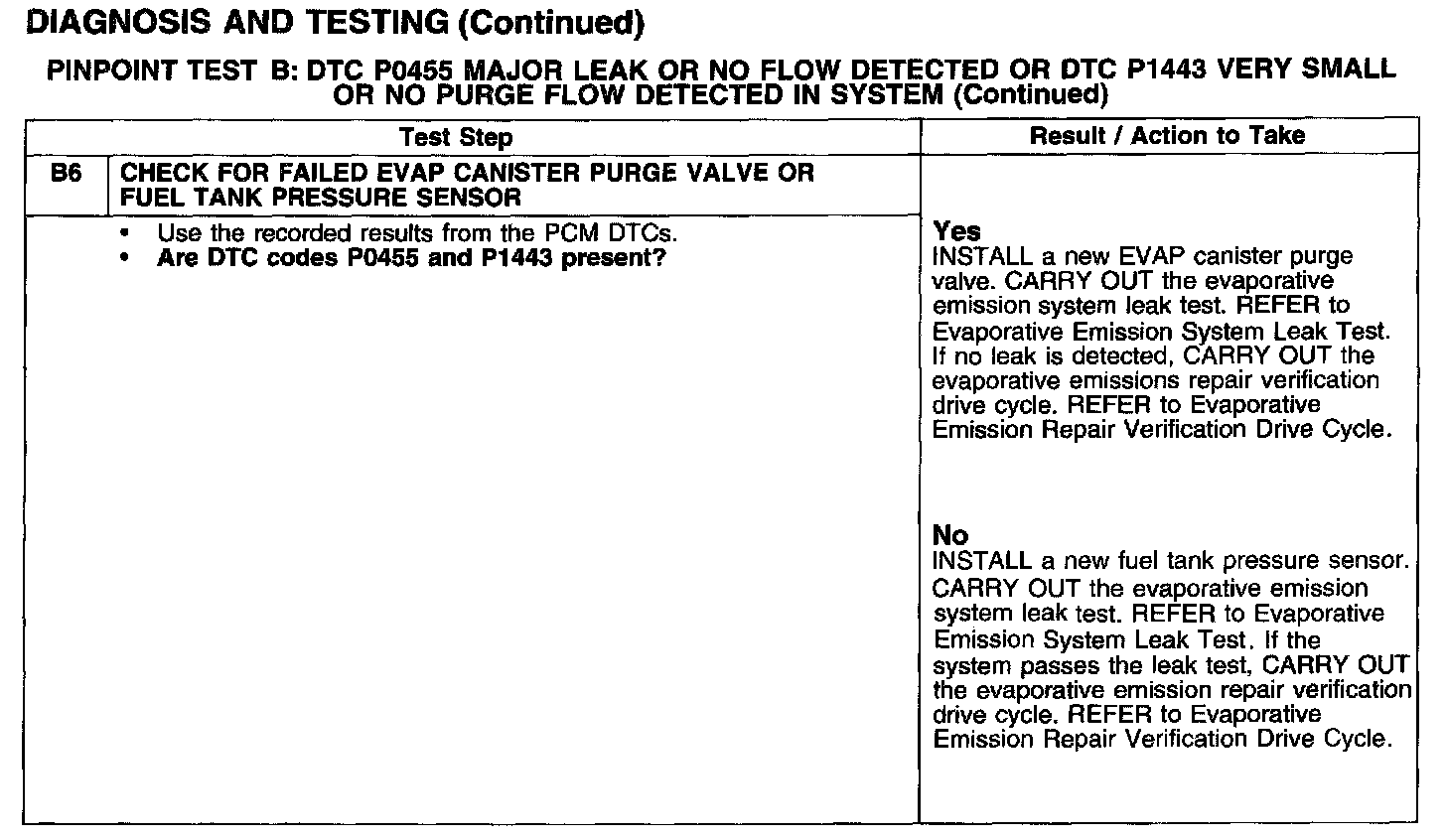

Test B6:
