Thunderbird V8-3.9L VIN A
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Seat Temperature Element
>>
Diagrams
>>
Connector Views
>>

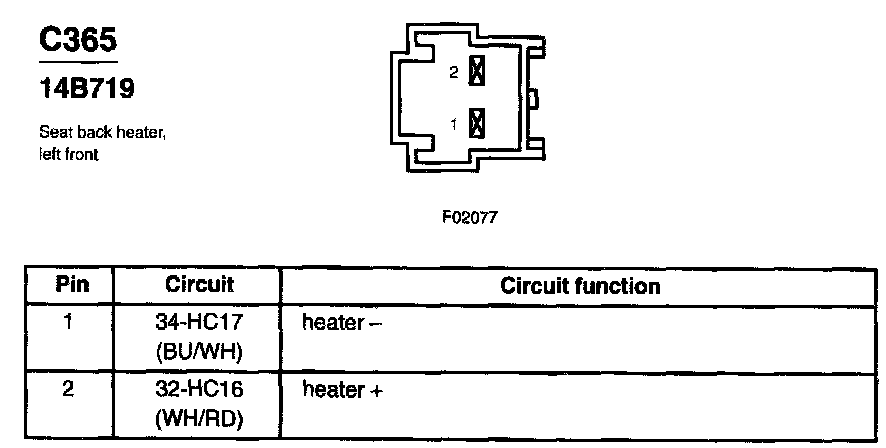

Seat Back Heater, Left Front
Seat Back Heater, Left Front
