Test G

PINPOINT TEST G: THE POWER SEAT DOES NOT MOVE HORIZONTALLY - PASSENGER

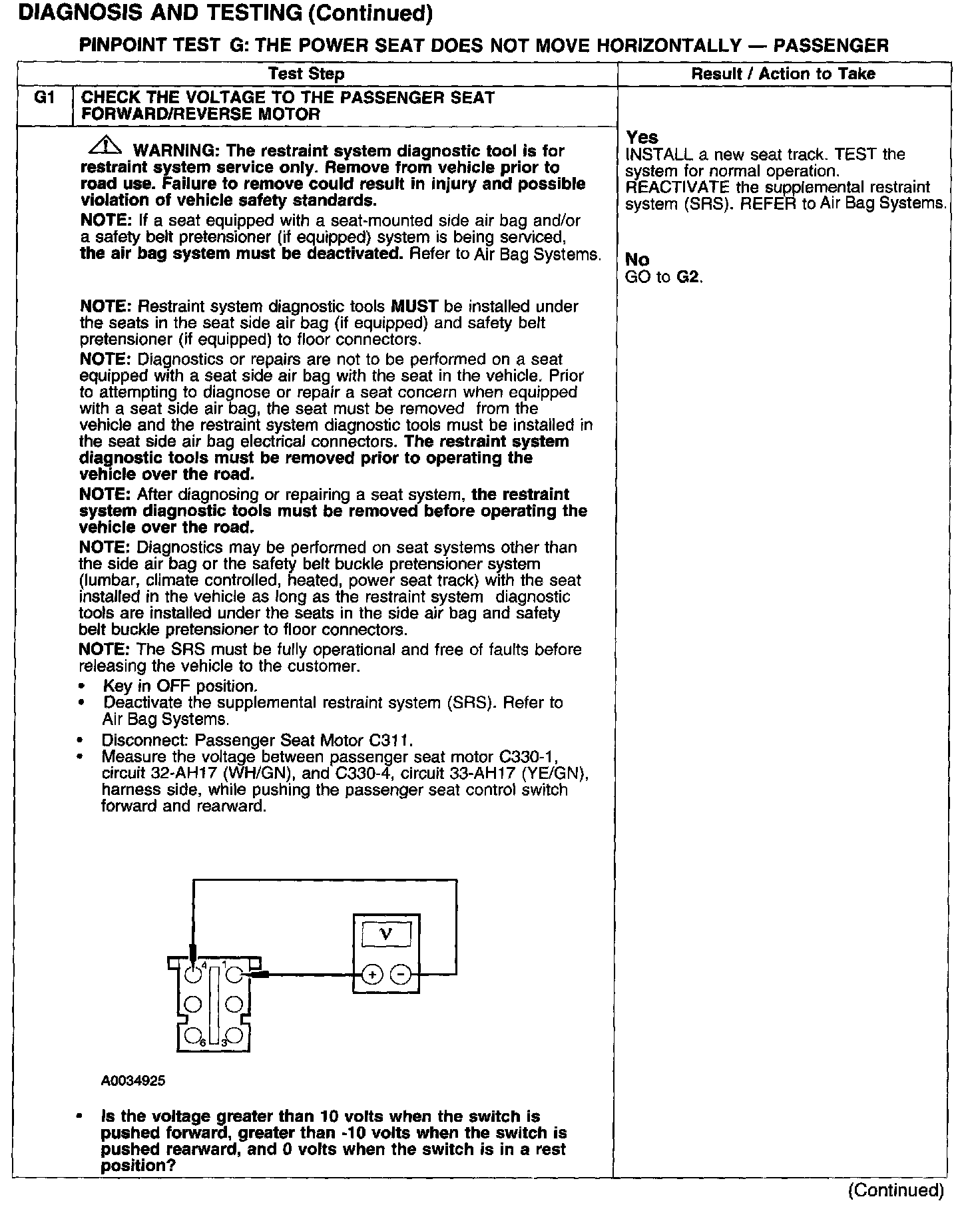

Test G1:

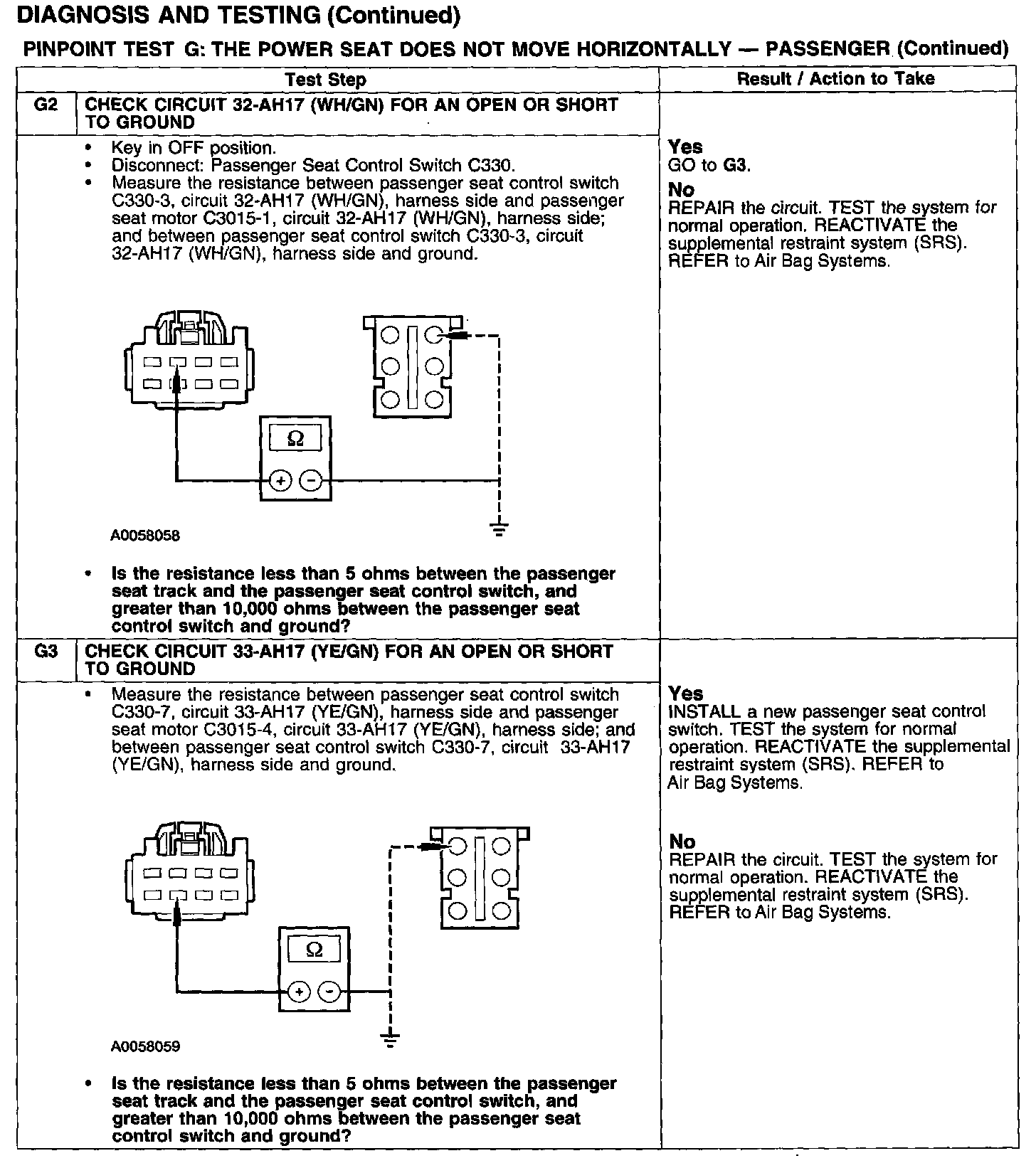

Test G2-G3:

Normal Operation
The power seat switch is powered by battery voltage on passenger circuit 30-AH14 (RD/YE) and is supplied grounds on circuit 31-AH6 (BK/YE) and circuit 31-AH1 (BK/YE). When pressed, the power seat switch supplies that voltage and ground to a power seat track motor to move the seat. When pressed in the opposite direction, the power seat switch reverses the polarity to that same power seat track motor, which moves the seat in the opposite direction. There is one power seat track motor that moves the seat horizontally (forward/reverse).

Possible Causes
A power seat that does not move horizontally can be caused by:
- wiring, terminals, or connectors.
- a faulty seat control switch.
- a faulty seat track motor.
