Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

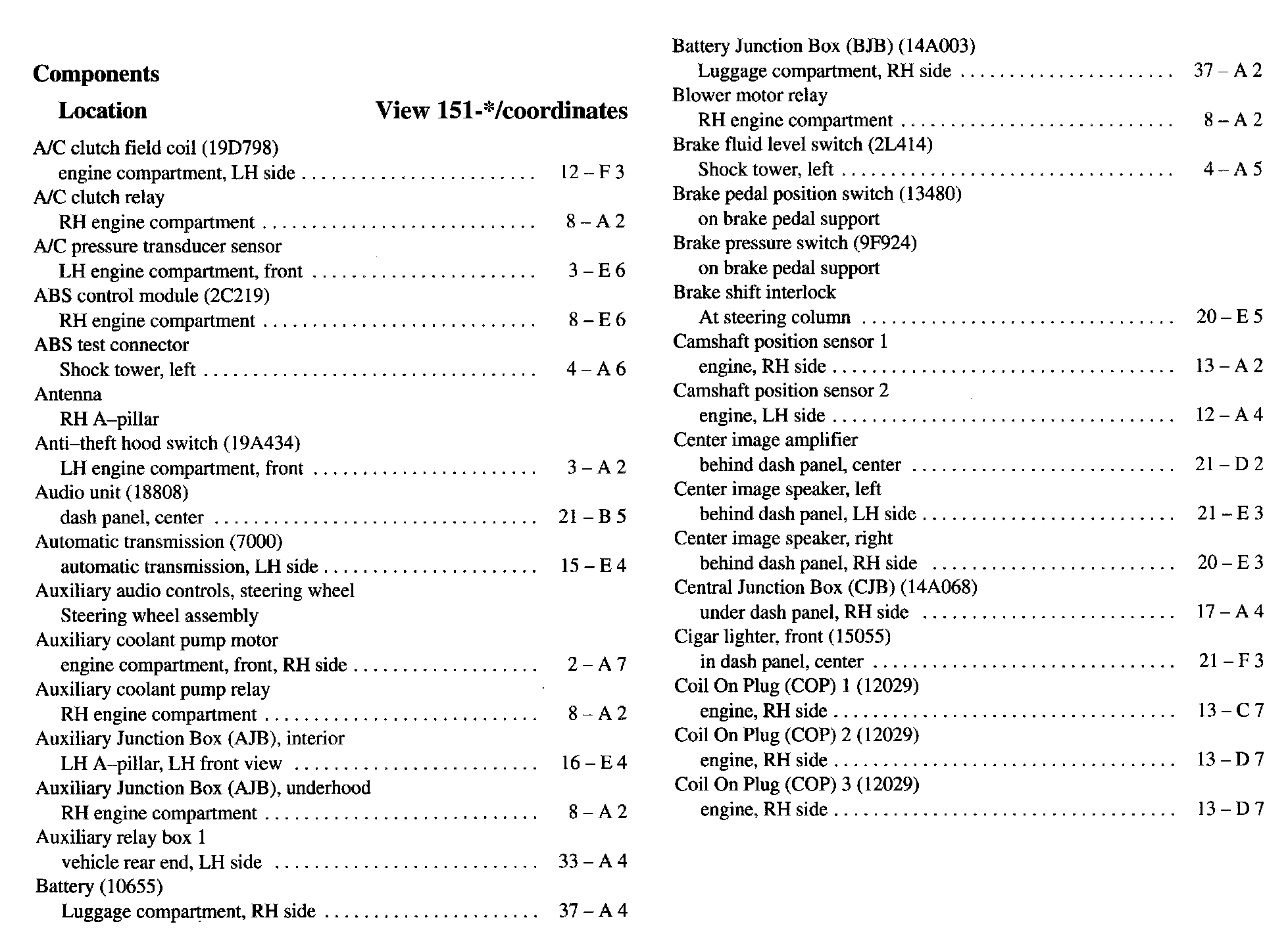

A/C - Co:

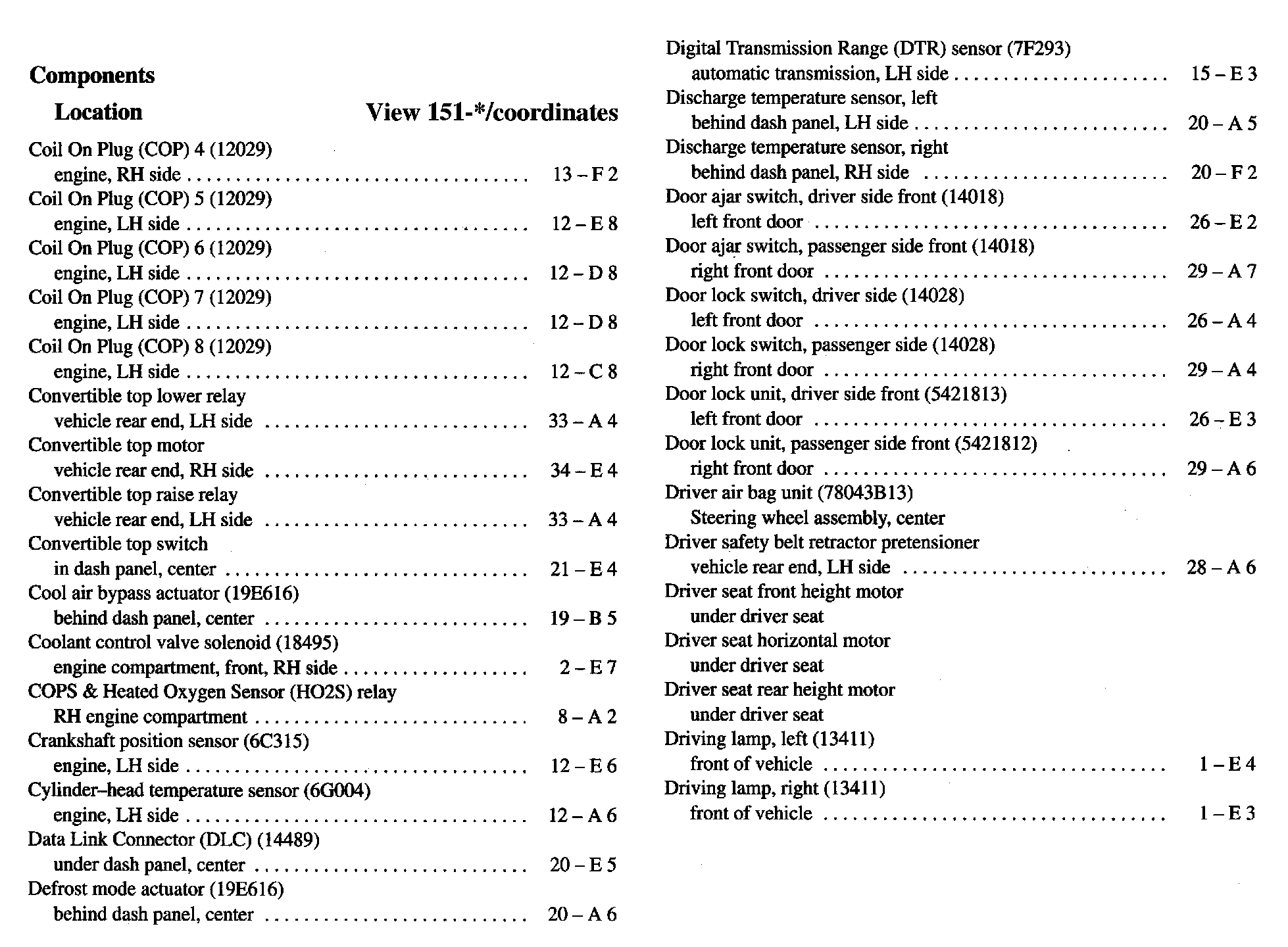

Co - Dr:

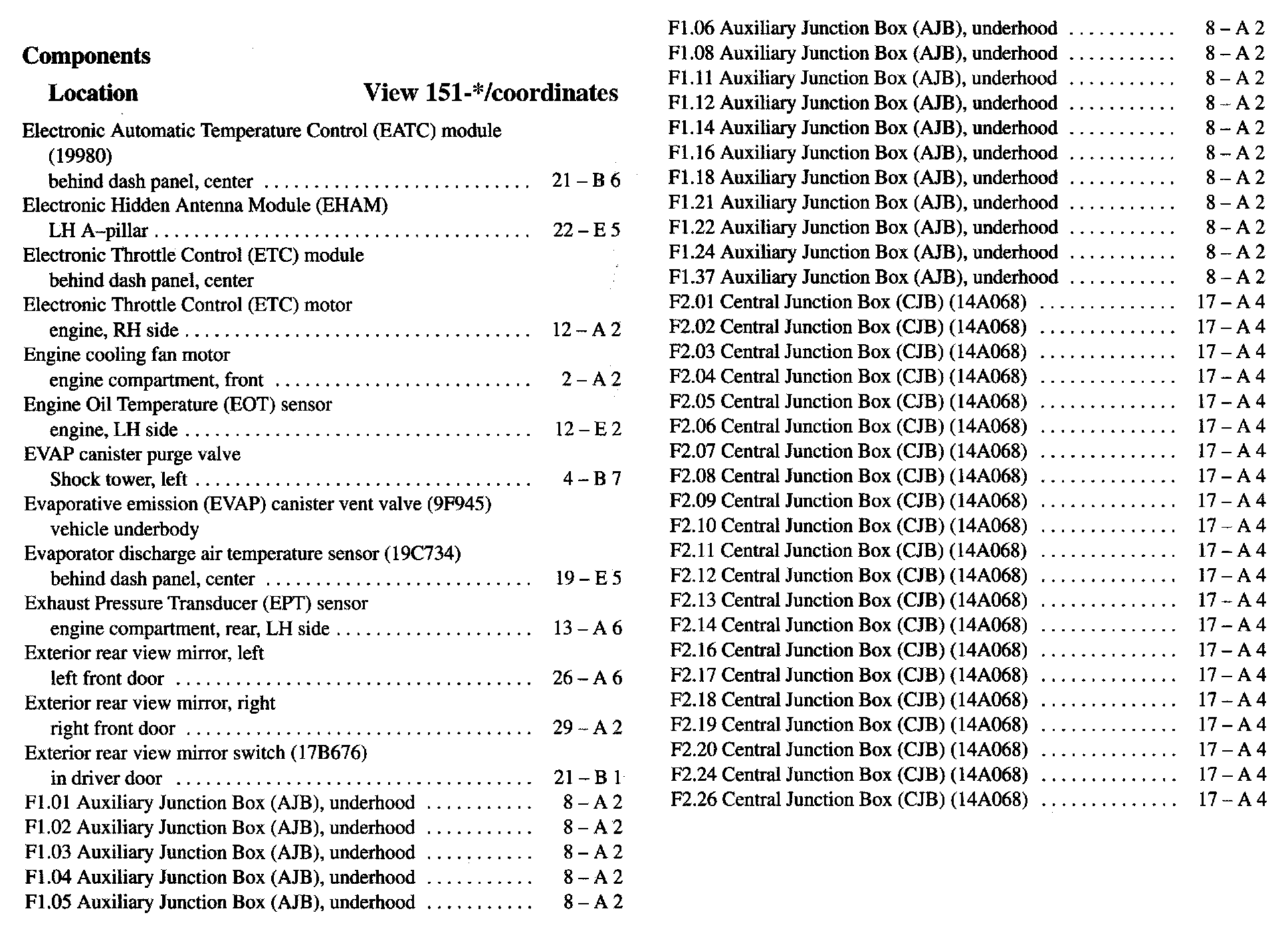

El - F2.26:

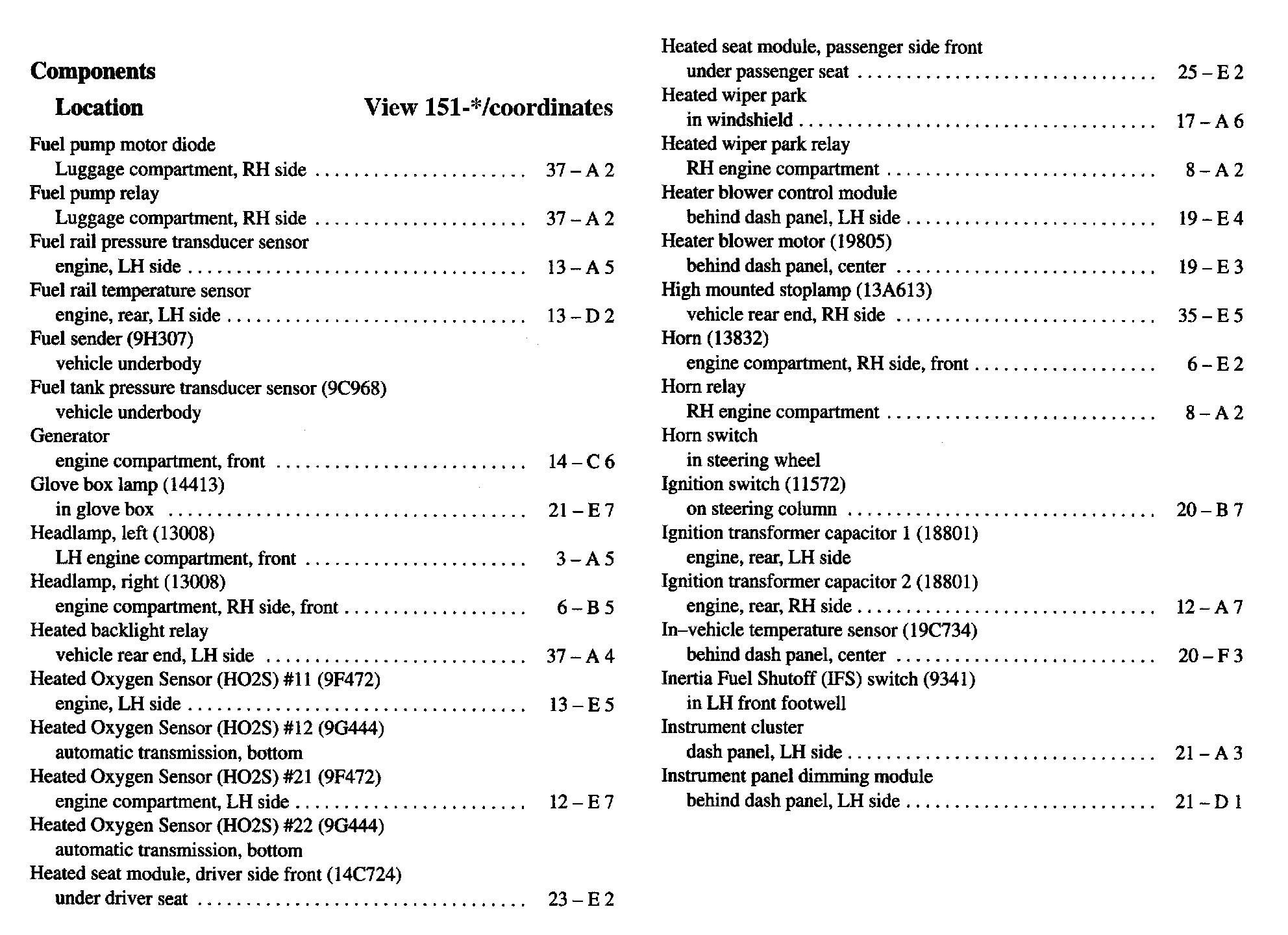

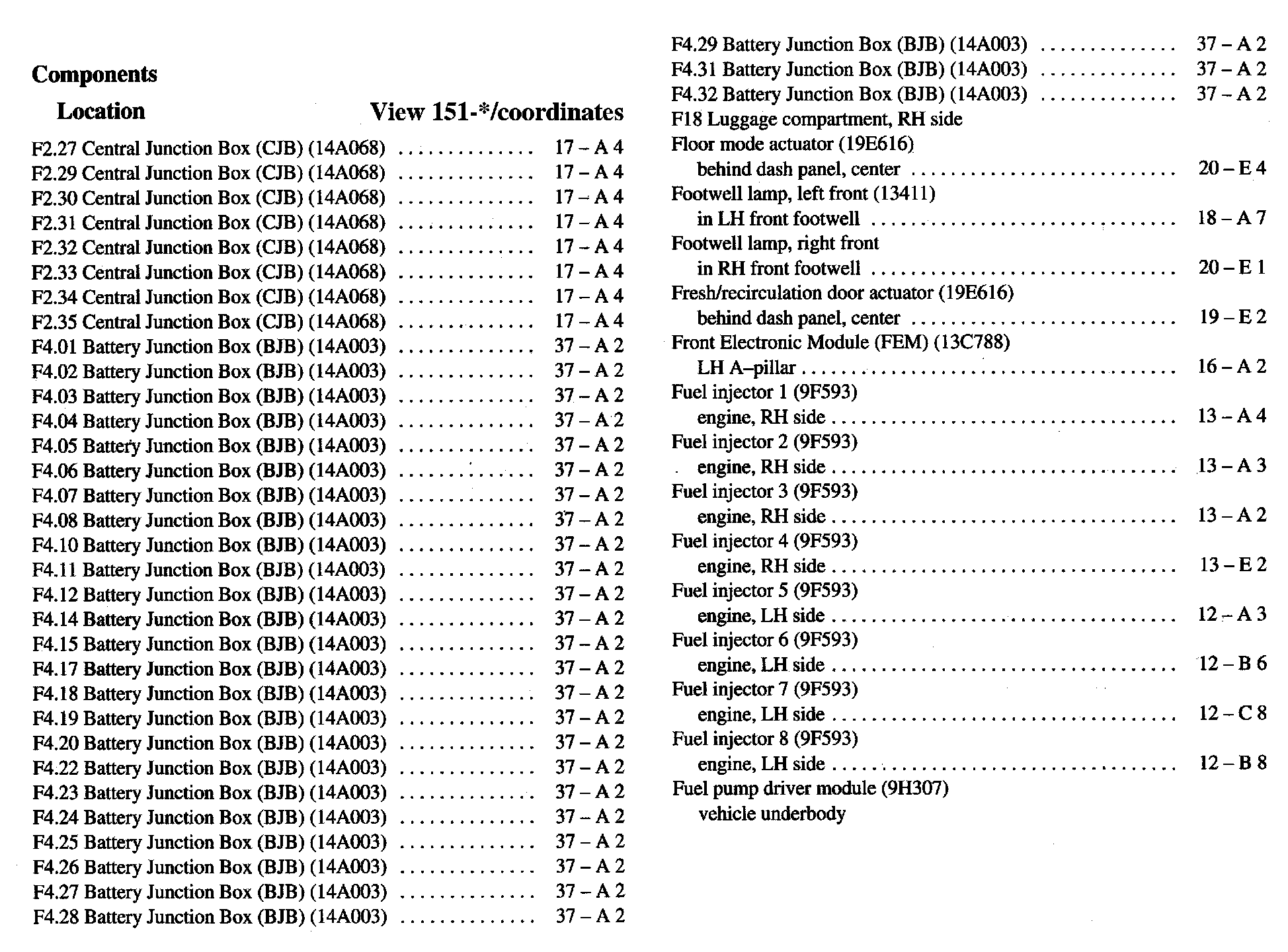

F2.27 - Fu:
Fu - In:

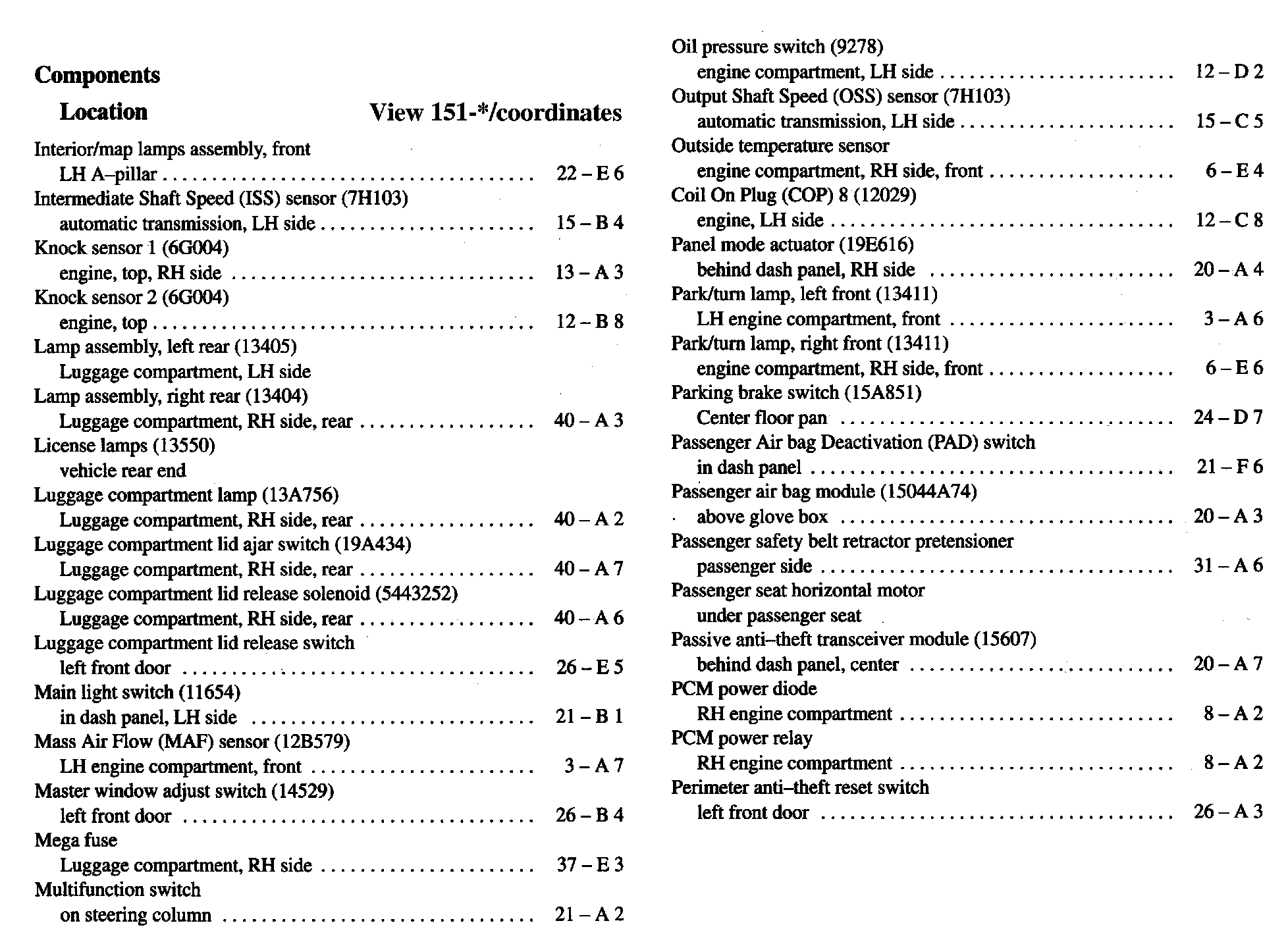

In - Pe:

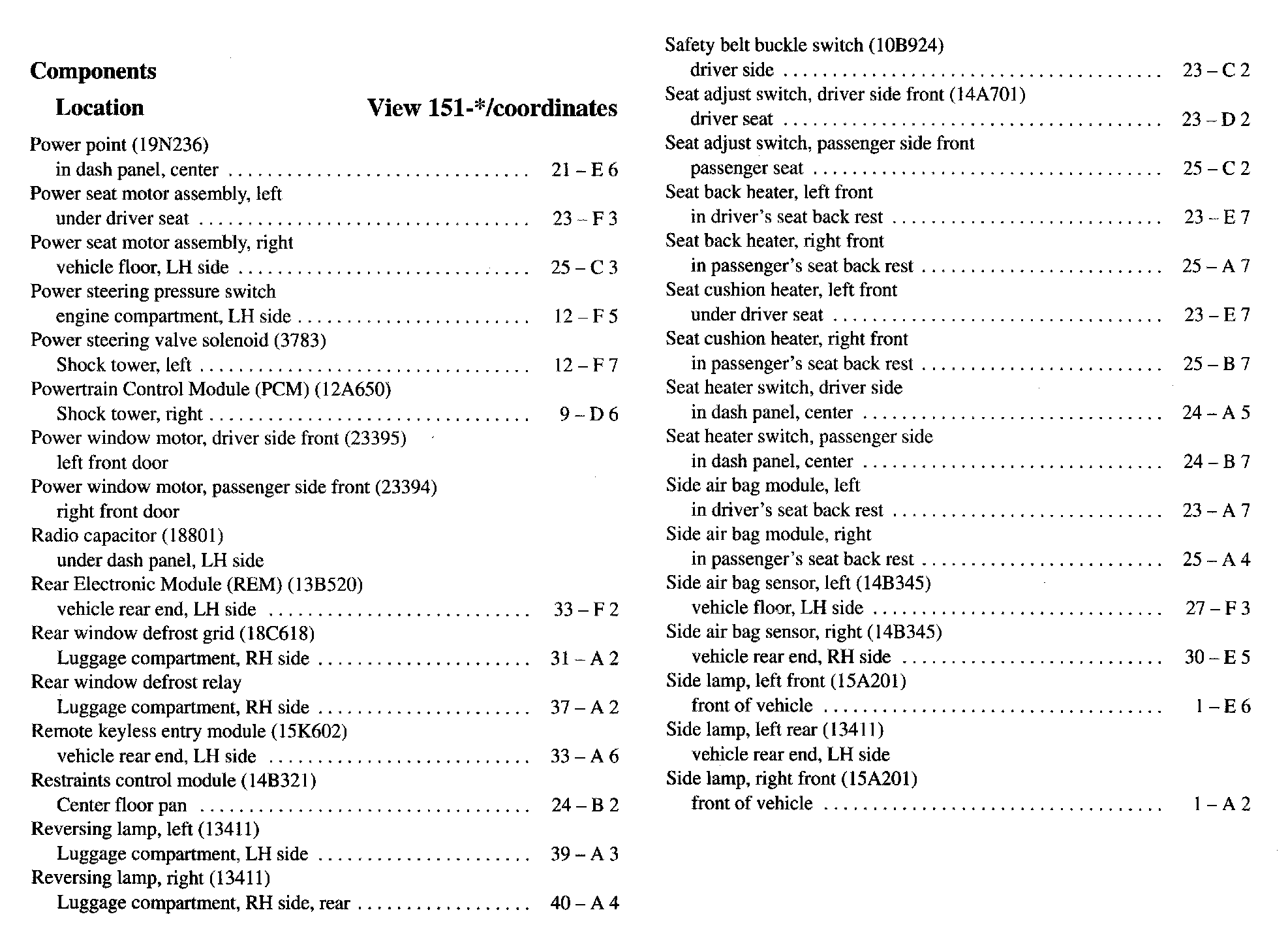

Po - Si:

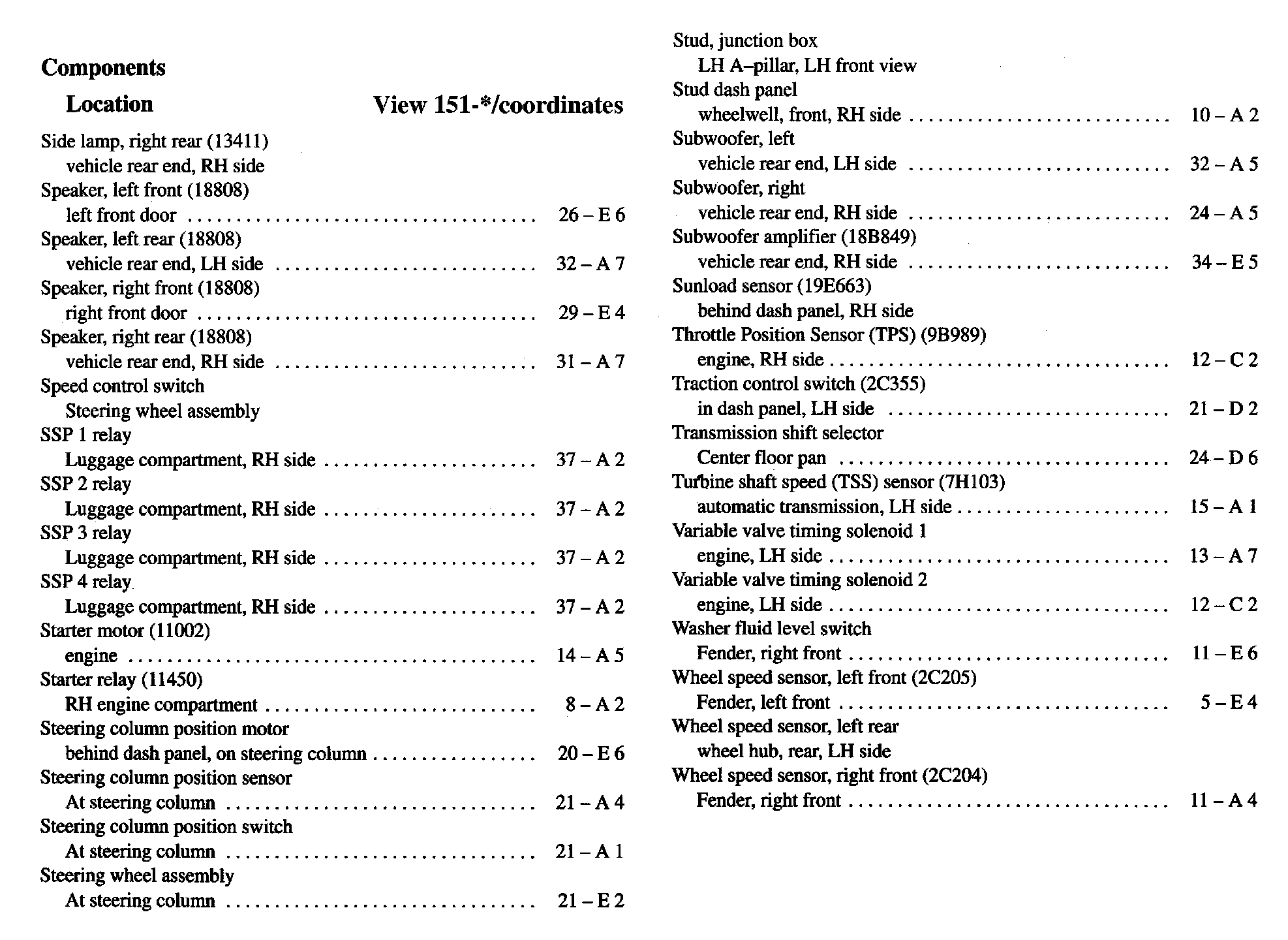

Si - Wh:

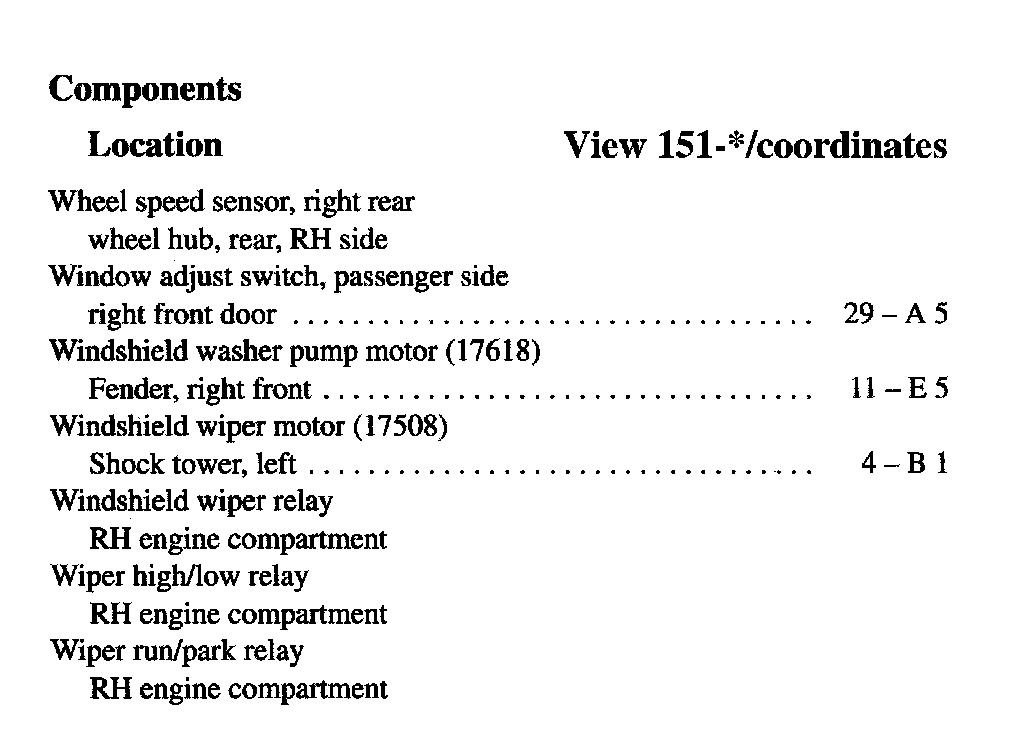

Wh - Wi:
