Exhaust Manifold

EGR valve-to-exhaust manifold tube nut 50 Nm (37 ft. lbs.)
Exhaust manifold-to-catalytic converter nuts 40 Nm (30 ft. lbs.)
Three-way catalytic converter-to-exhaust manifold nuts 40 Nm (30 ft. lbs.)

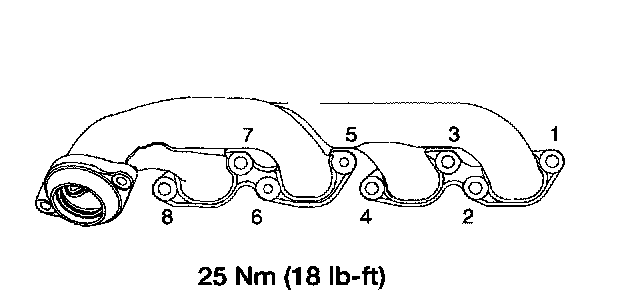

Exhaust manifold nuts:





NOTE: RH is shown, LH is similar.
