Home >> Ford >> 2003 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Auxiliary Relay Box Heated Rear Window Relay C4067

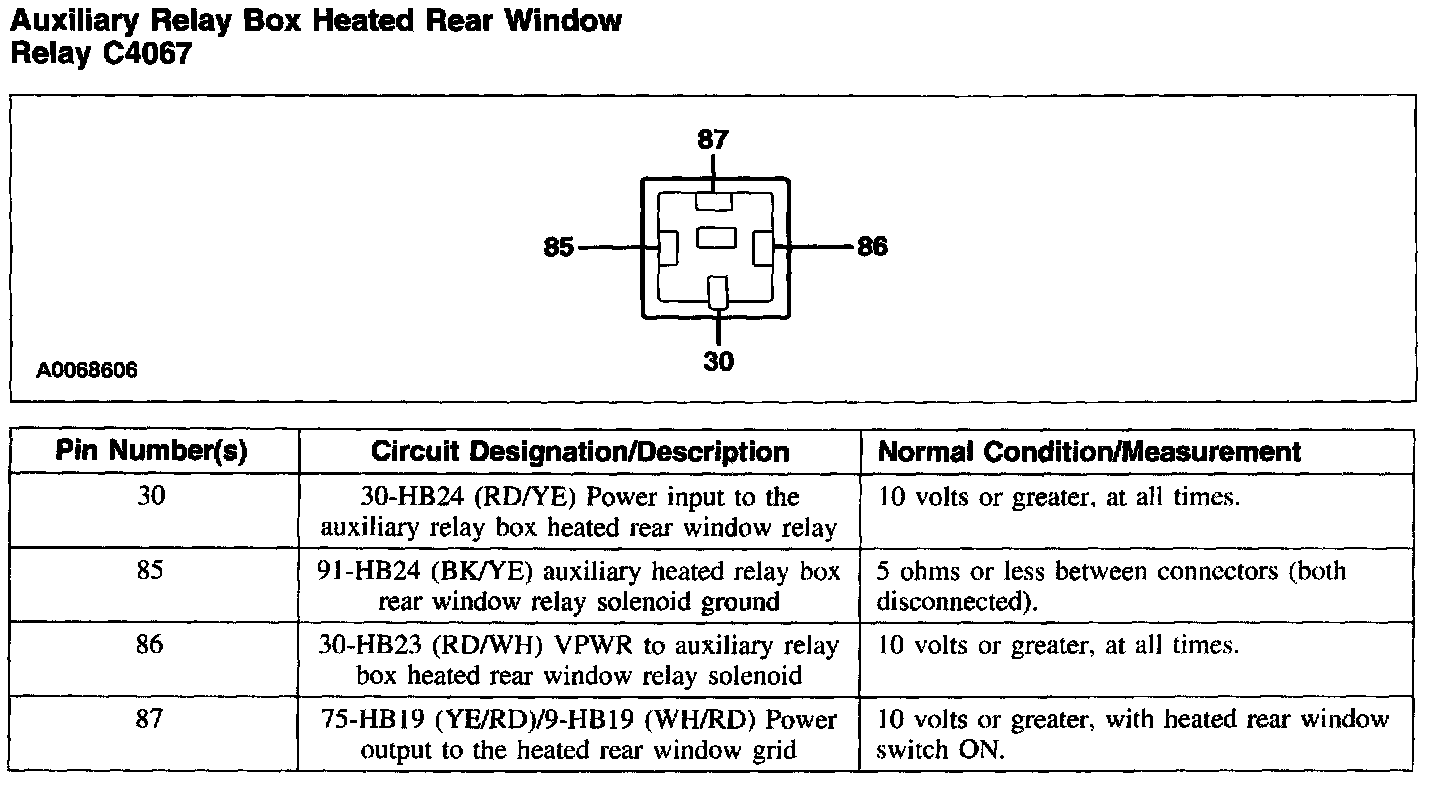

Auxiliary Relay Box Heated Rear Window Relay C4067

Auxiliary Relay Box Heated Rear Window Relay C4067:
