Test K

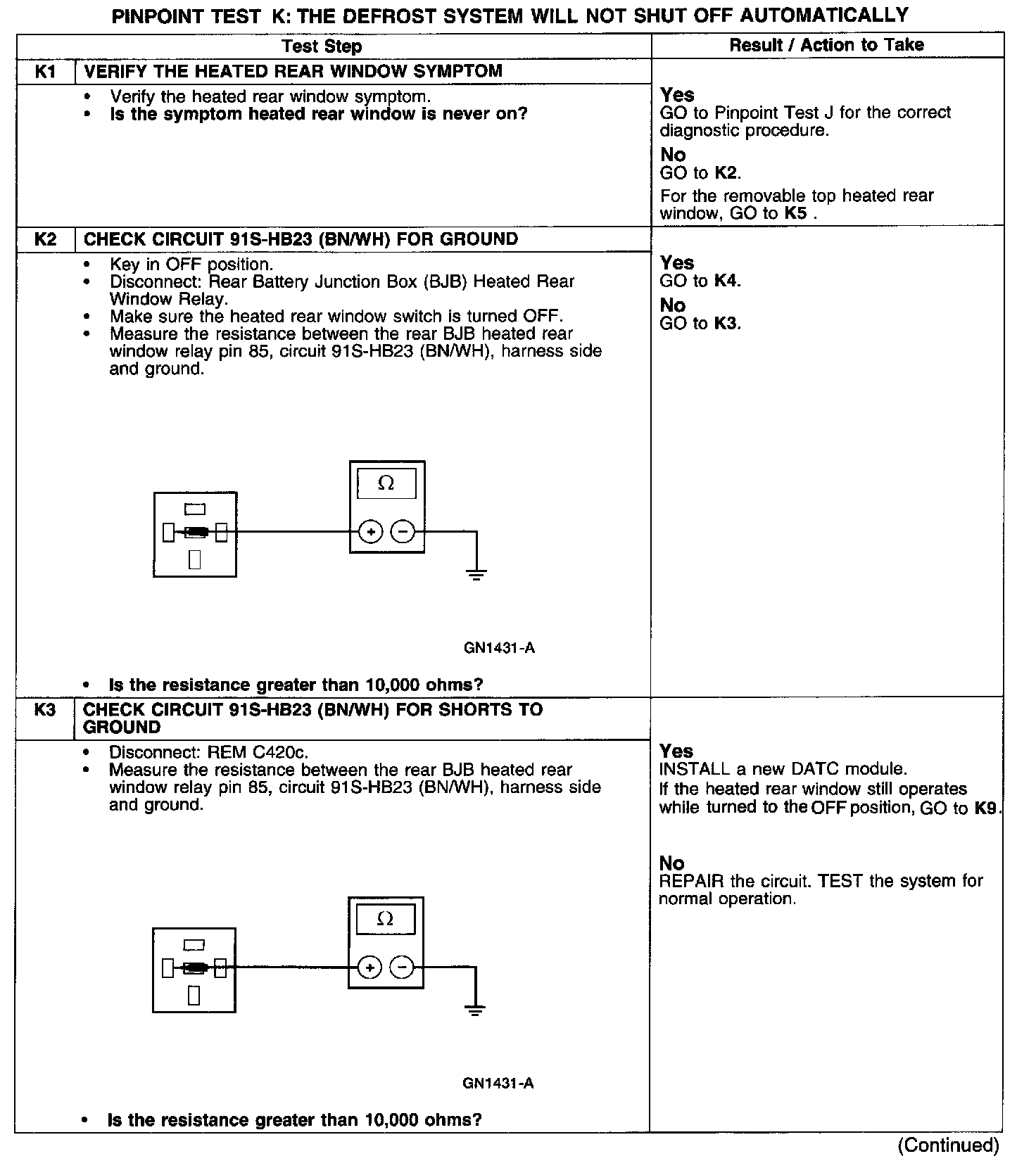

PINPOINT TEST K: THE DEFROST SYSTEM WILL NOT SHUT OFF AUTOMATICALLYTest K1-K3:

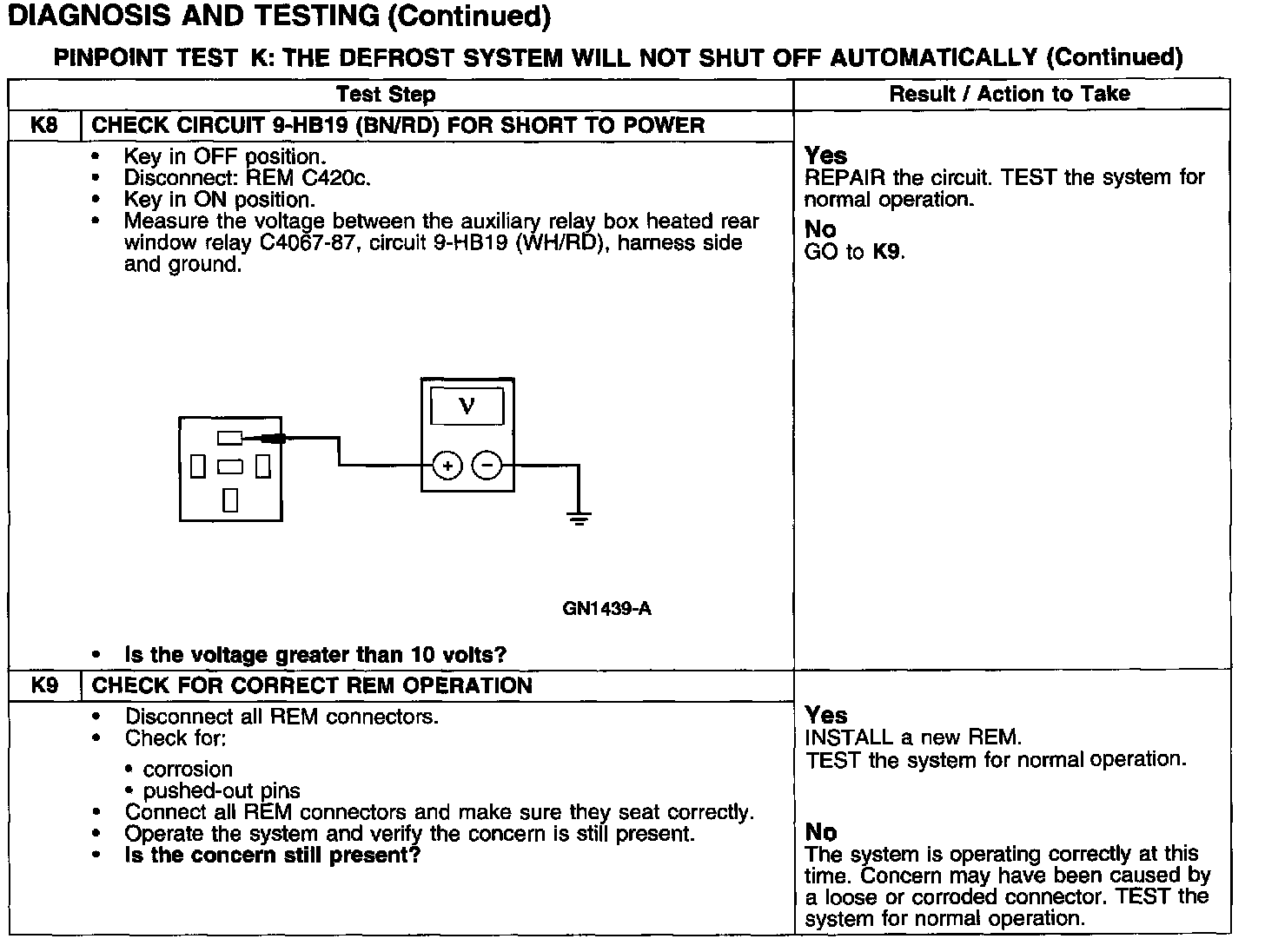

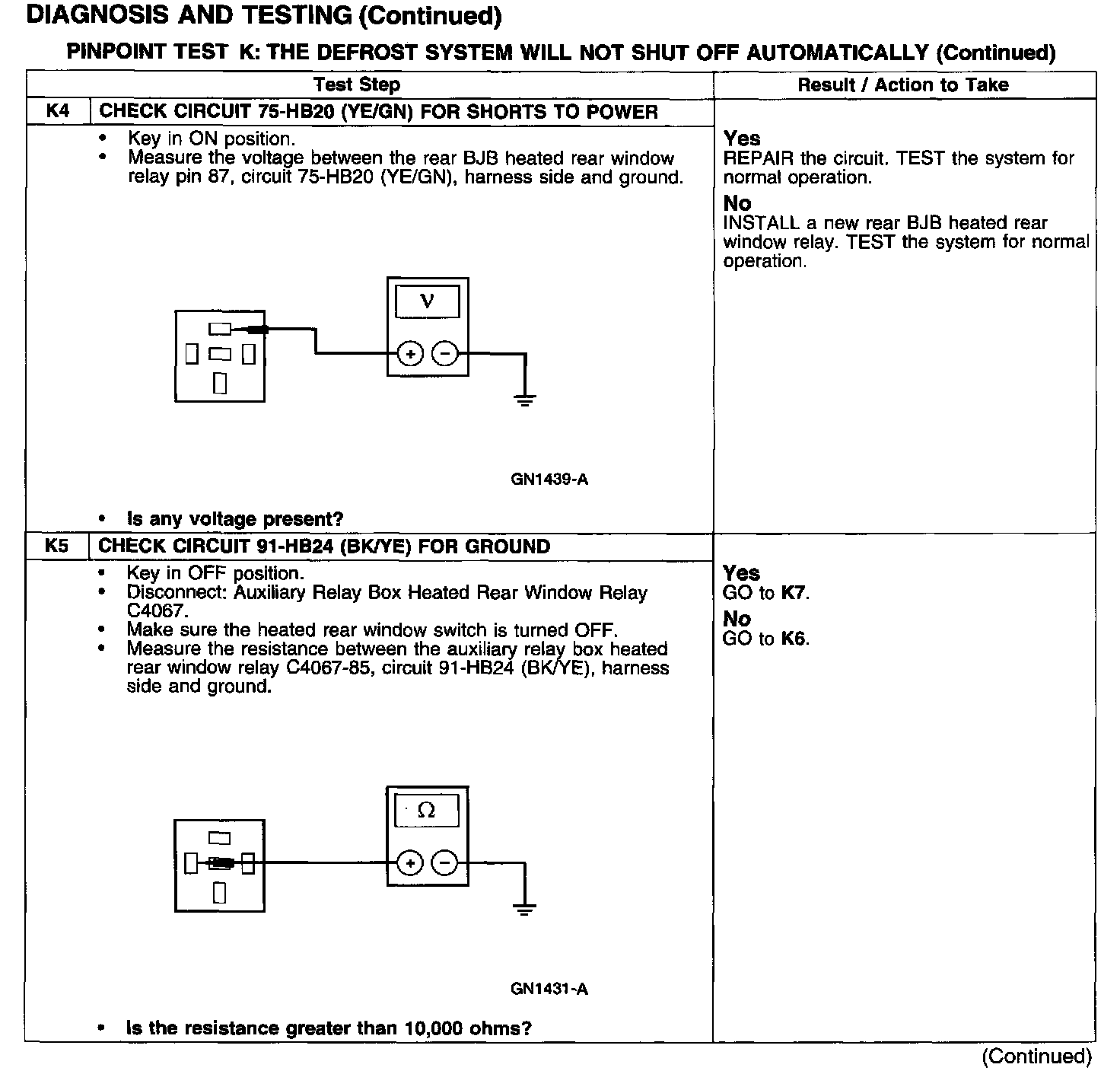

Test K4-K5:

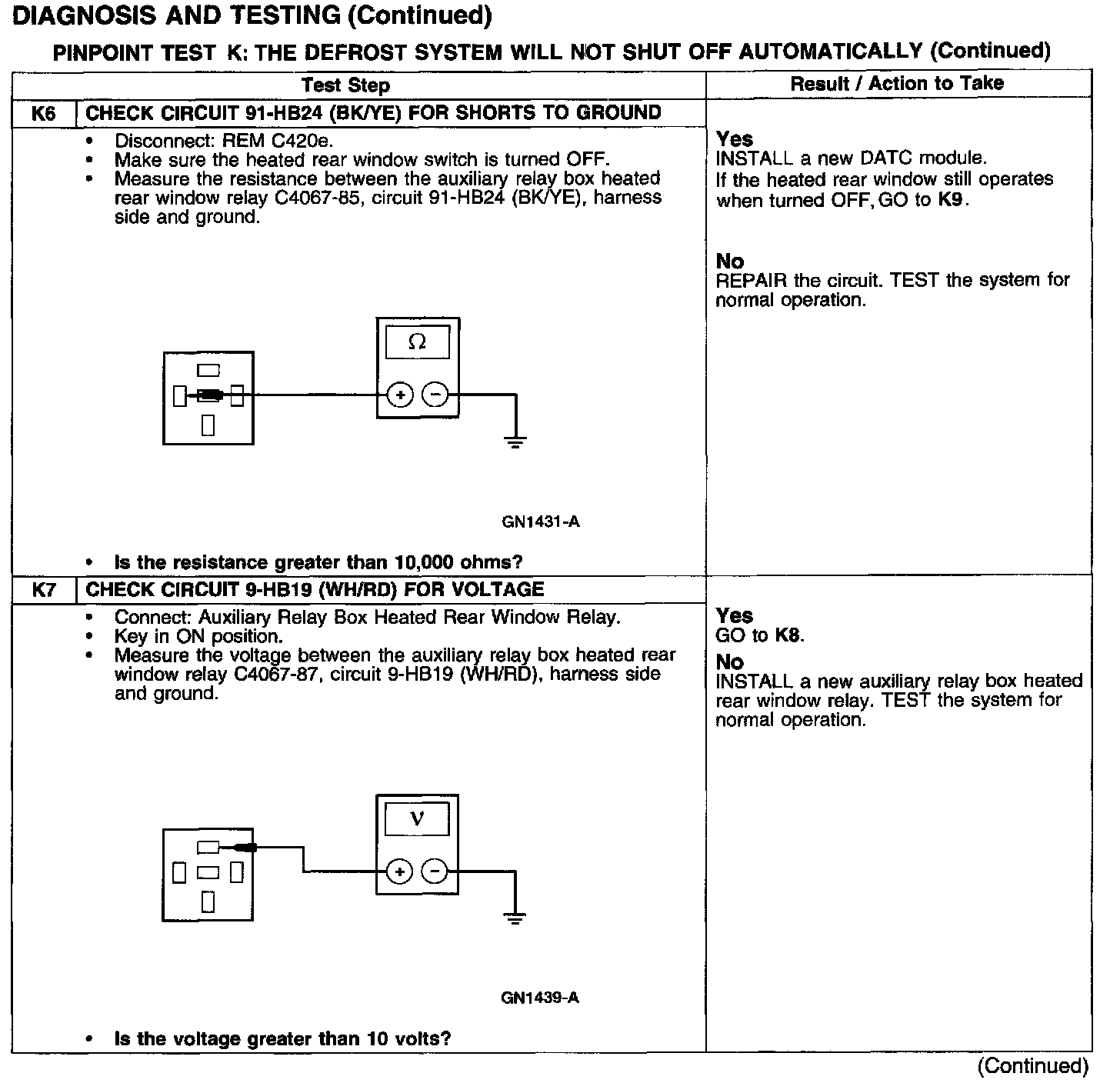

Test K6-K7:
Test K8-K9:
Normal Operation
For the hard top defrost system, the REM checks circuit 9-HB23 (BN/WH) for a ground. If circuit 9-HB23 (BN/WH) is grounded, the REM will command the hard top system to operate when the heated rear window switch is pressed.
The rear battery junction box (BJB) heated rear window relay has power at all times. The heated rear window switch (part of the dual automatic temperature control) will supply a signal to the REM which grounds the heated rear window relay and closes it in order to supply power to circuit 75-HB19 (YE/RD), which powers the heated rear window grid. The grid is grounded through circuit 31-HB19 (BK/BU). The rear BJB heated rear window relay will remain closed, supplying power to the heated rear window grid for approximately 10 minutes or until the heated rear window switch is pressed again.
For the convertible top defrost system, the REM checks circuit 9-HB23 (BN/WH) for a ground. If circuit 9-HB23 (BN/WH) is not grounded, the REM will command the convertible top system to operate when the heated rear window switch is pressed.
The auxiliary relay box heated rear window relay has power at all time. The heated rear window switch supplies a signal to the REM which grounds the auxiliary relay box heated rear window relay and closes it in order to supply power to circuit 75-HB20 (YE/GN), which powers the heated rear window grid.
The auxiliary relay box heated rear window relay will remain closed, supplying power to the heated rear window grid for approximately 10 minutes or until the heated rear window switch is pressed again.
Possible Causes
- circuit 91S-HB23 (BN/WH) short to ground
- circuit 75-HB20 (YE/GN) short to power
- circuit 91-HB24 (BK/YE) short to ground
- circuit 9-HB19 (BN/RD) short to power
- heated rear window switch
- rear BJB heated rear window relay
- auxiliary relay box heated rear window relay
- REM
