Test B

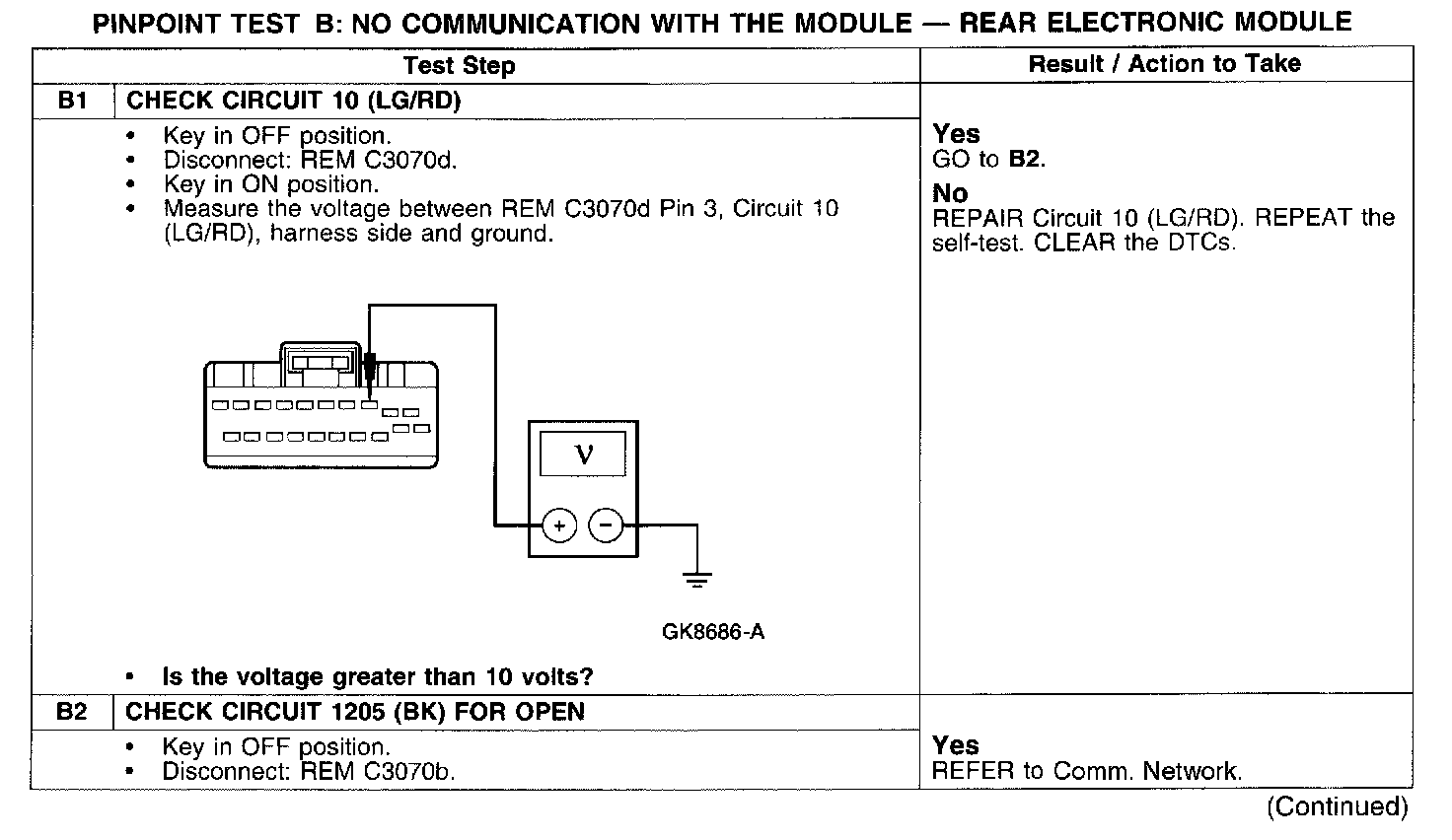

PINPOINT TEST B: NO COMMUNICATION WITH THE MODULE - REAR ELECTRONIC MODULE


Test B1-B2:






Test B2 Continued:
