Anti-Theft - Perimeter
>>
Test D
Test D

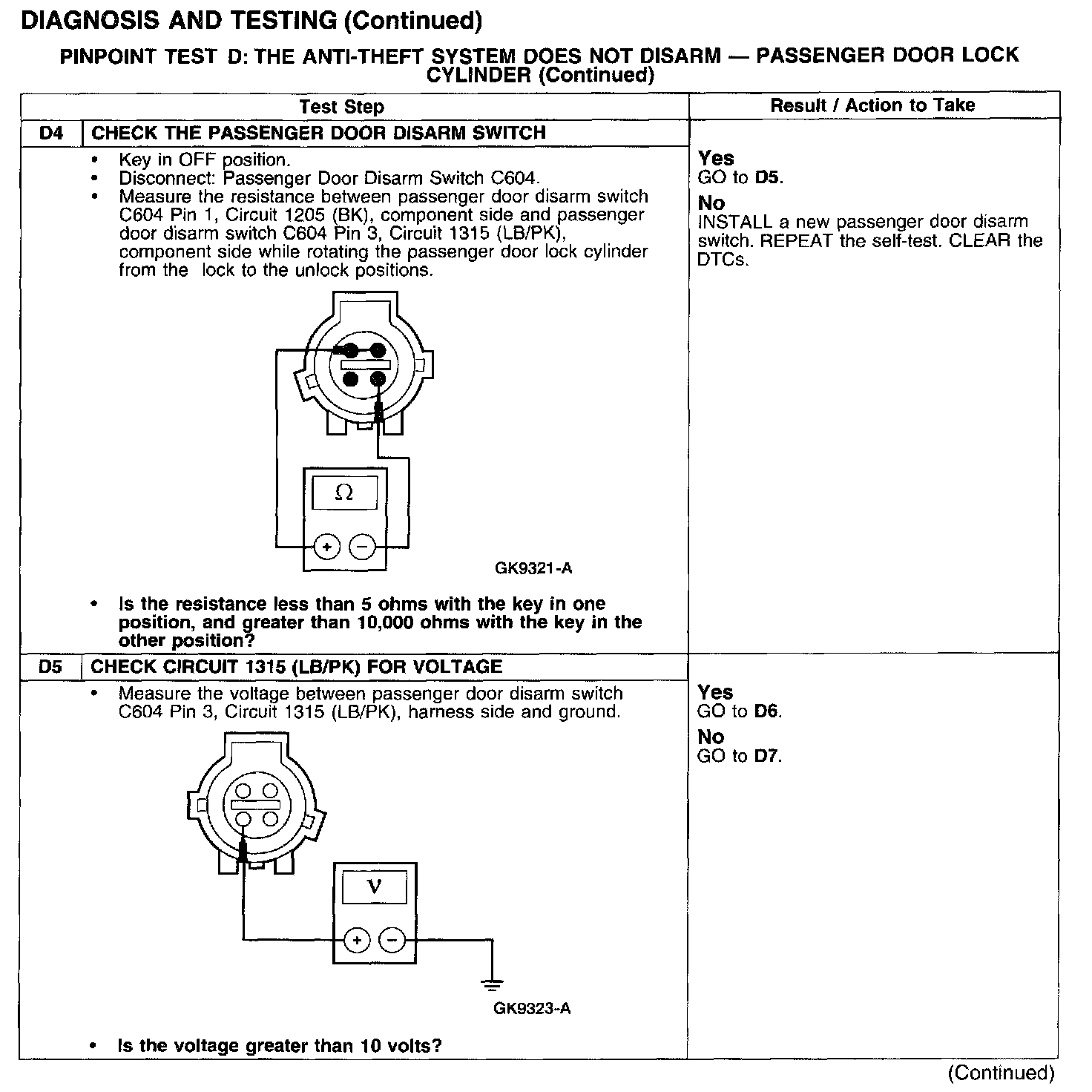

PINPOINT TEST D: THE ANTI-THEFT SYSTEM DOES NOT DISARM - PASSENGER DOOR LOCK CYLINDER
Test D1-D3:
Test D4-D5:
Test D6-D8:
