PINPOINT TEST D: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC - WITHOUT HEATED MIRRORS

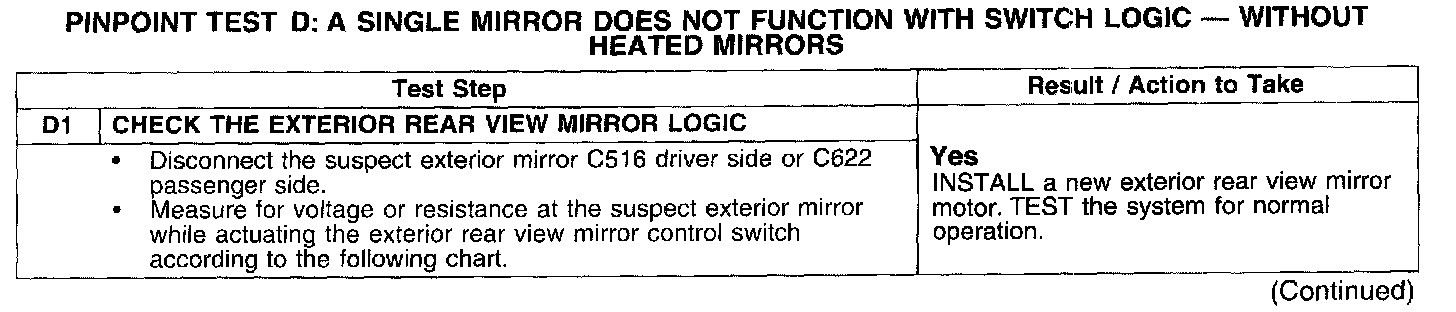

Test D1:

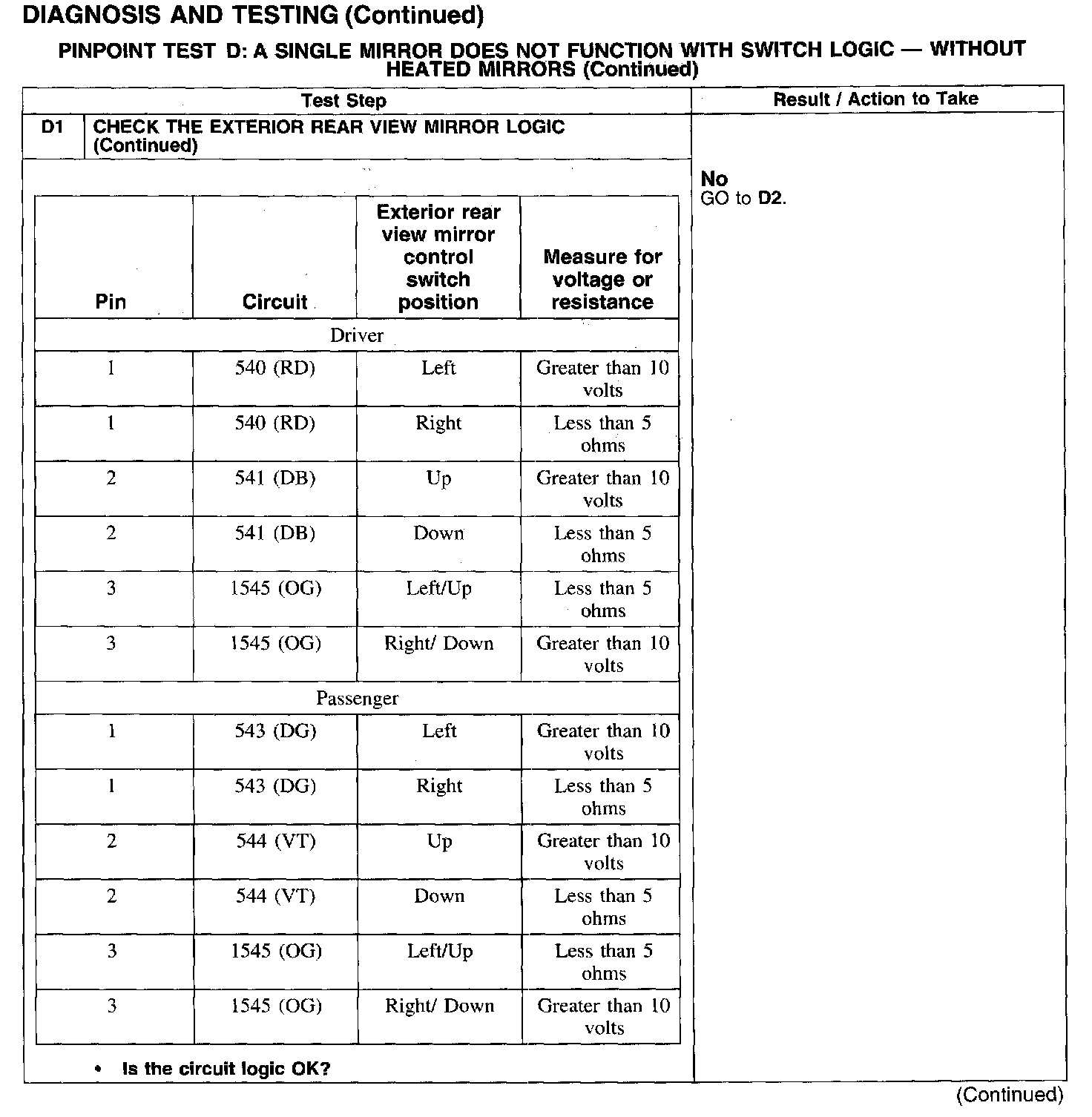

Test D1 Continued:

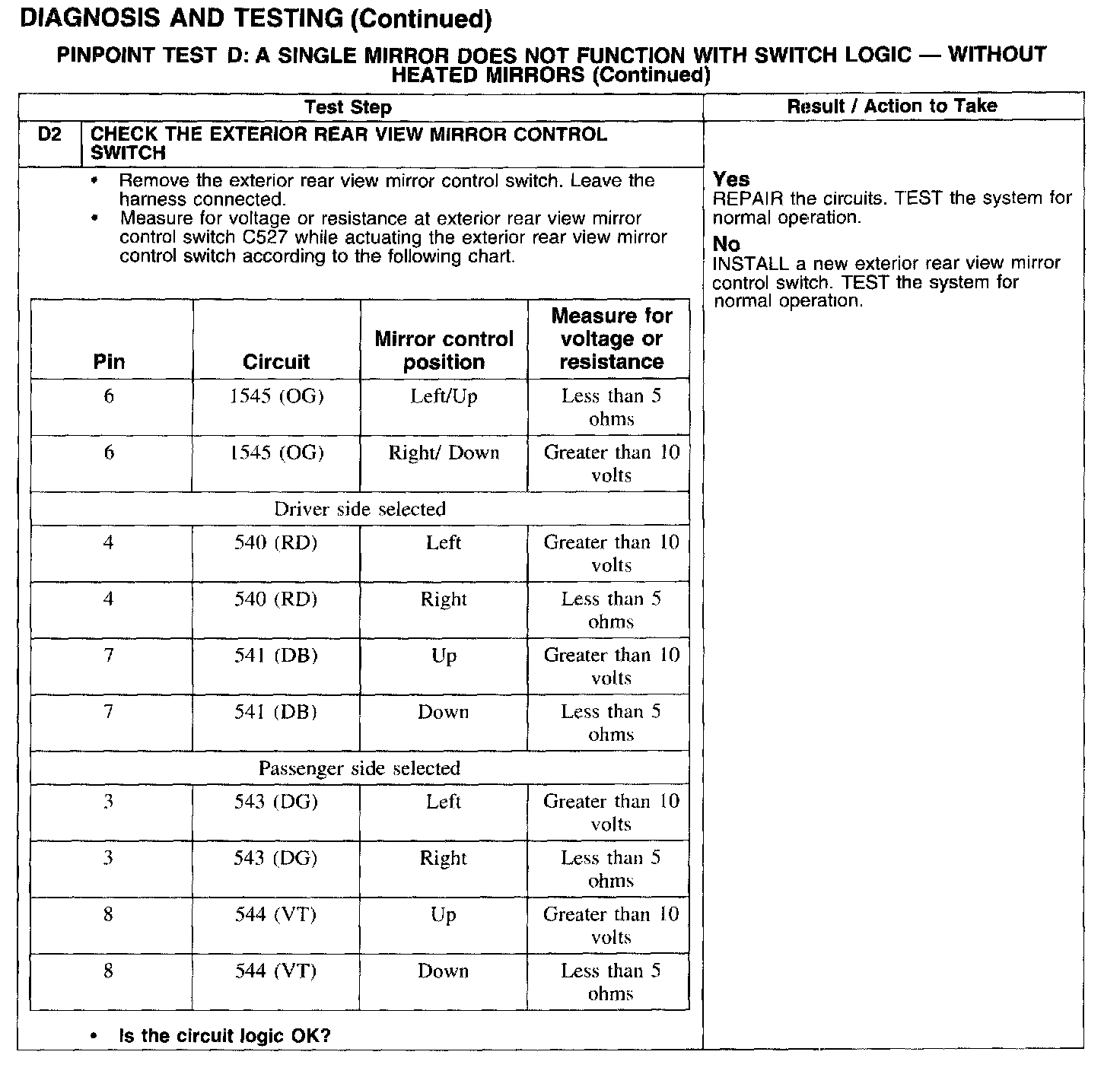

Test D2:
