Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test E
Test E
PINPOINT TEST E: A SINGLE MIRROR DOES NOT FUNCTION WITH SWITCH LOGIC - WITH TURN SIGNAL AND HEATED MIRRORS

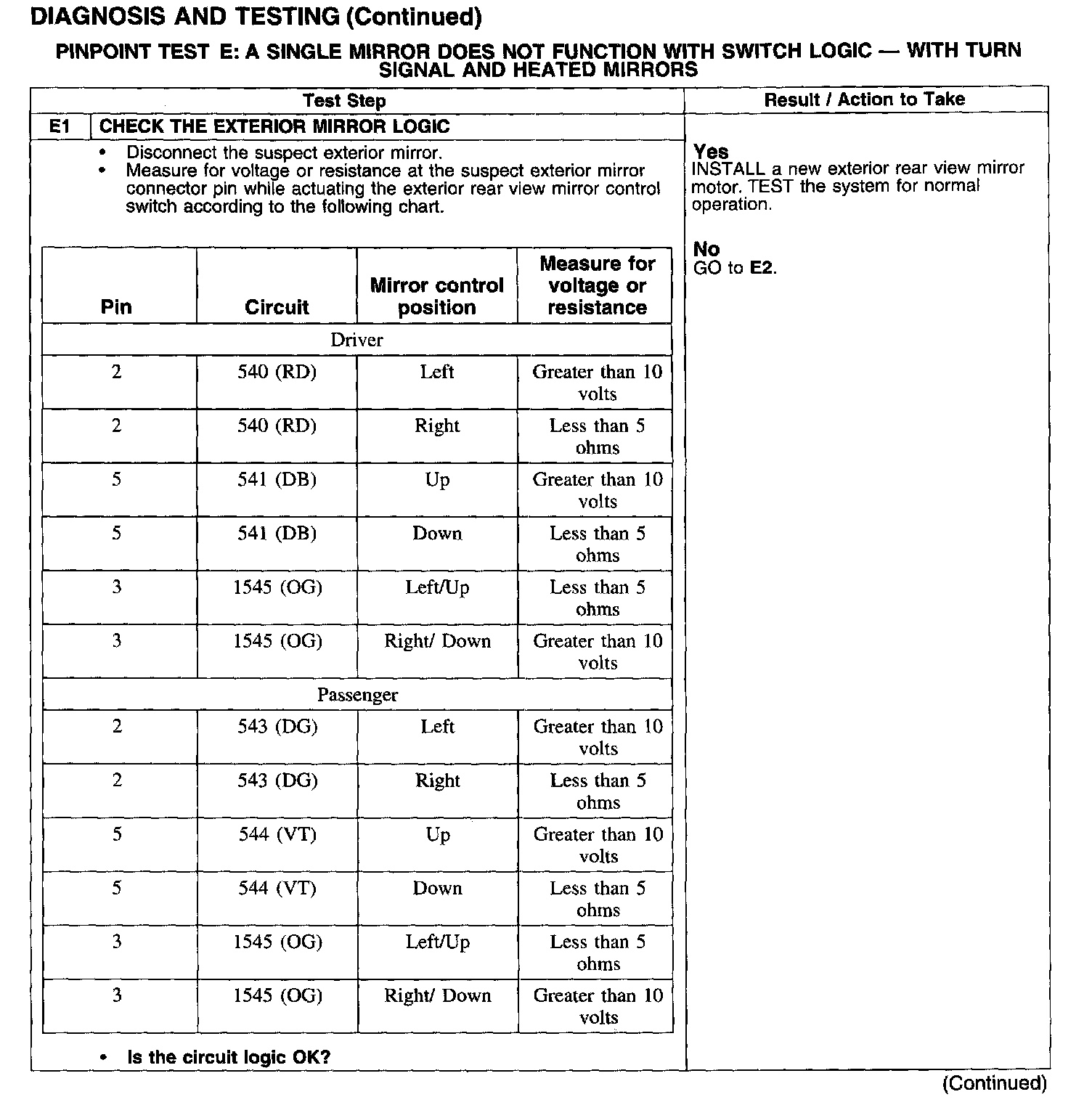

Test E1:

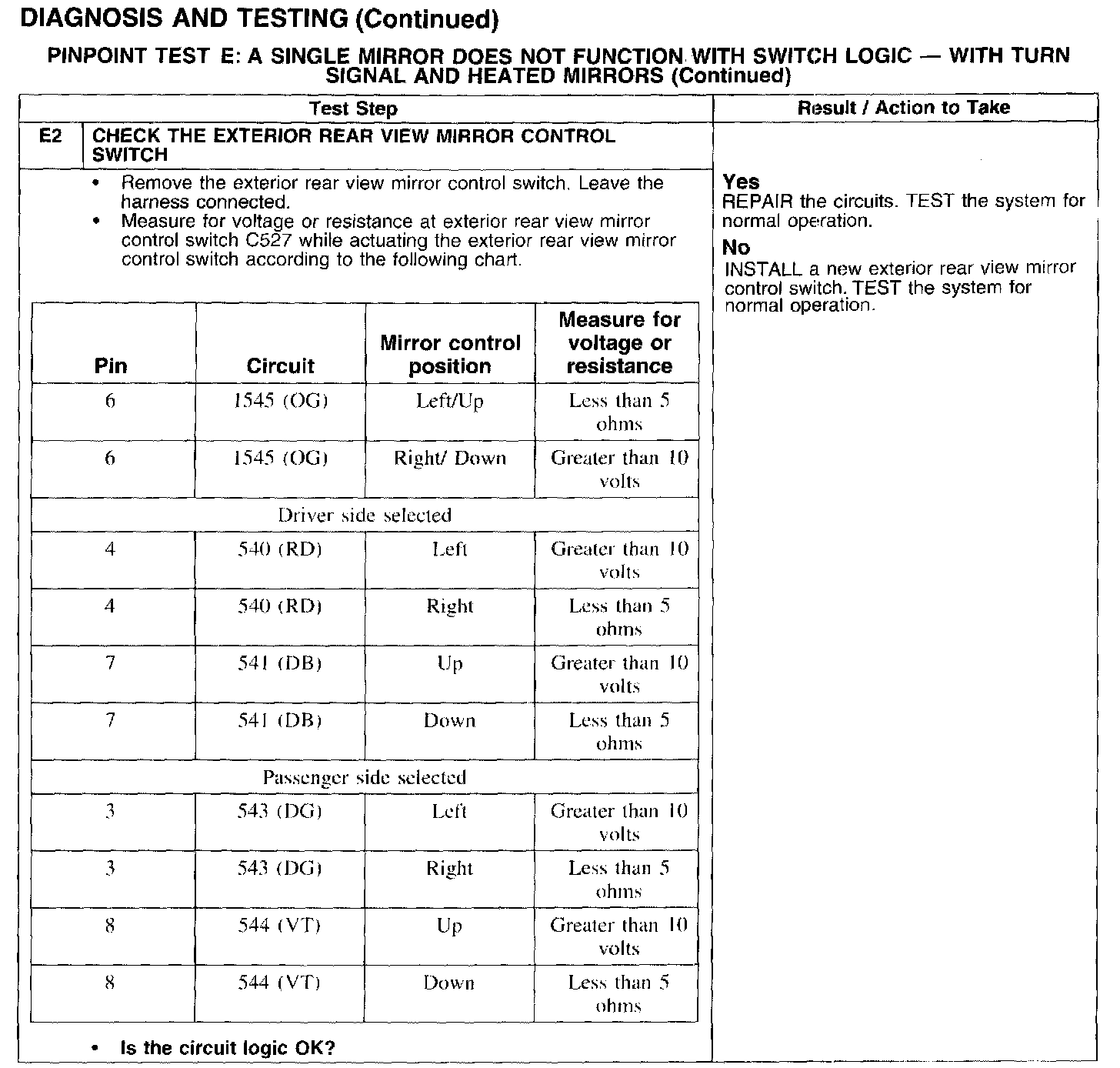

Test E2:
