Test G

PINPOINT TEST G: THE MEMORY MIRROR IS INOPERATIVE

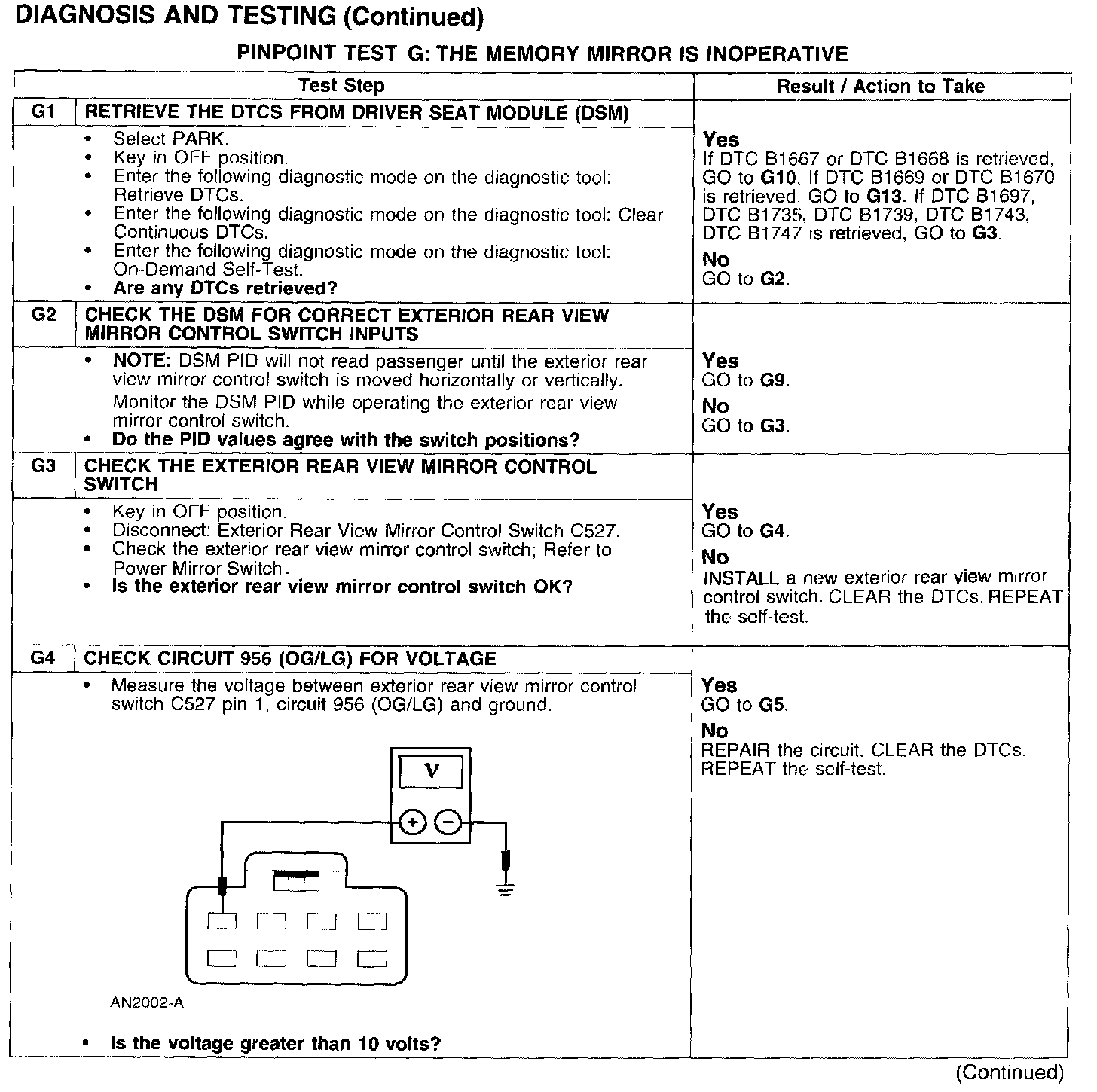

Test G1-G4:

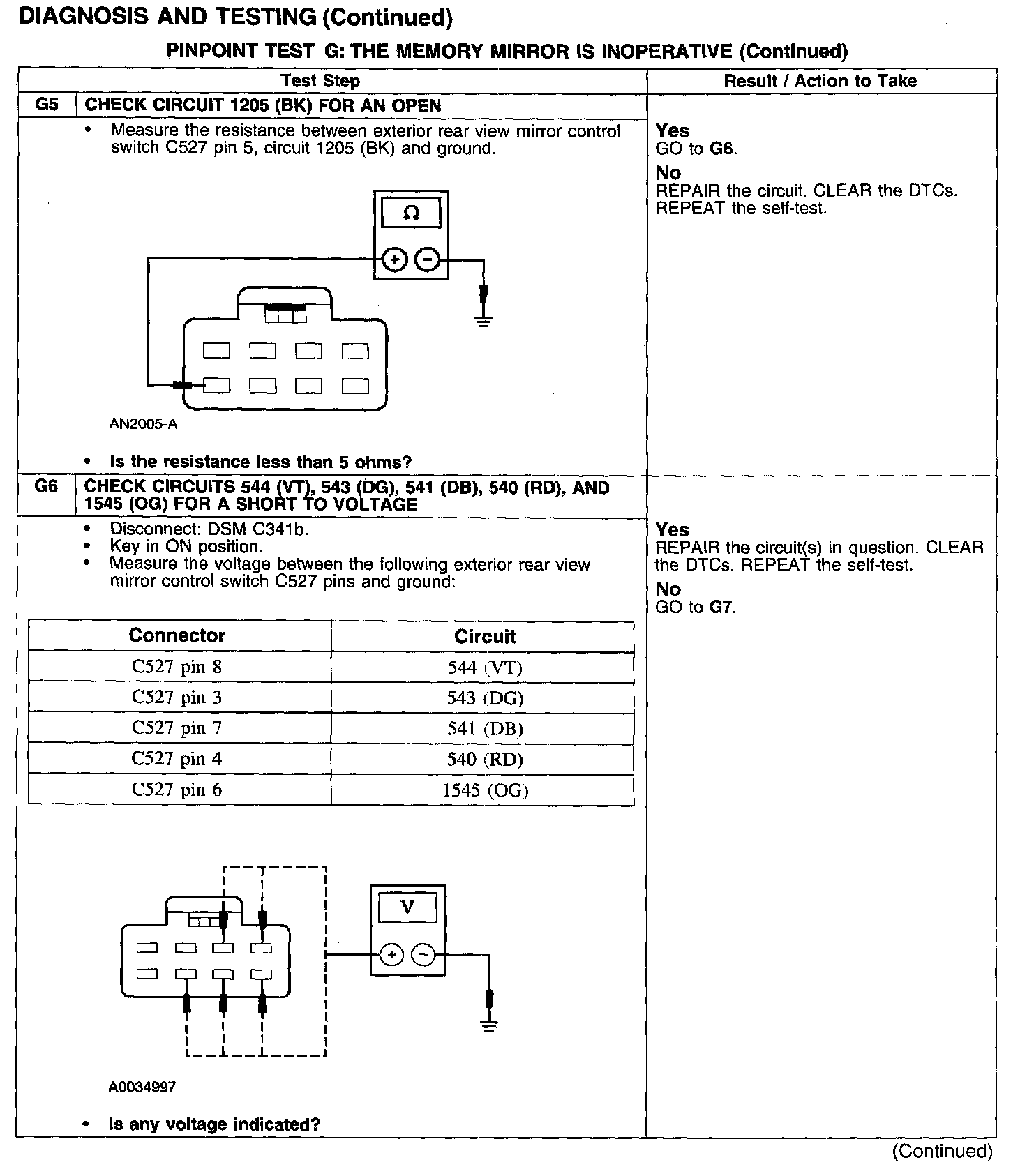

Test G5-G6:

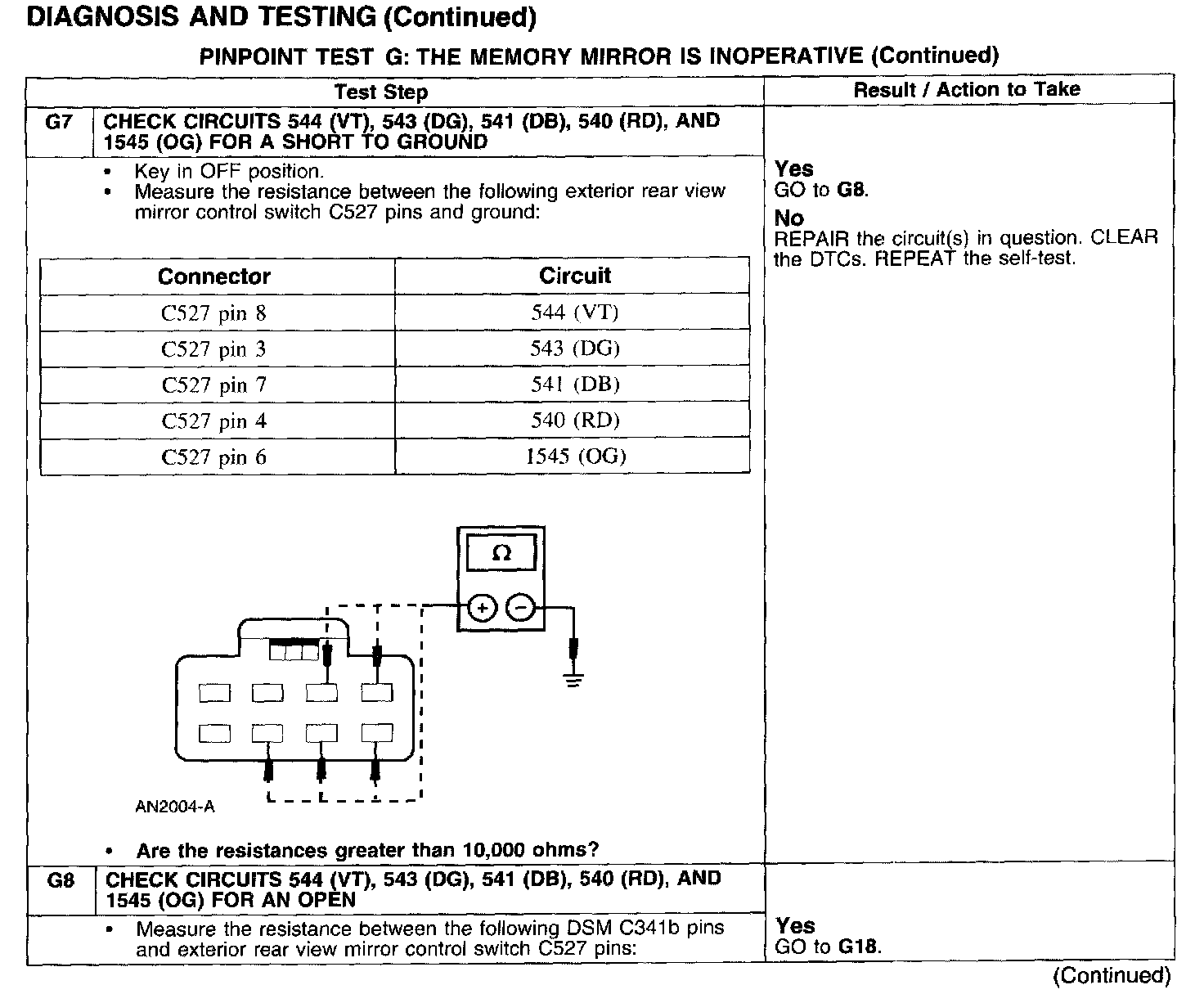

Test G7-G8:






Test G8-G9:

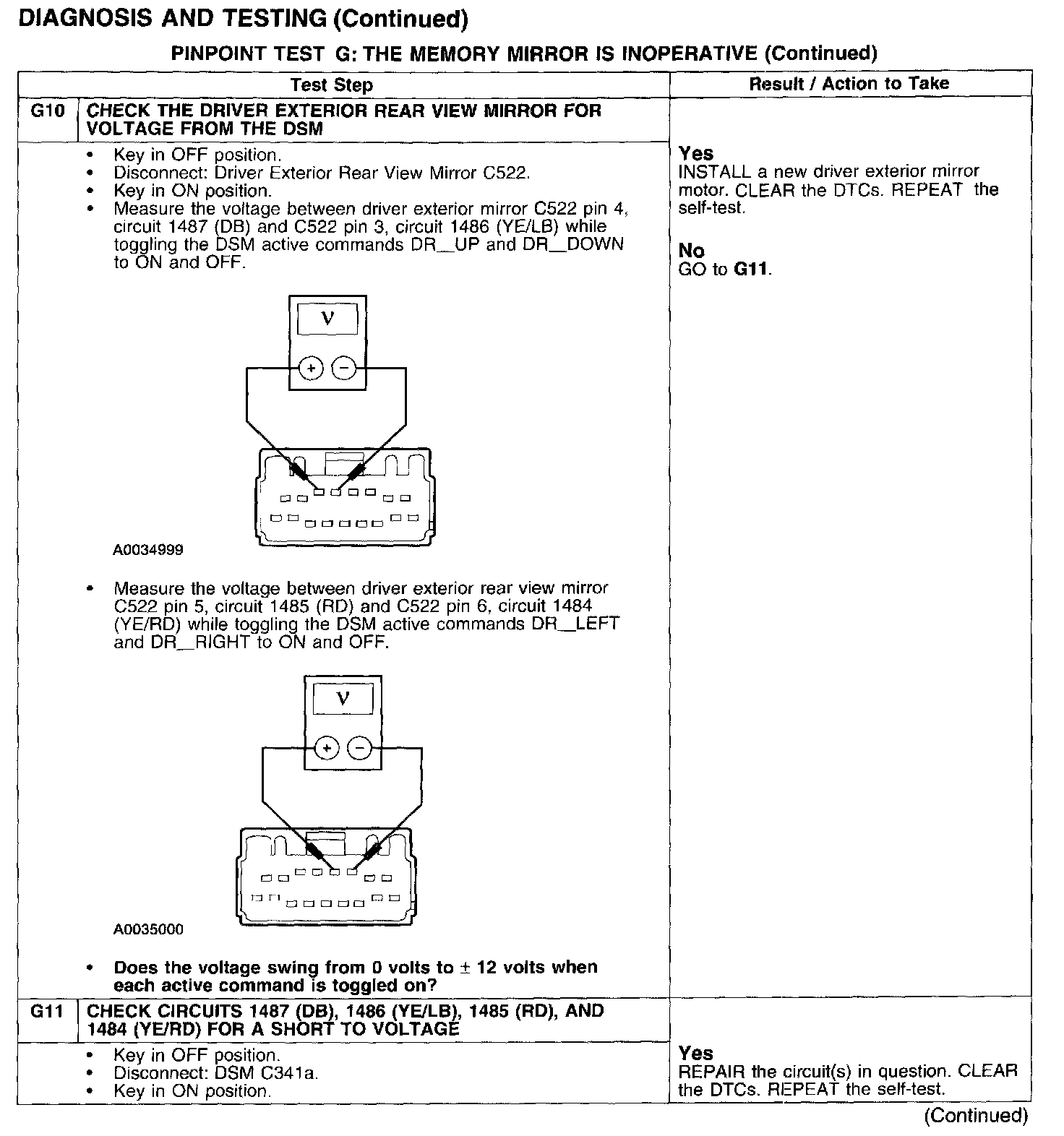

Test G10-G11:

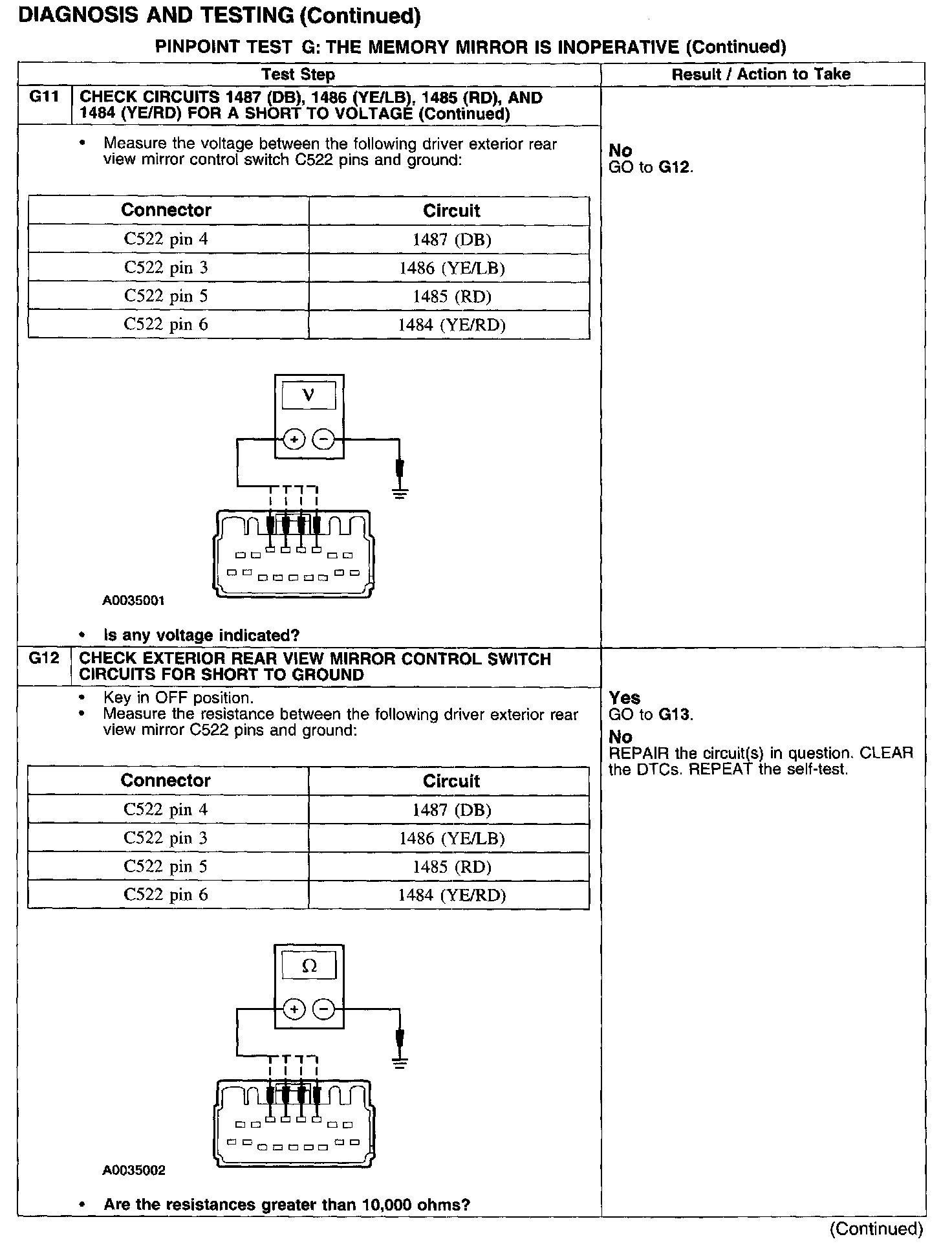

Test G11-G12:

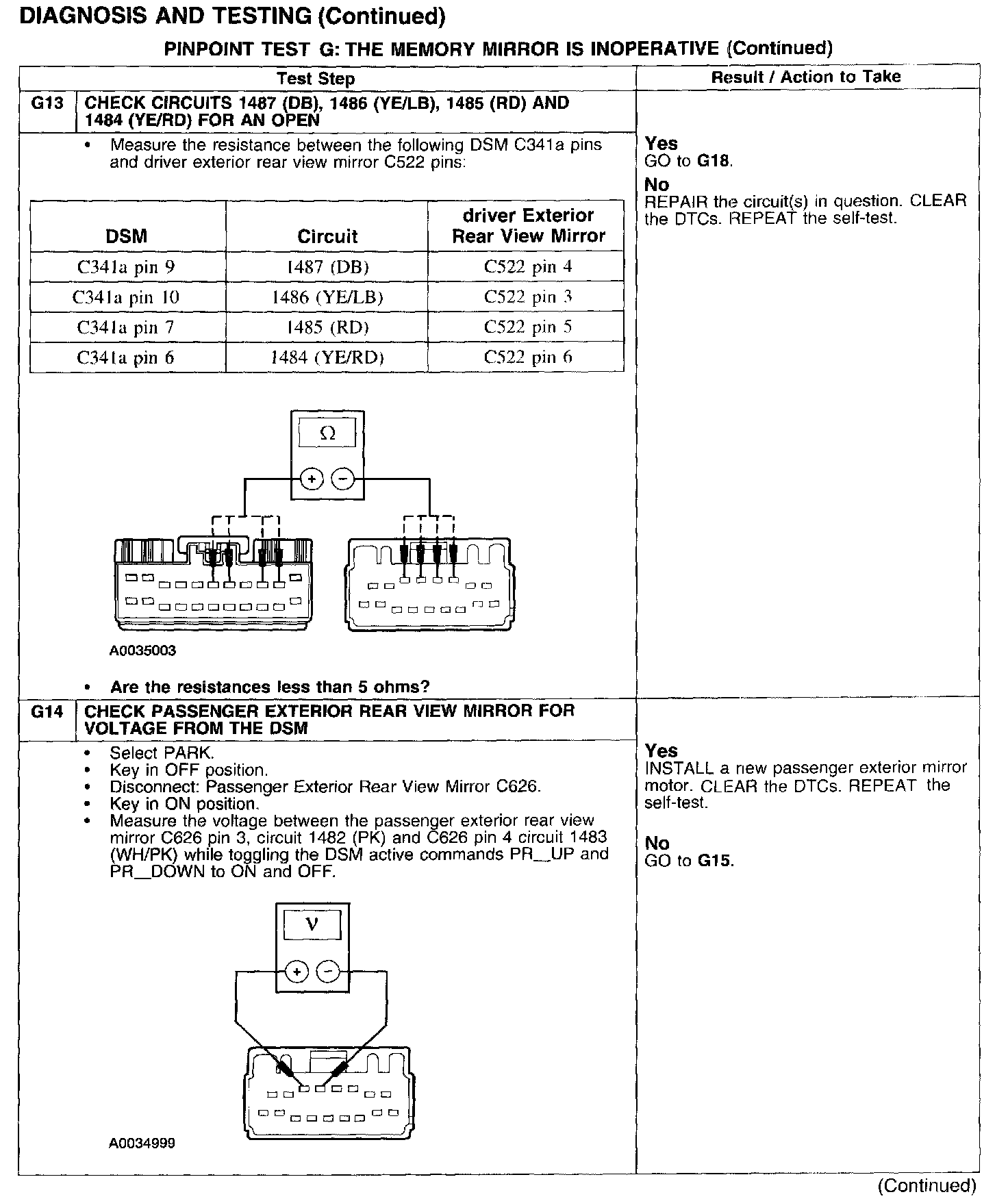

Test G13-G14:

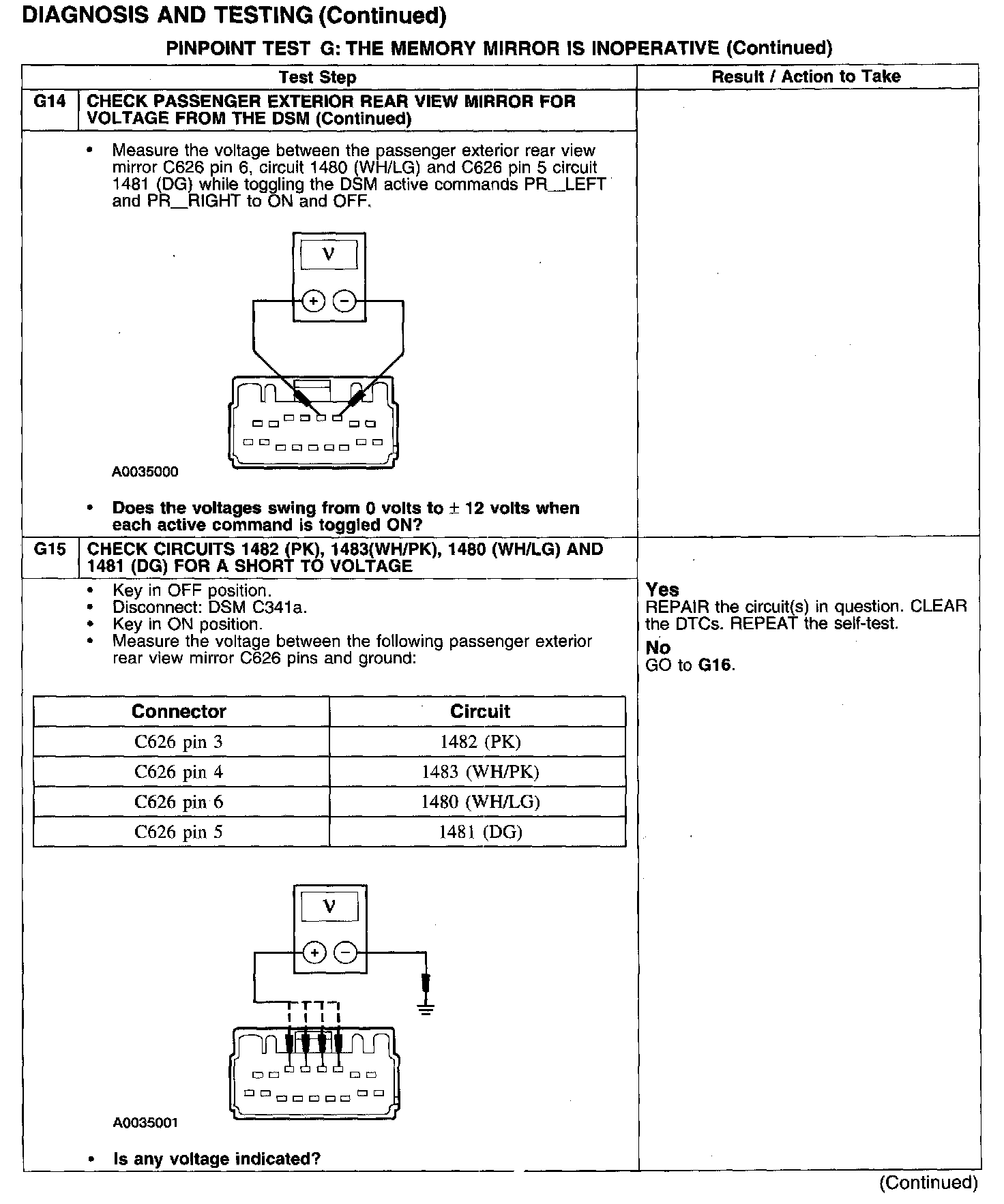

Test G14-G15:

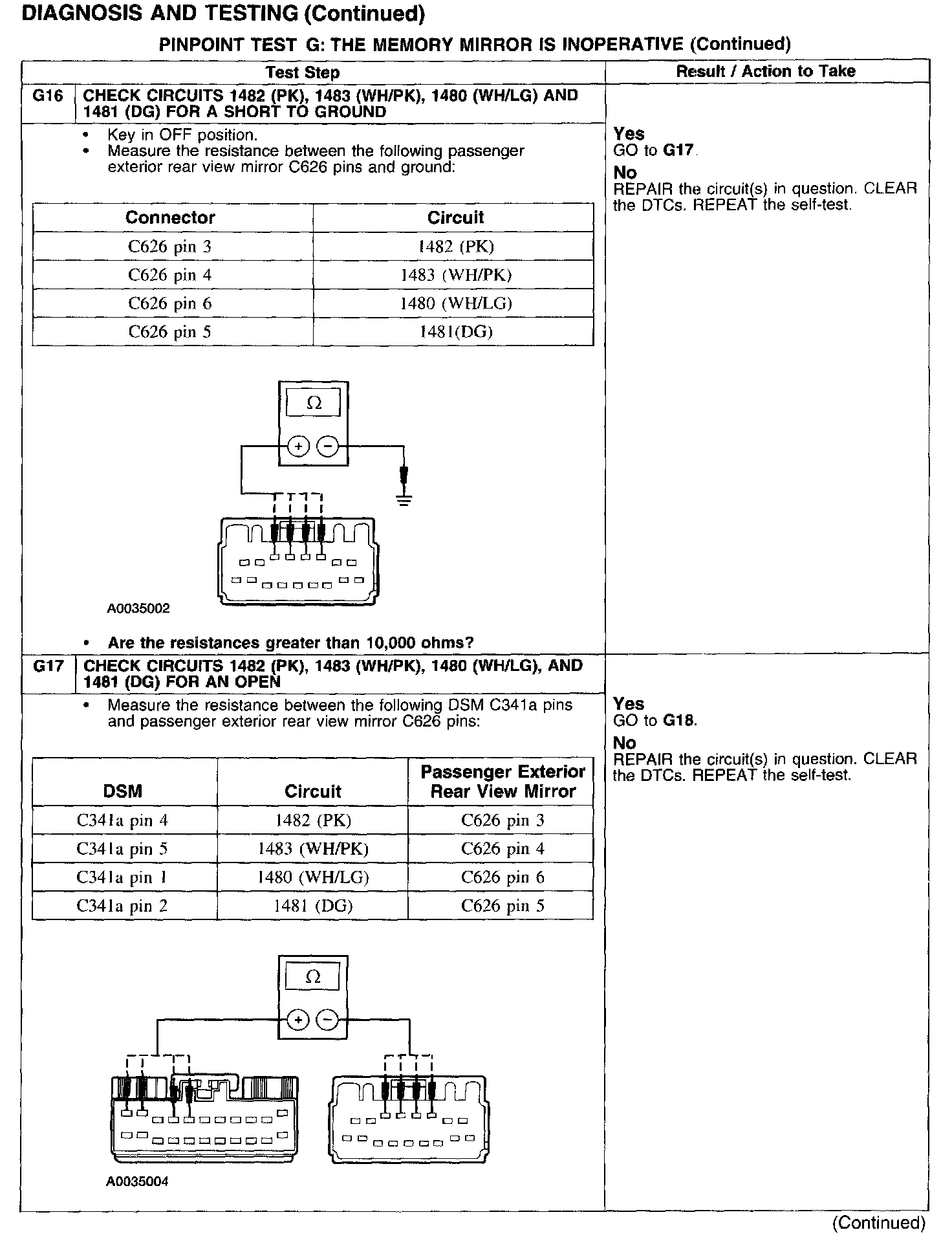

Test G16-G17:

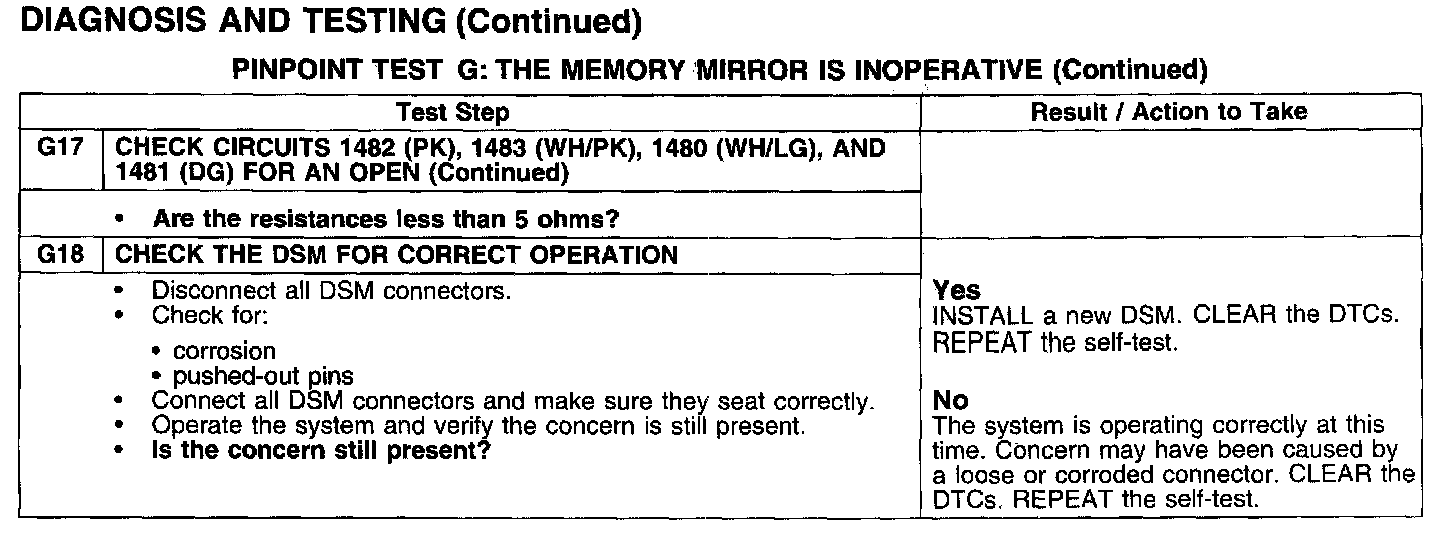

Test G17-G18:
