Test H

PINPOINT TEST H: THE MEMORY MIRROR IS INOPERATIVE - DOES NOT OPERATE FROM THE MEMORY SET SWITCH

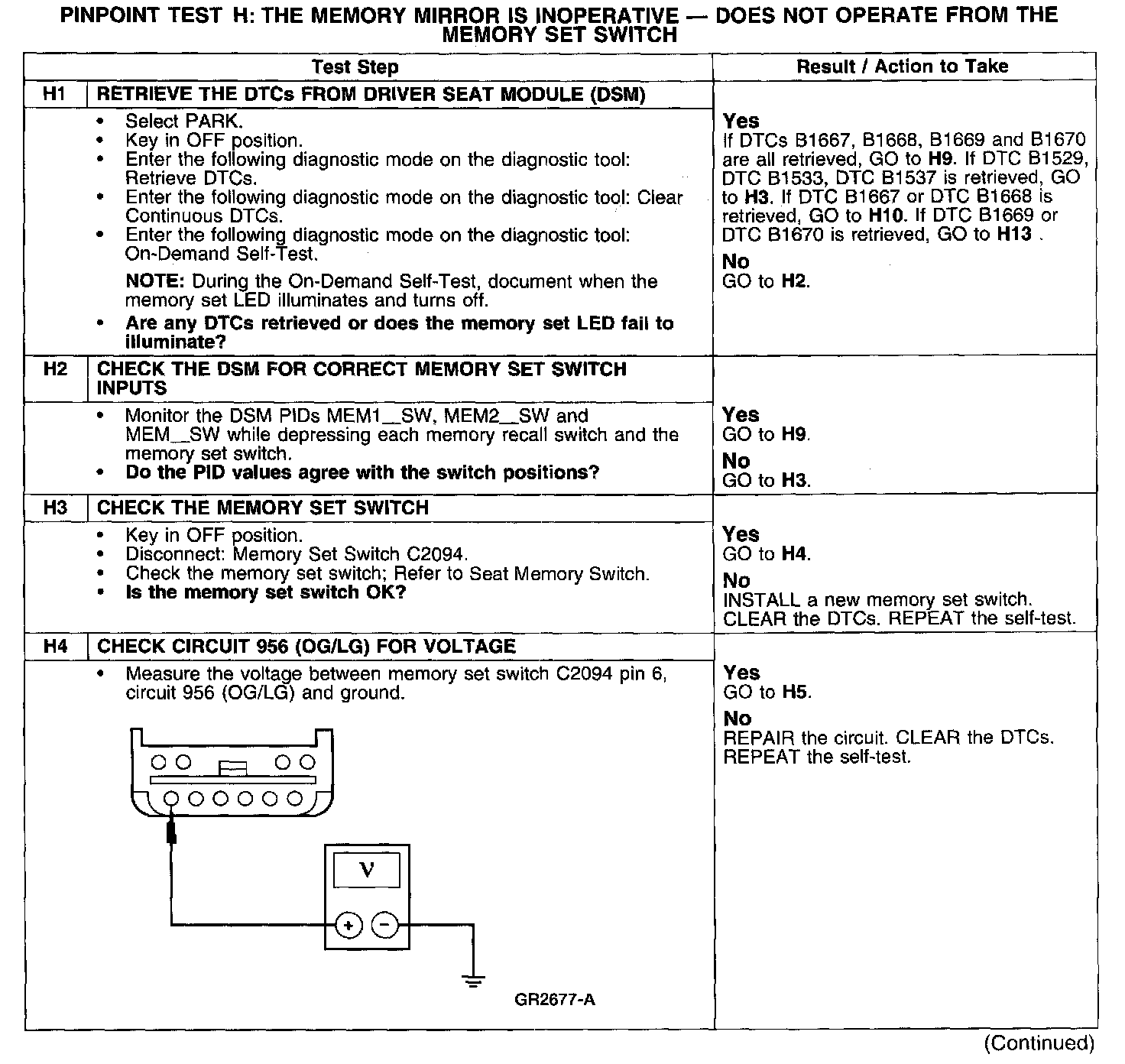

Test H1-H4:

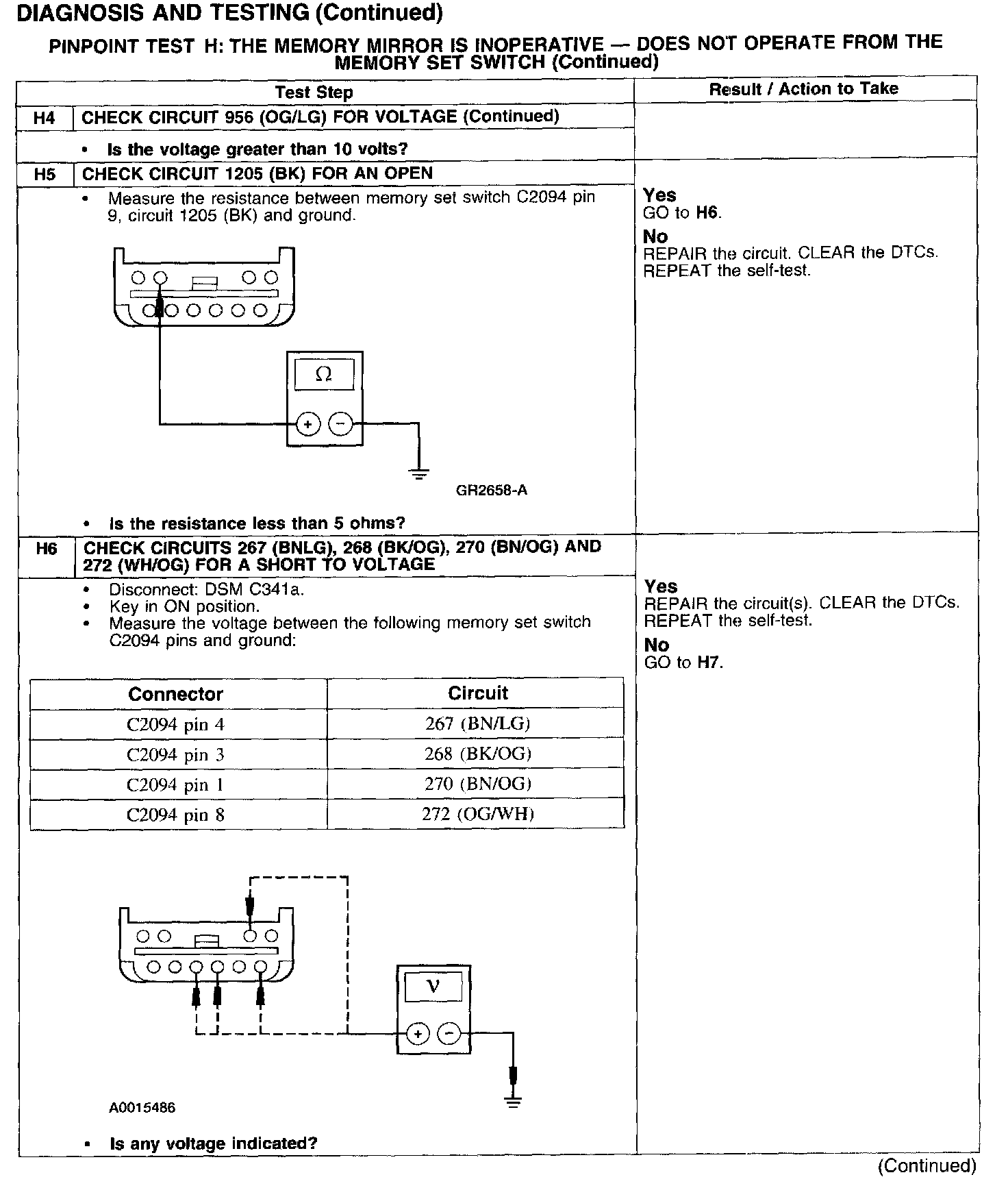

Test H4-H6:

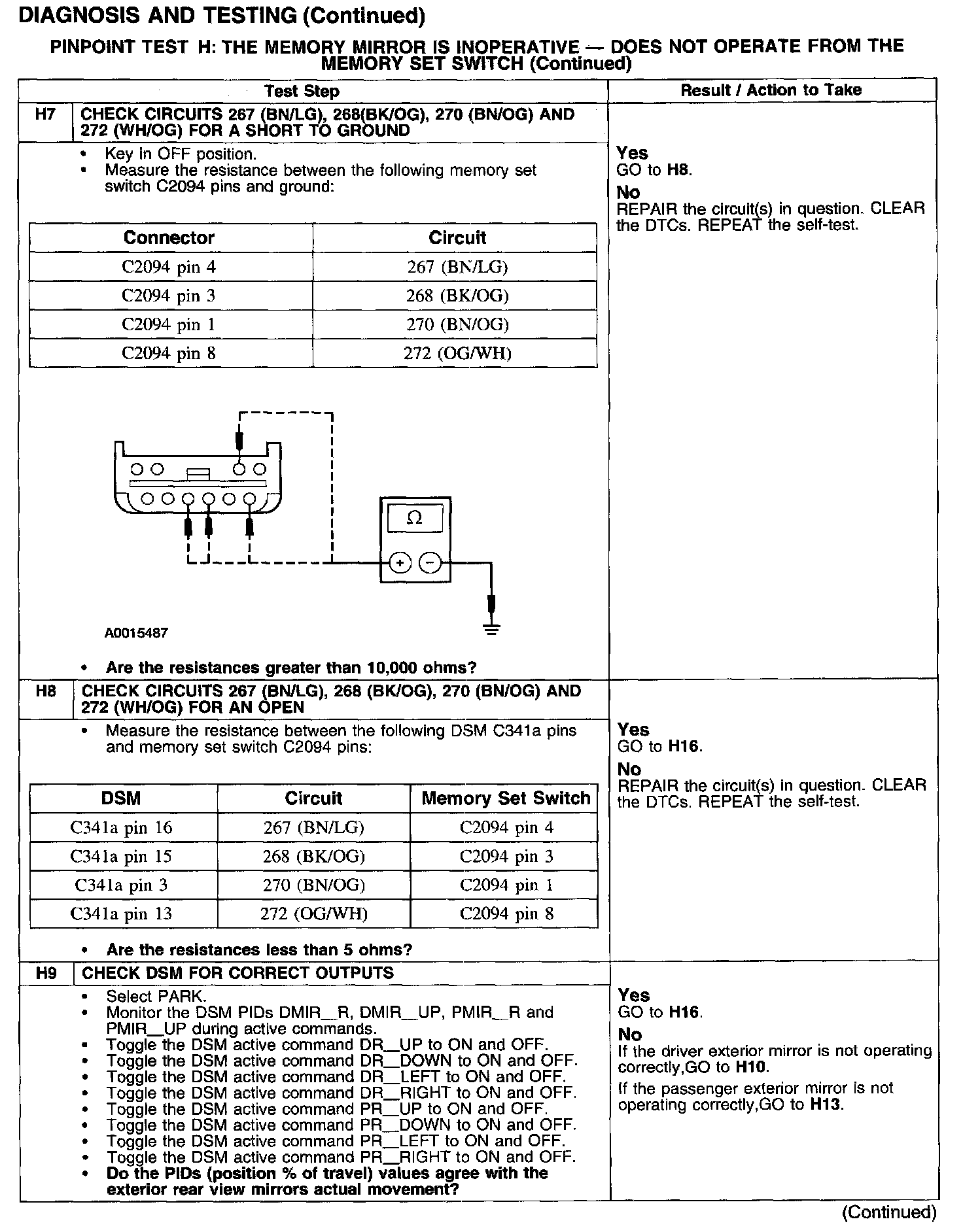

Test H7-H9:

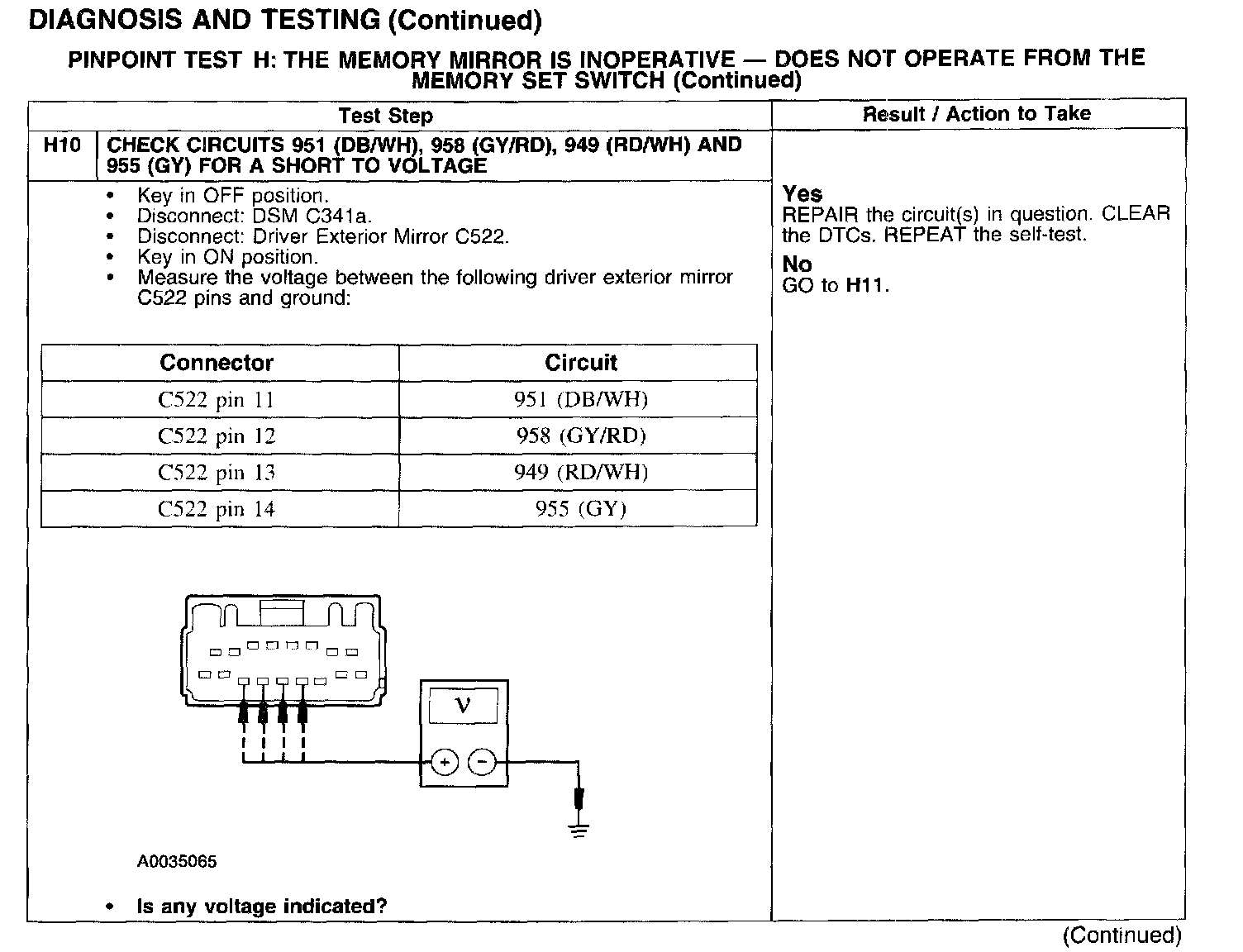

Test H10:

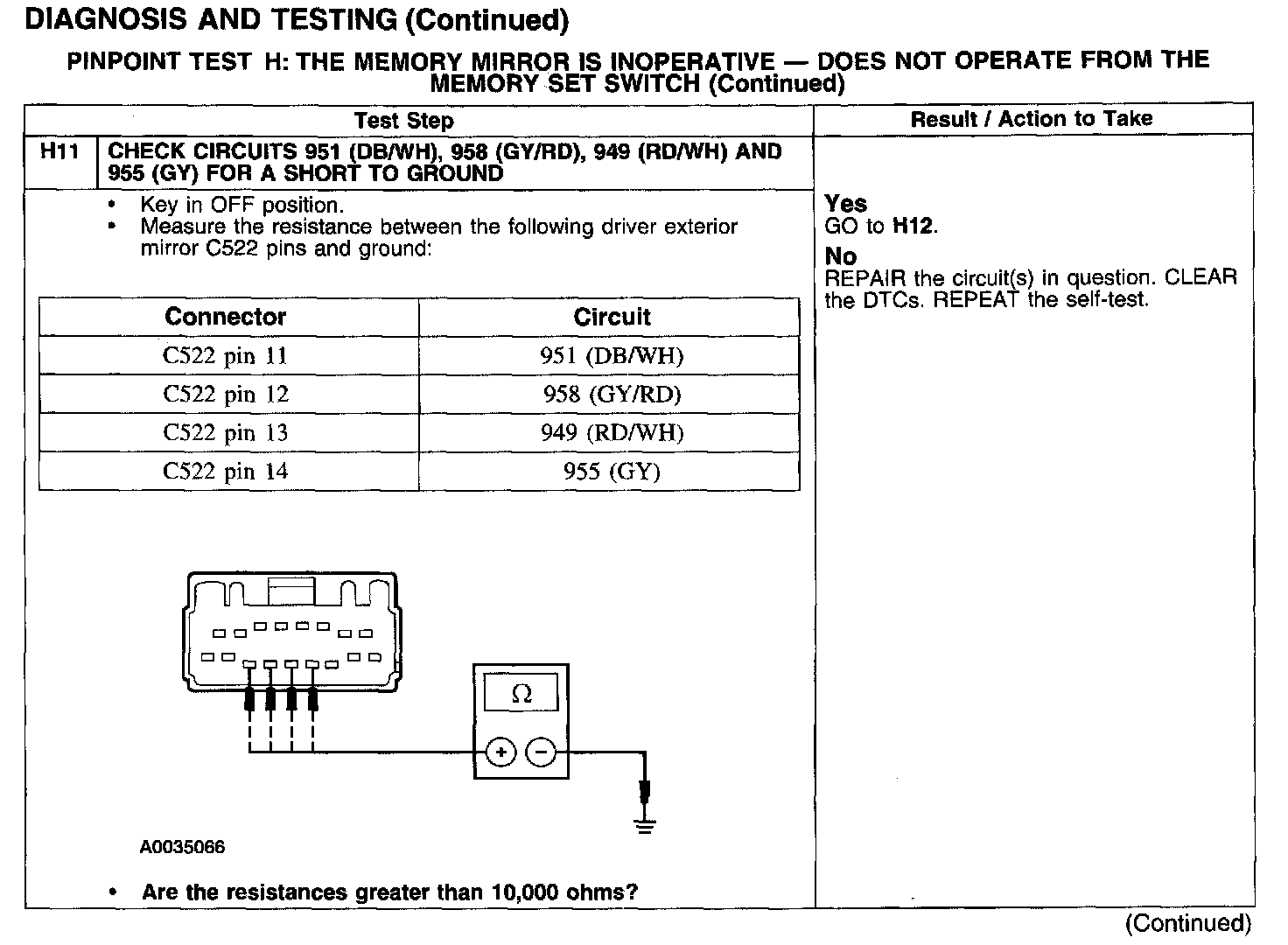

Test H11:

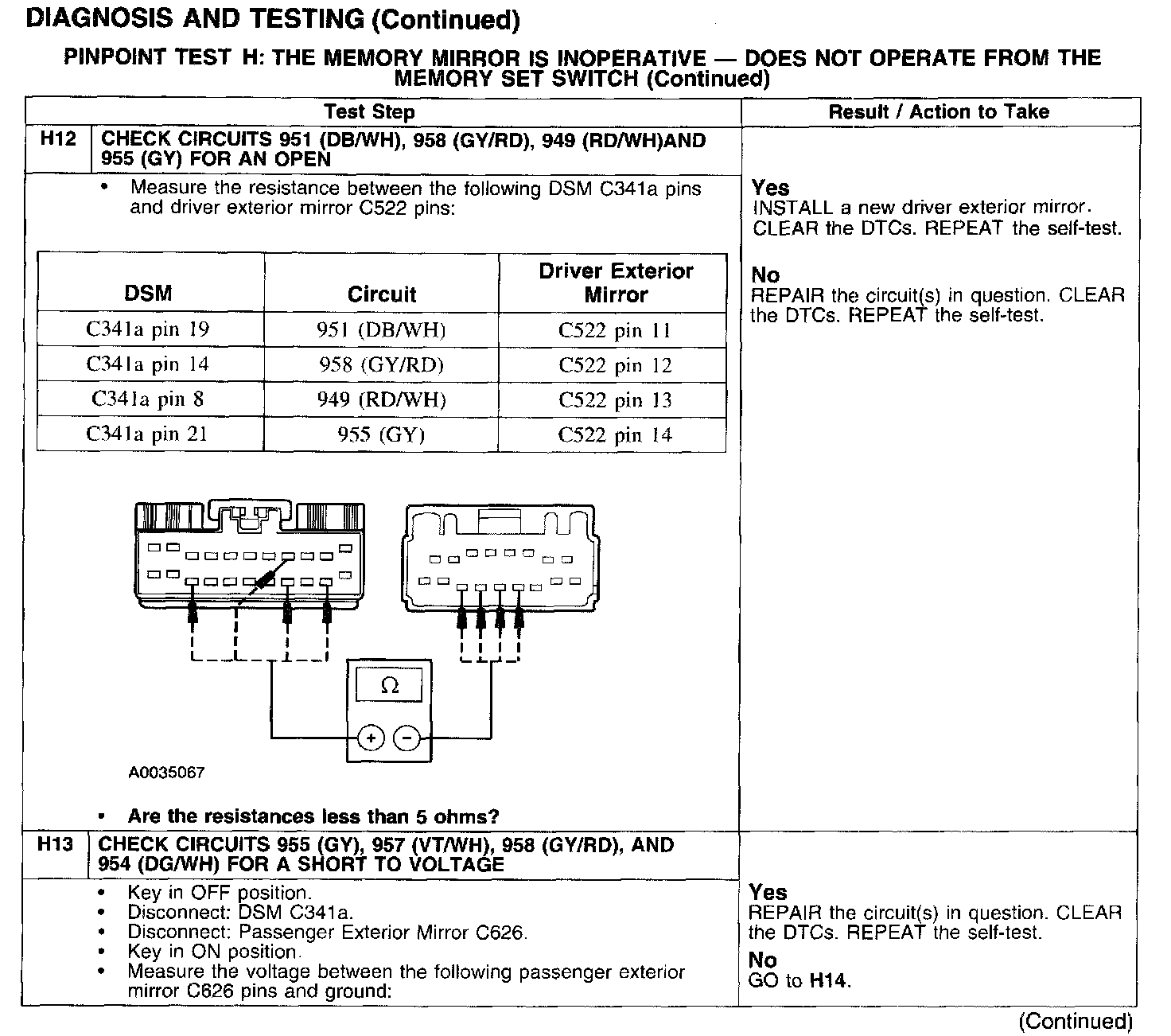

Test H12-H13:

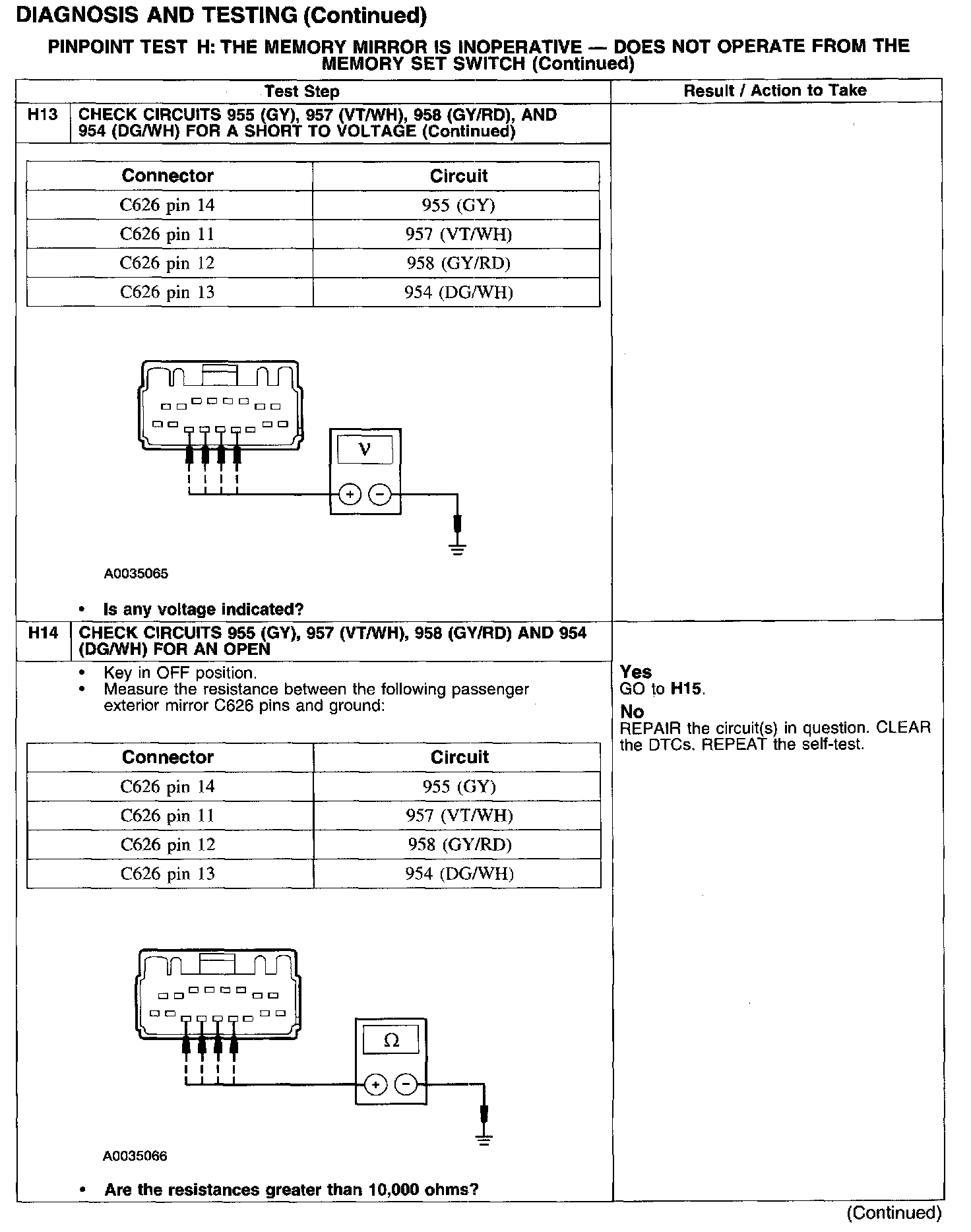

Test H13-H14:

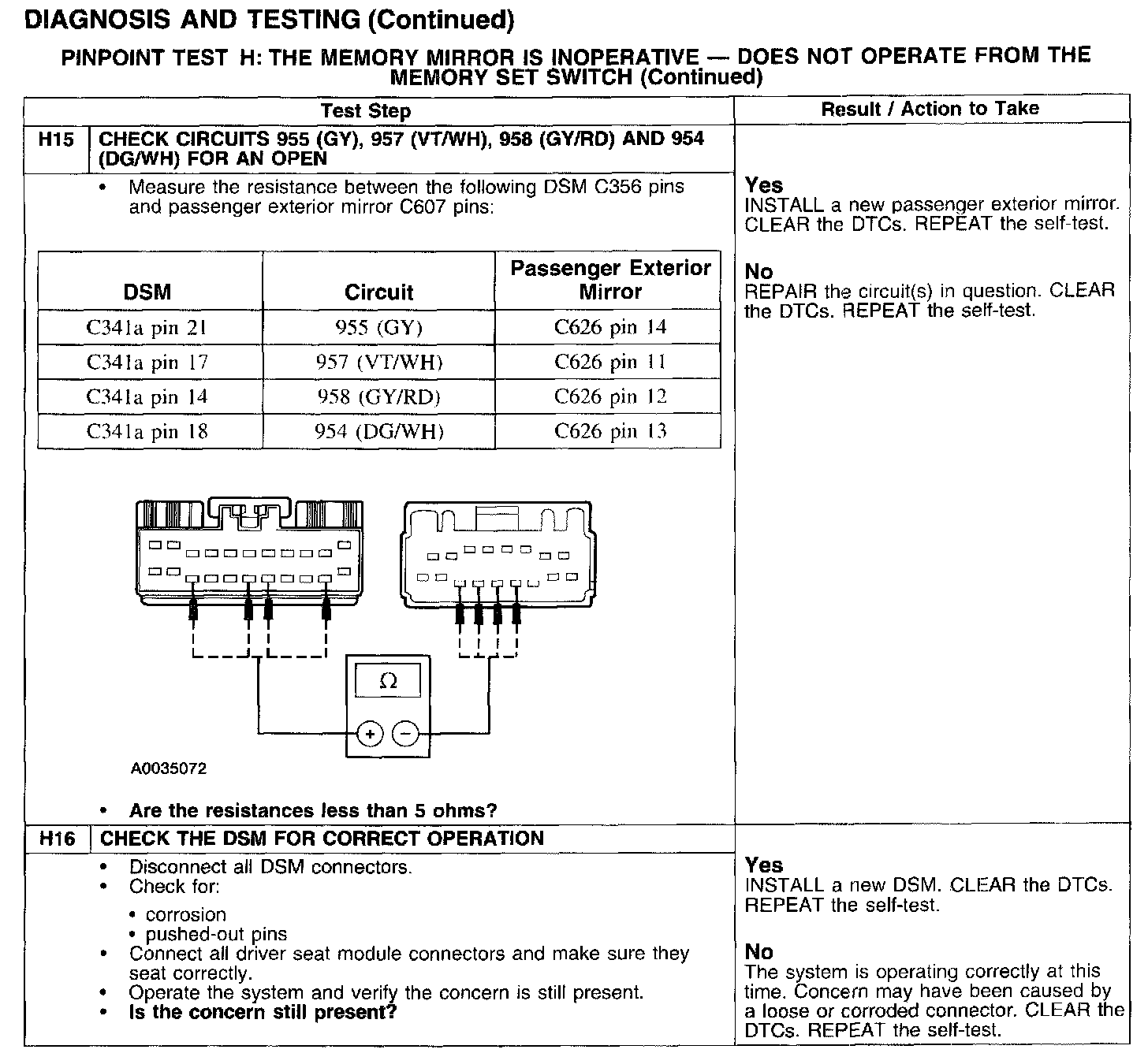

Test H15-H16:
