Test F

PINPOINT TEST F: THE POWER LUMBAR IS INOPERATIVE

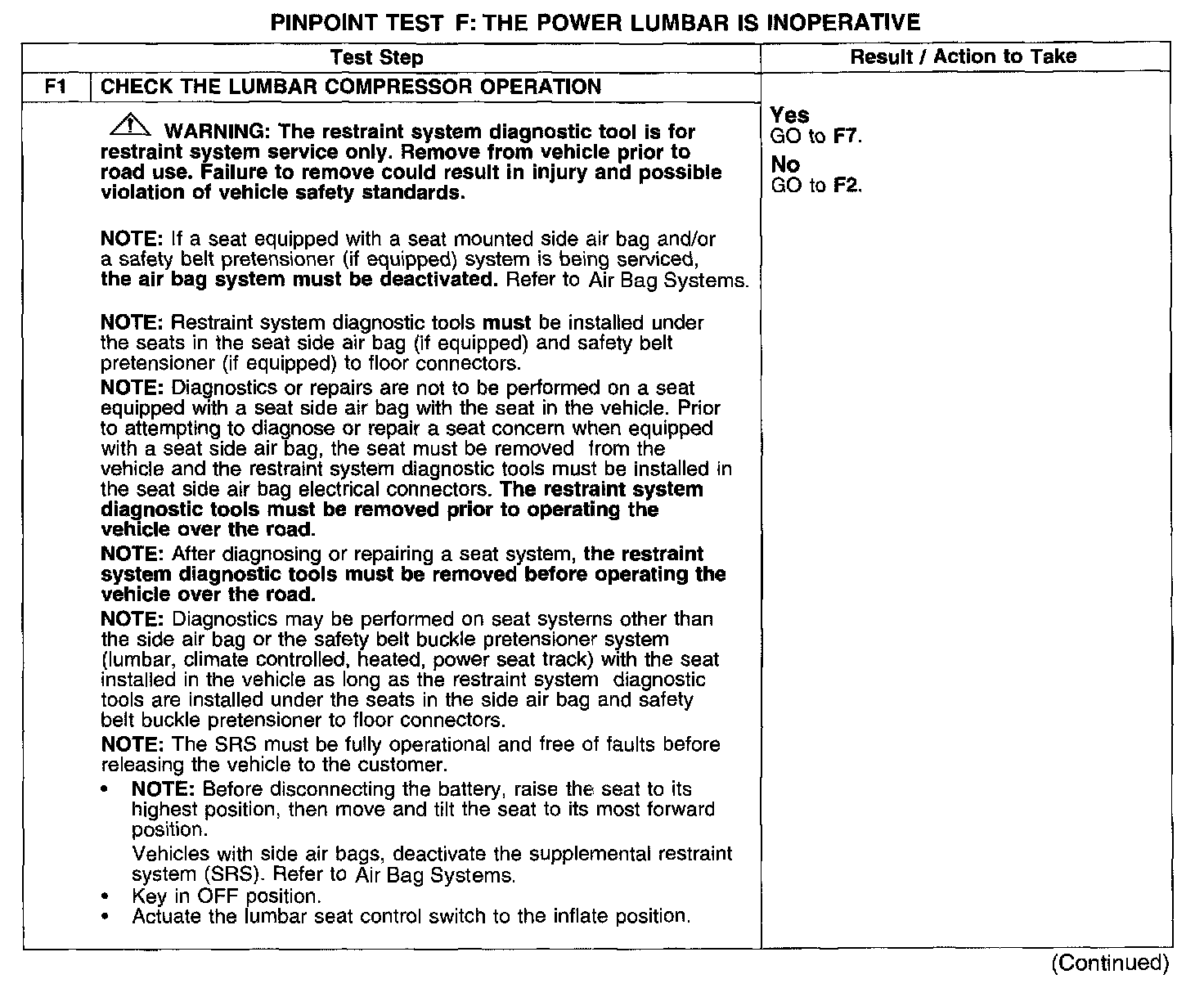

Test F1:

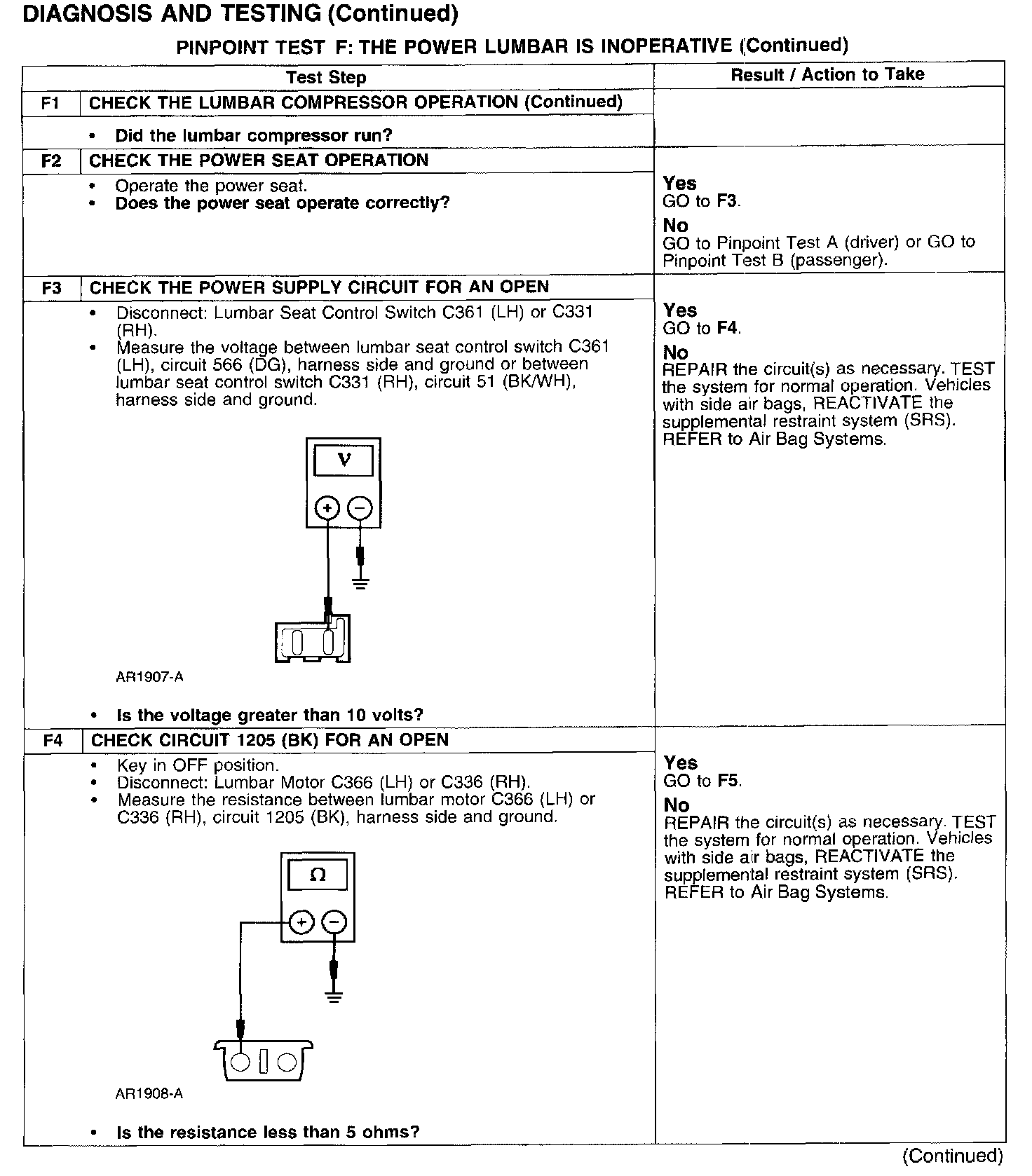

Test F1-F4:

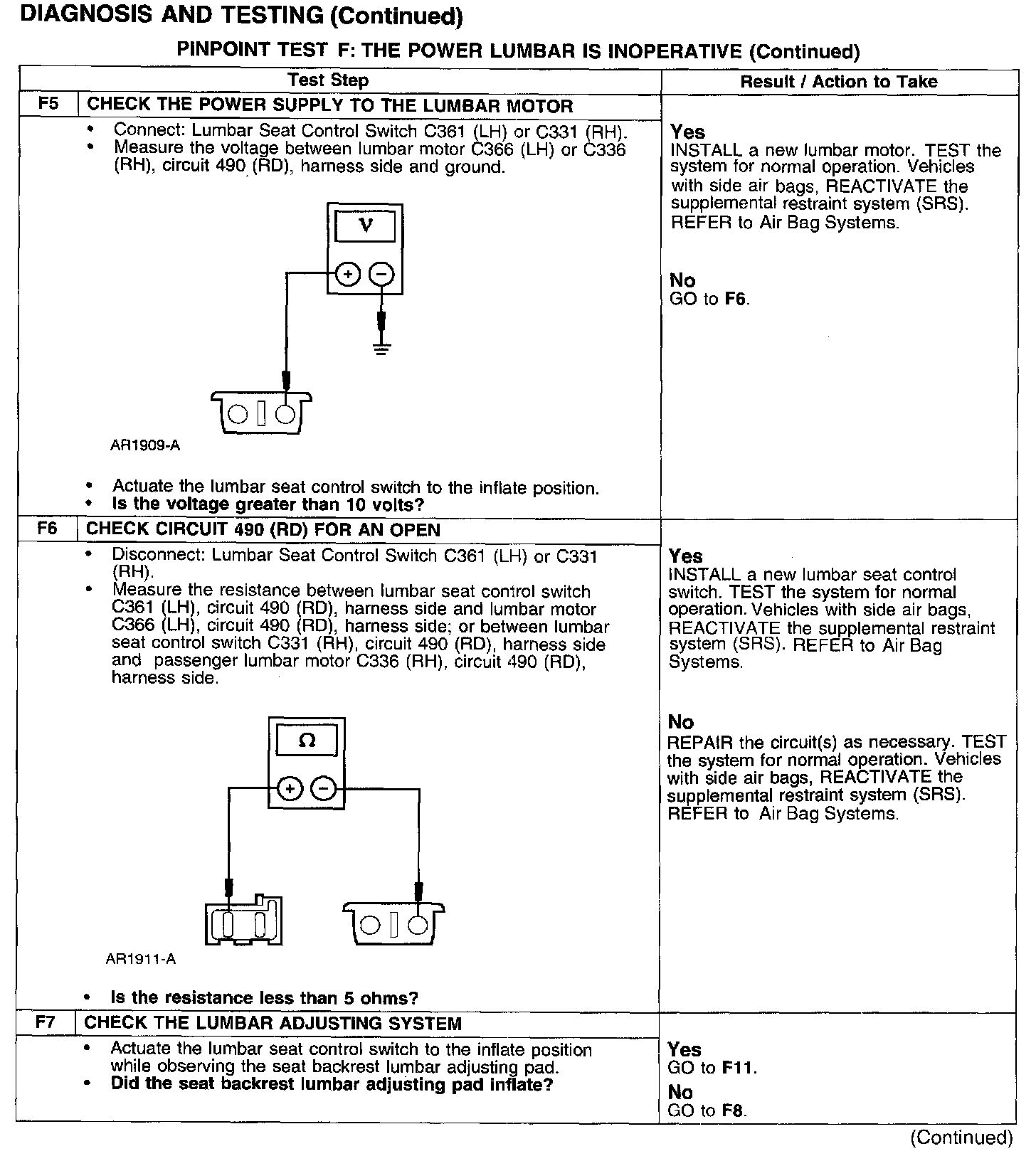

Test F5-F7:






Test F8-F11:

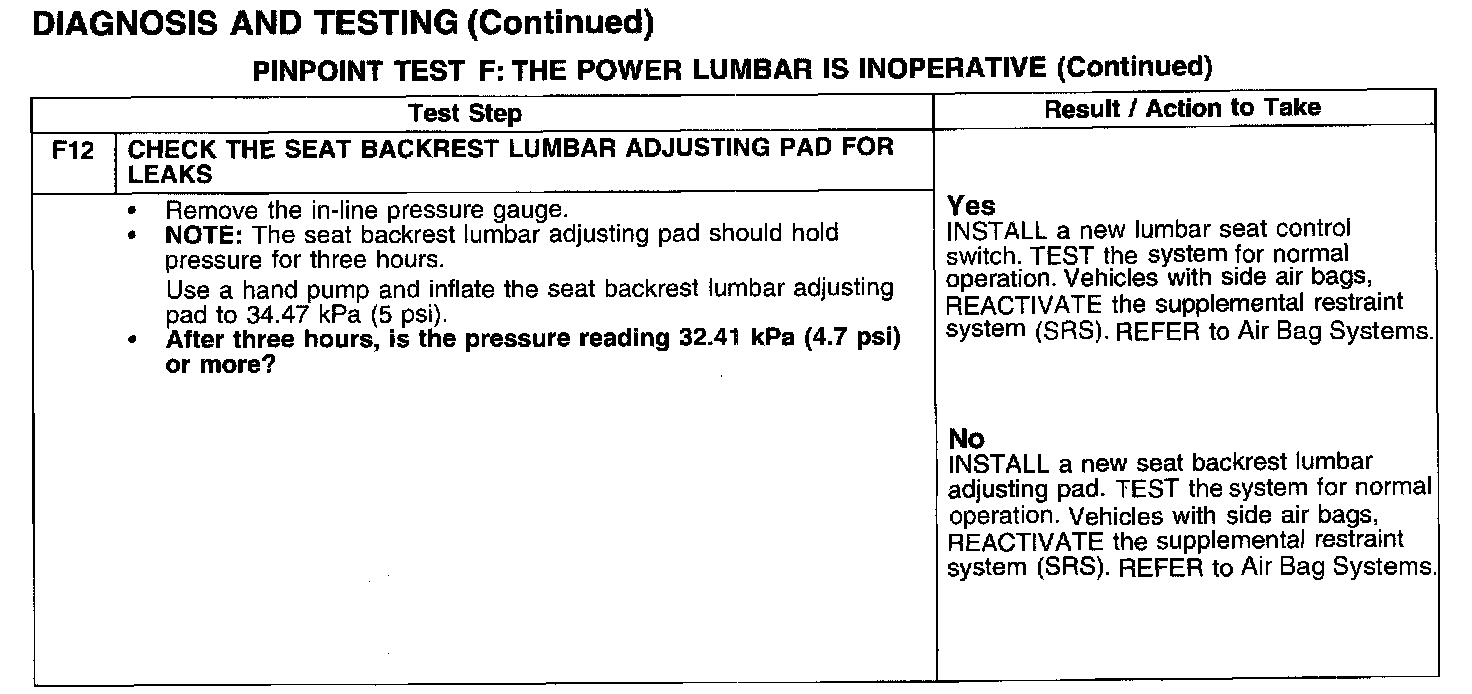

Test F12:
