Test K
Test K
PINPOINT TEST K: THE HEATED SEAT IS INOPERATIVE - SEAT DOES NOT HEAT BUT THE HEATED SEAT SWITCH ILLUMINATES WHEN PRESSED

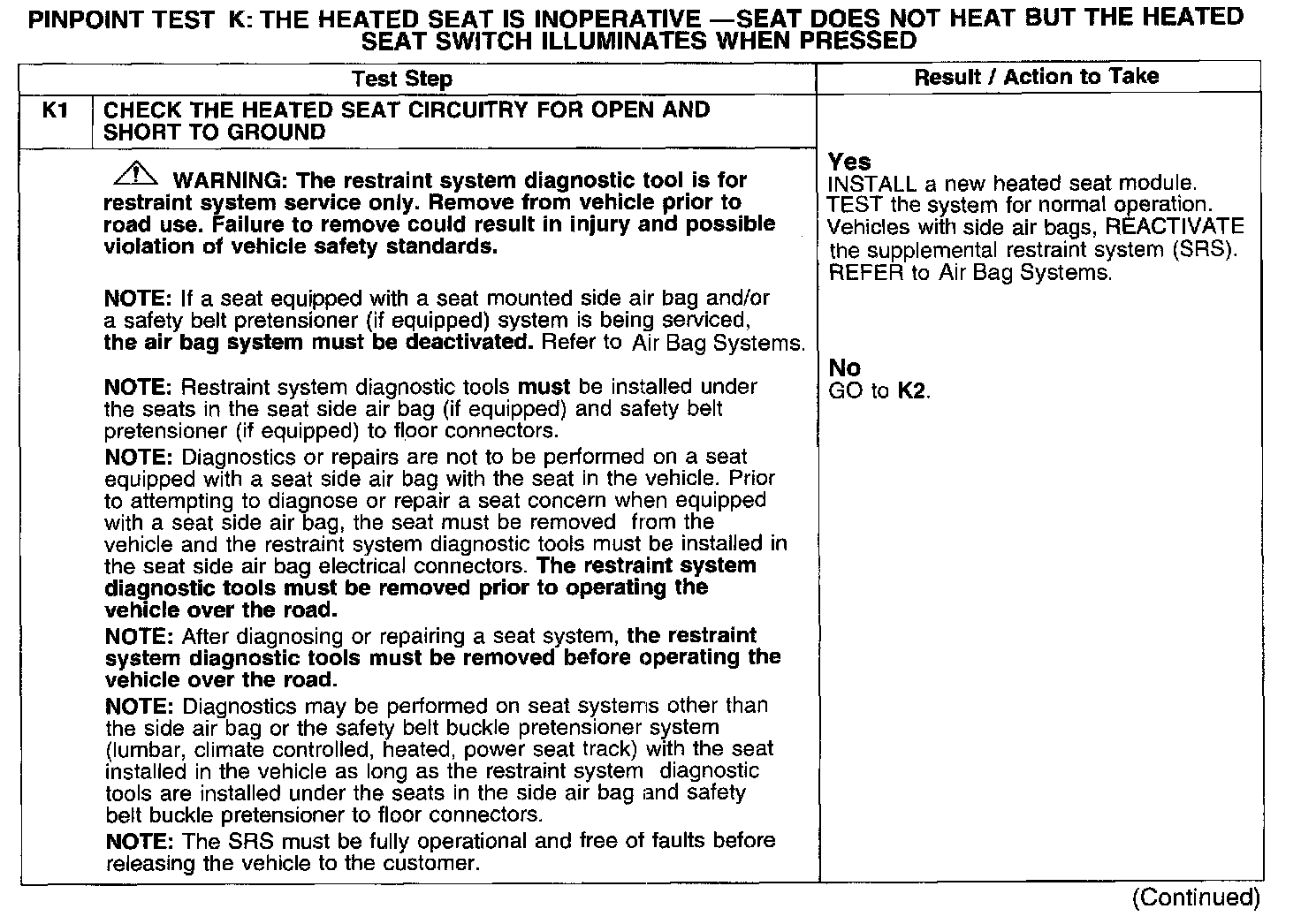

Test K1:

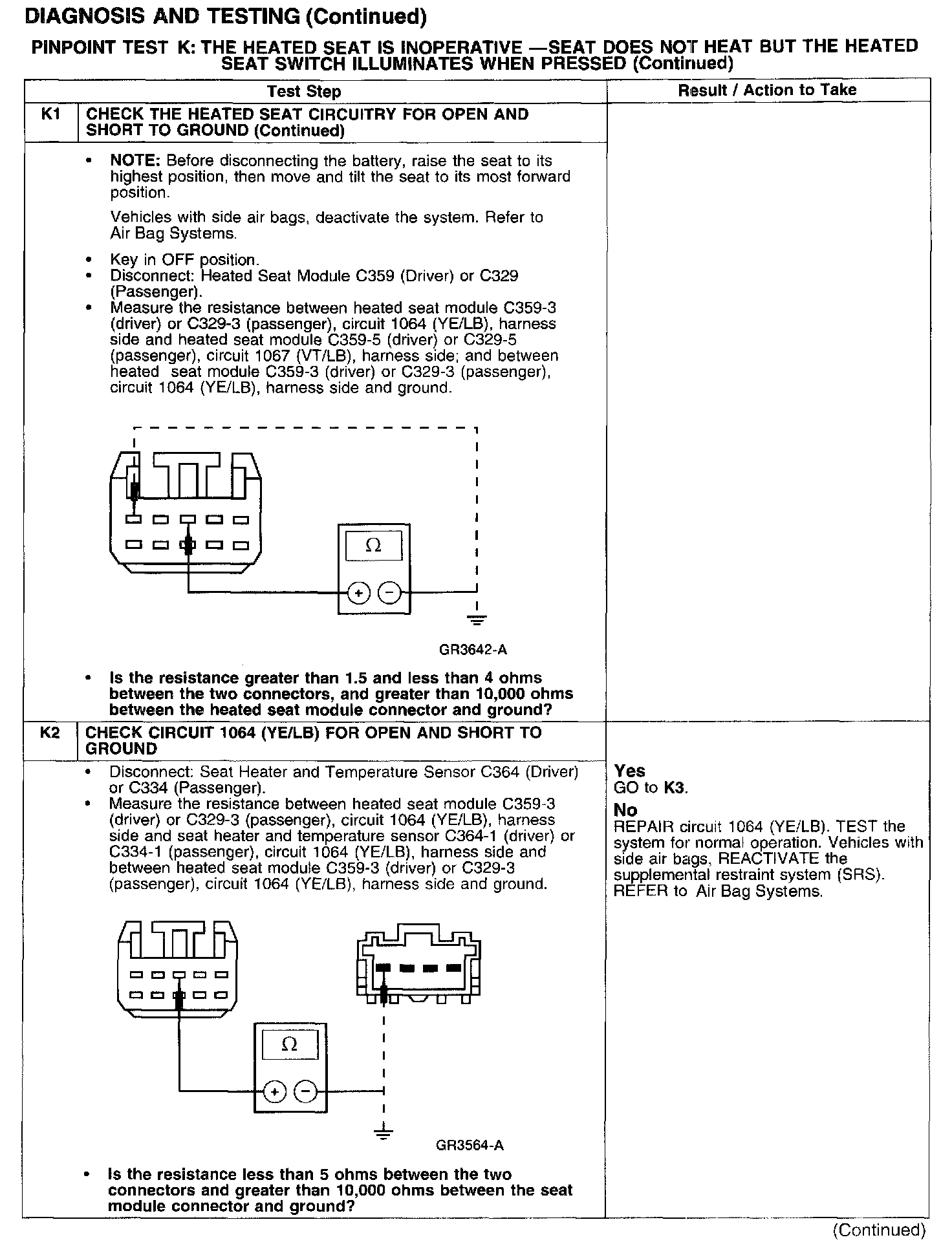

Test K1-K2:
Test K3-K4:

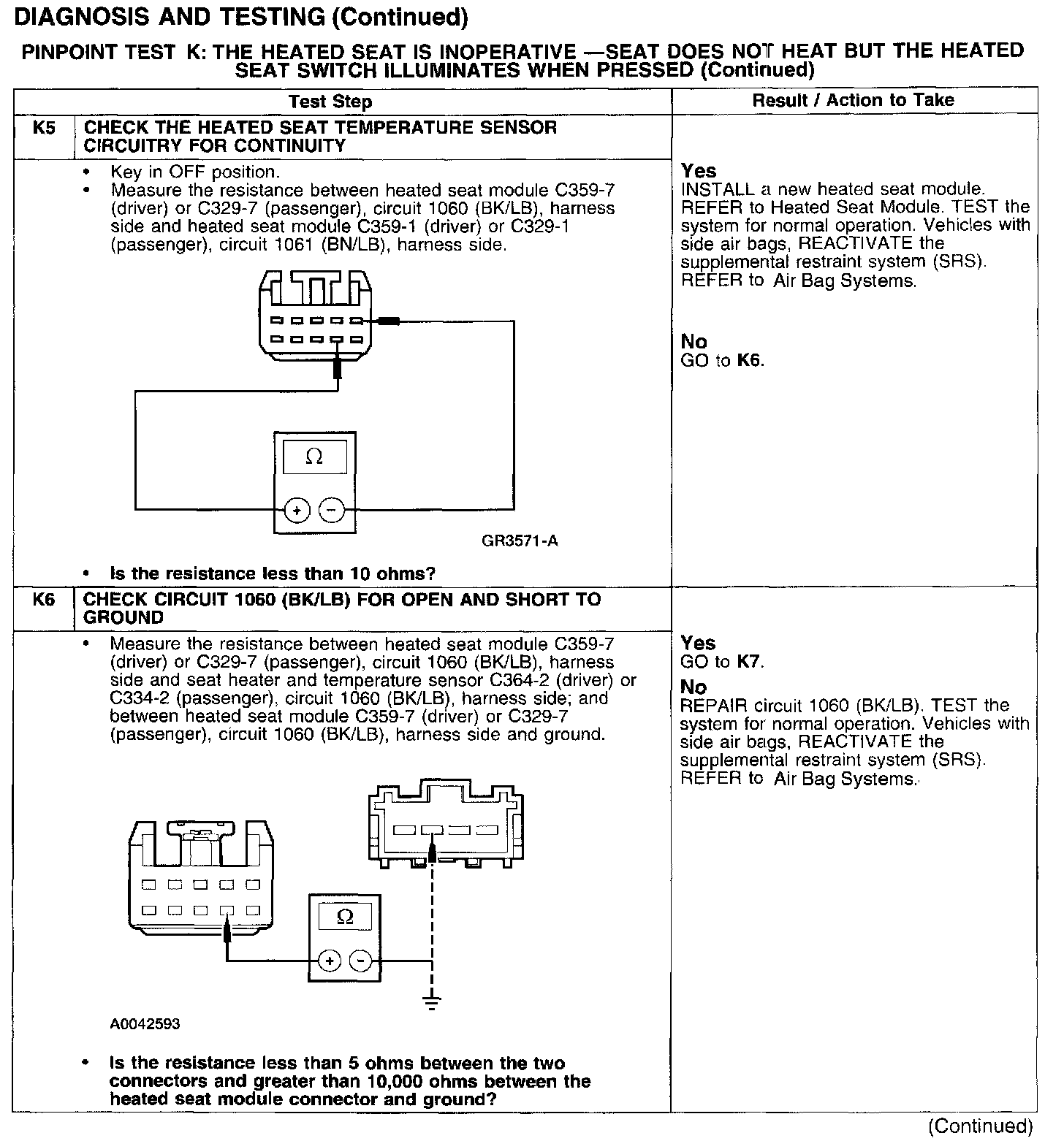

Test K5-K6:
Test K7:
