PINPOINT TEST L: THE HEATED SEAT IS INOPERATIVE - SEAT DOES HEAT BUT THE HEATED SEAT SWITCH DOES NOT ILLUMINATE WHEN PRESSED

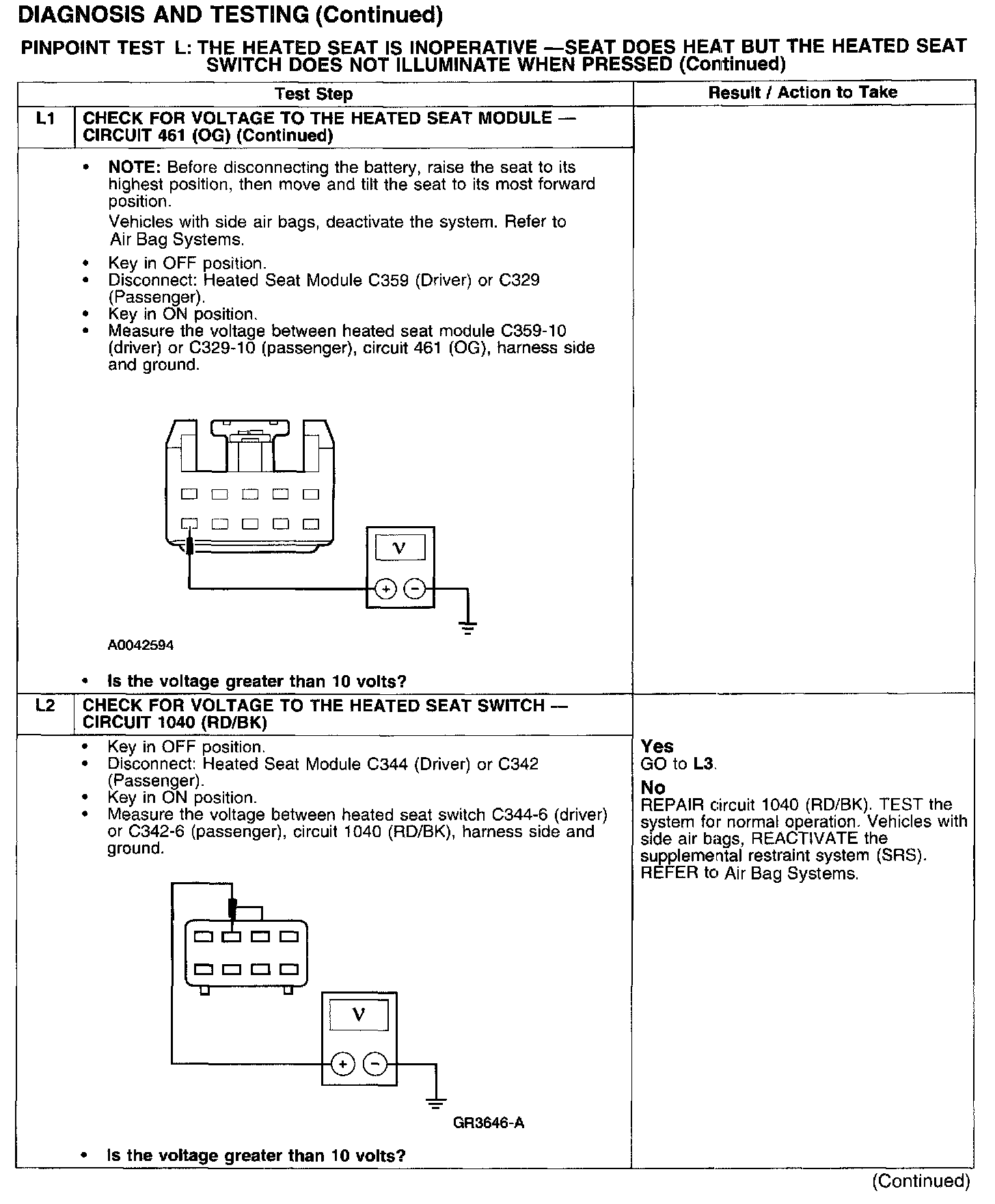

Test L1:
Test L1-L2:

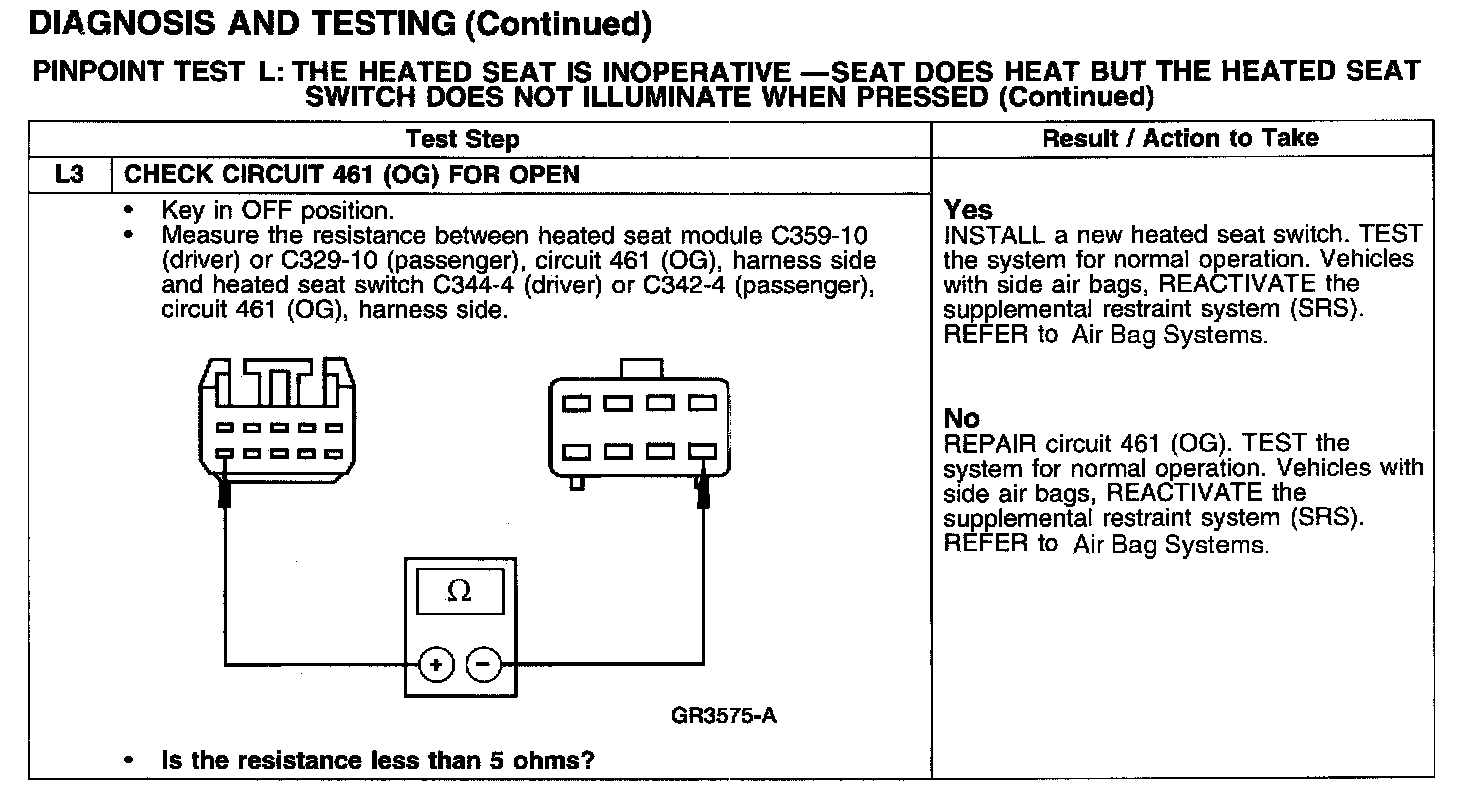

Test L3:
