Sensor, Front

Front Wheel Speed Sensor

Removal and Installation

NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces and apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford specification ESA-M1C198-A.

1. Raise and support the vehicle.

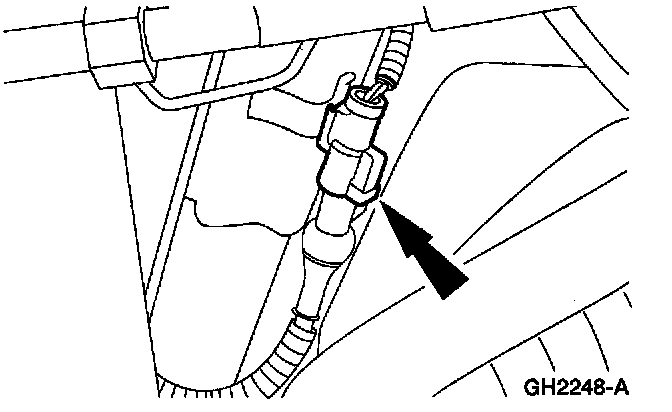

2. Disconnect the anti-lock brake sensor electrical connector.

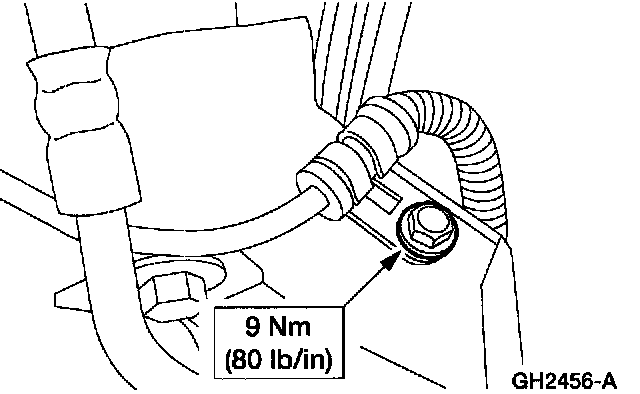

3. Remove the anti-lock brake sensor cable clip bolt from the front wheel knuckle.

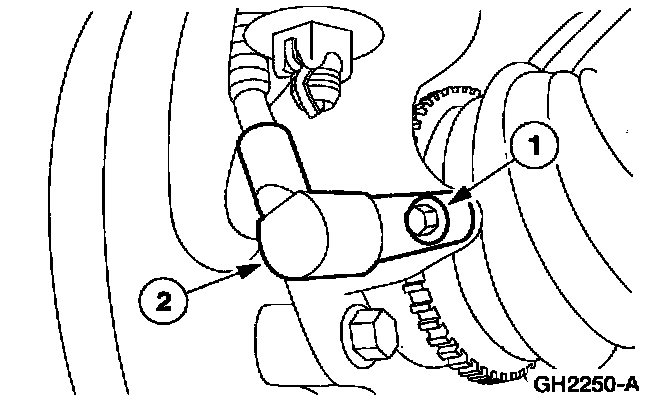

4. Remove the anti-lock brake sensor.
1 Remove the bolt.
2 Remove the anti-lock brake sensor.

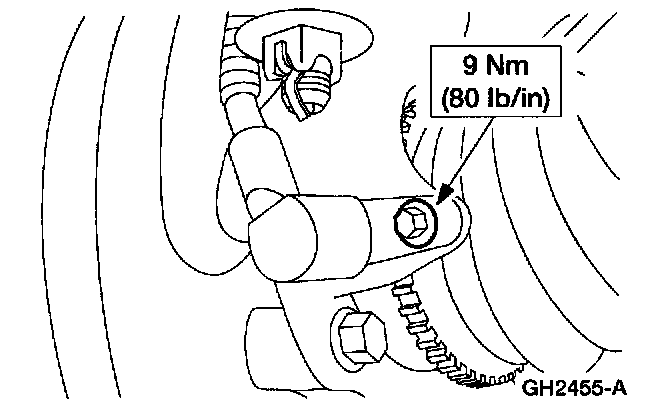

5. To install, reverse the removal procedure.
