Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B
Test B

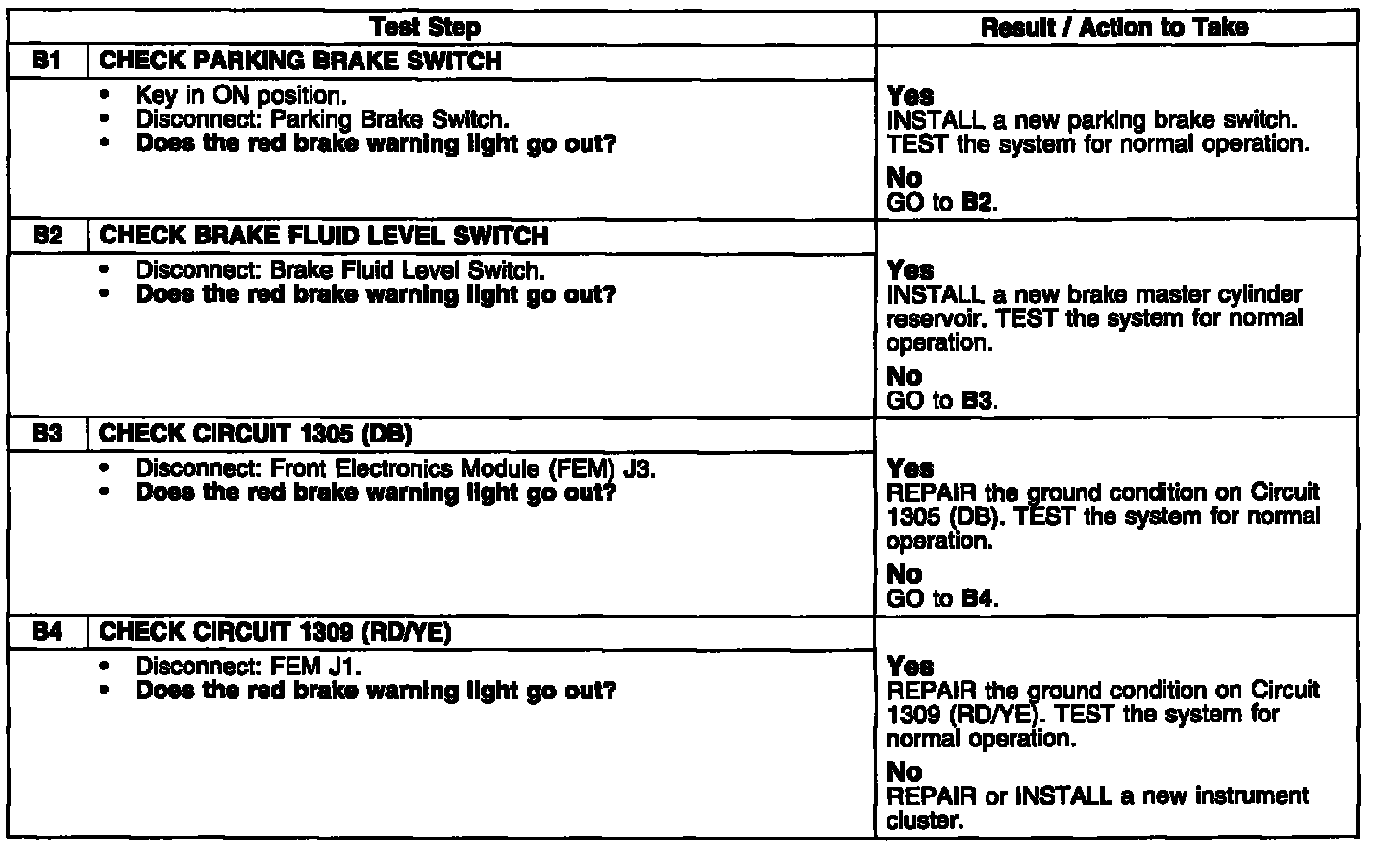

PINPOINT TEST B: RED
BRAKE WARNING INDICATOR
ALWAYS ON
Test B1 - B4:
