Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test E
Test E
PINPOINT TEST E: ADJUSTABLE BRAKE PEDAL DOES NOT OPERATE/DOES NOT OPERATE CORRECTLY

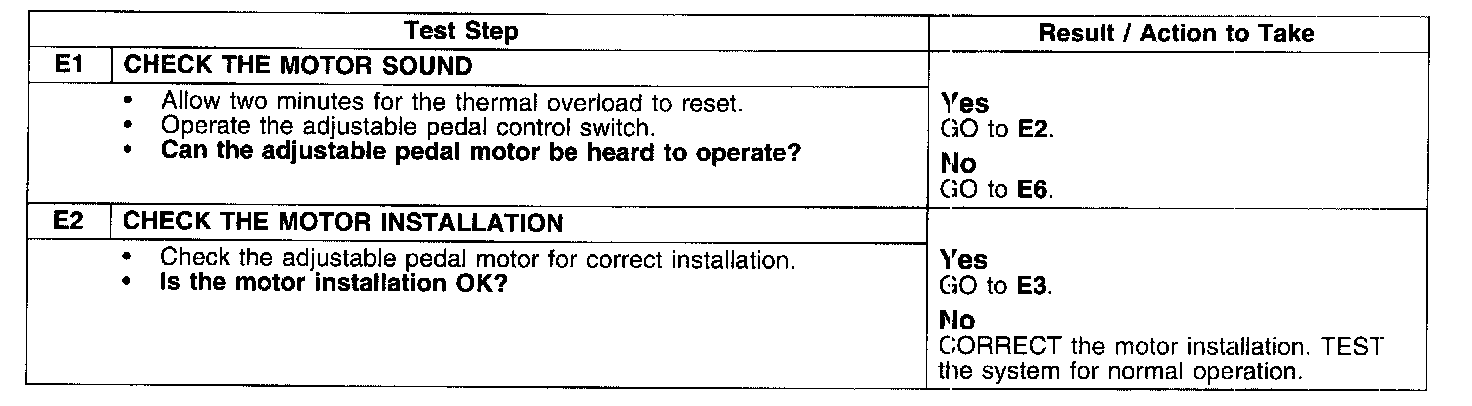

Test E1 - E2:
Test E3 - E5:

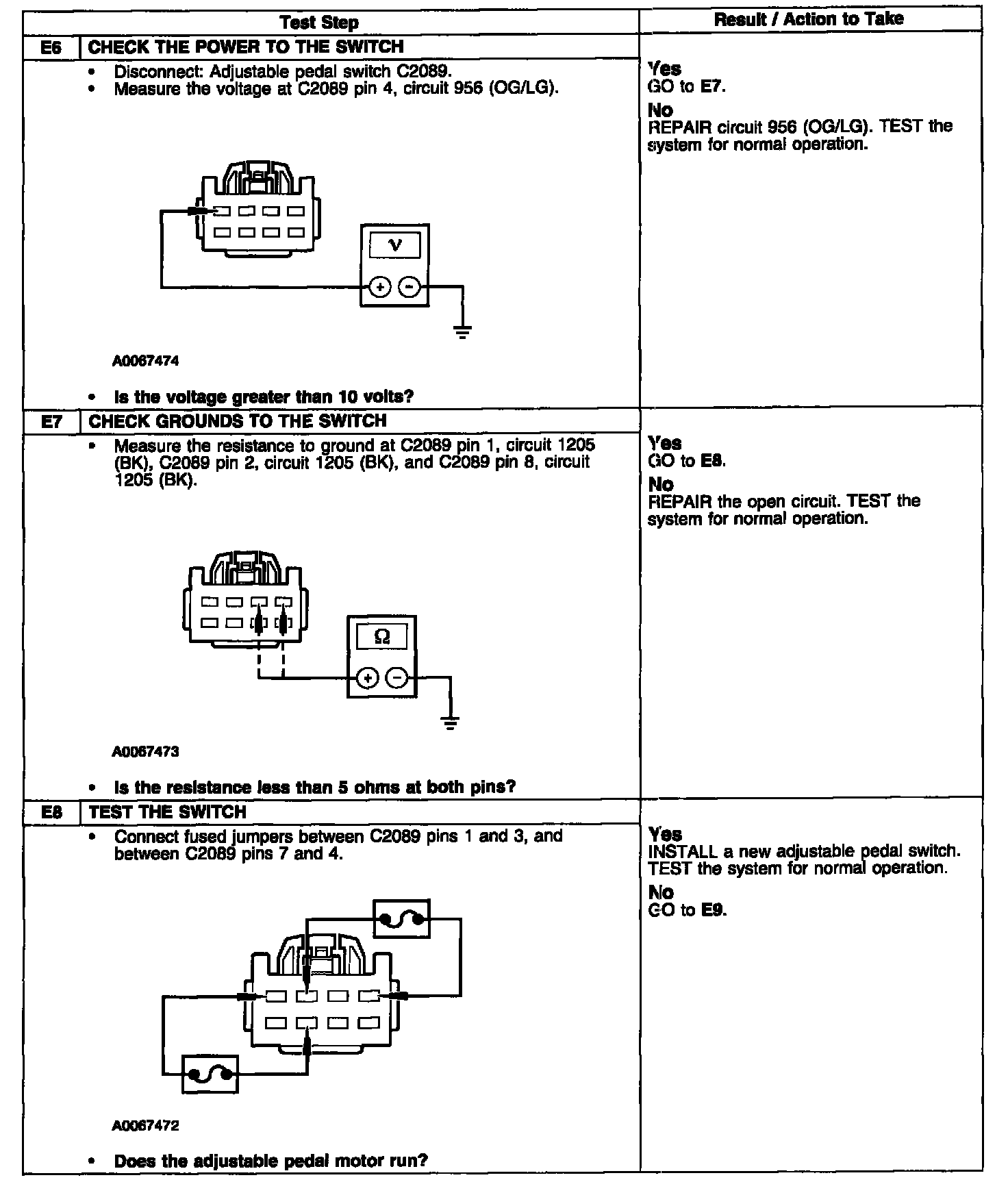

Test E6 - E8:

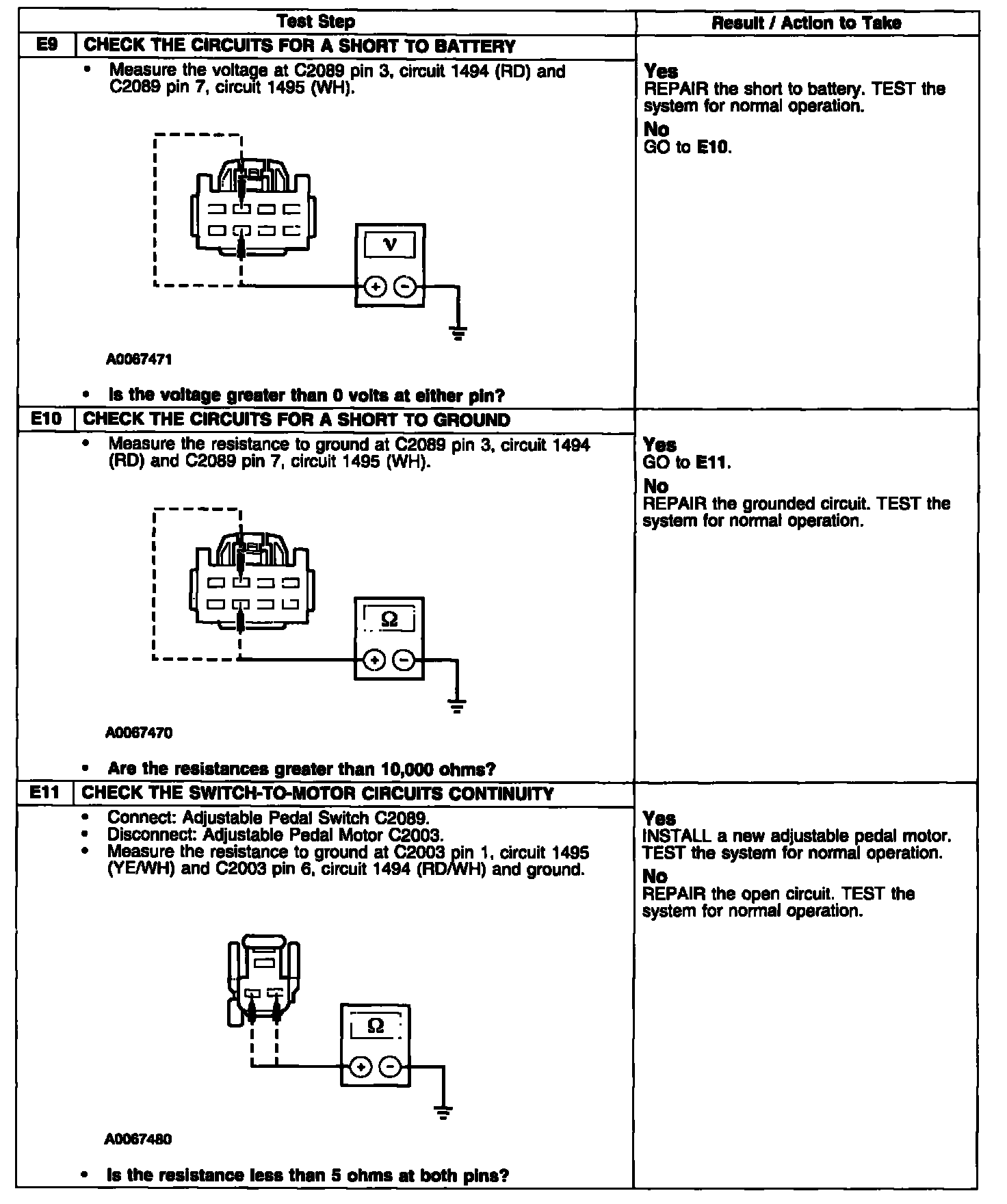

Test E9 - E11:
