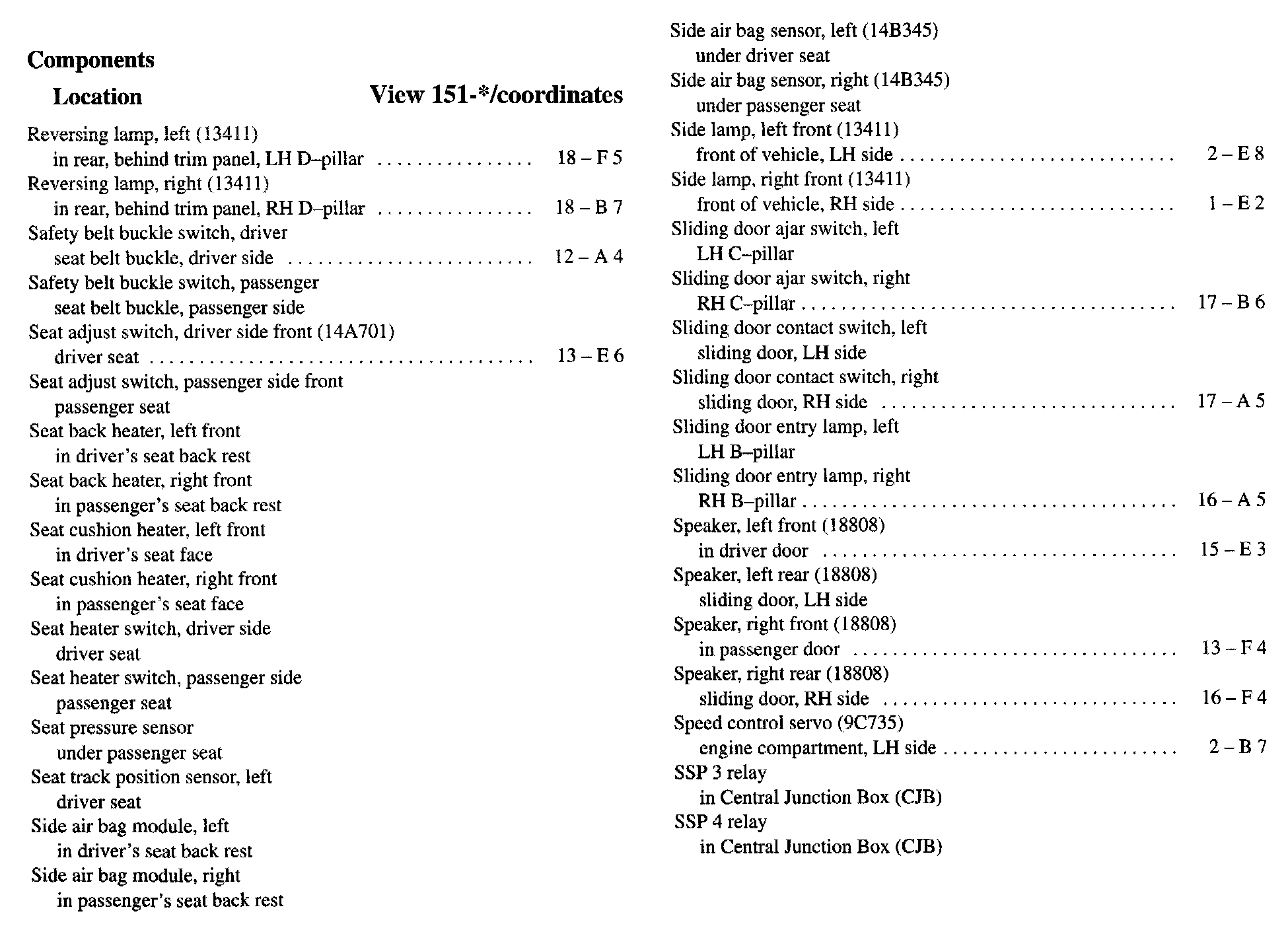

Component Location Index
PLEASE NOTE: If a link on the Component Location Index to a View is not provided, that means that the Component and/or View in question does NOT apply to the vehicle model selected.

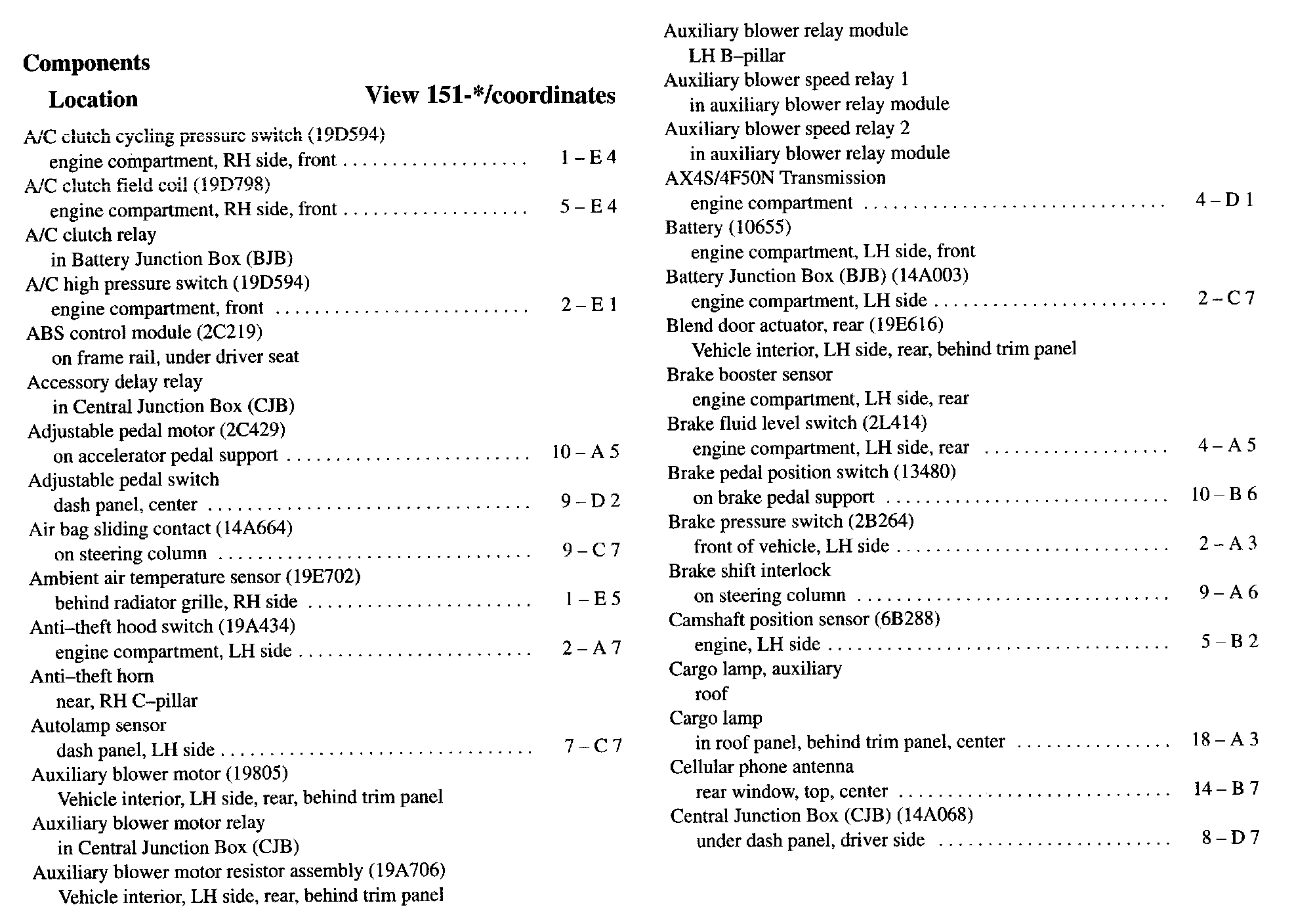

A/C - Ce:

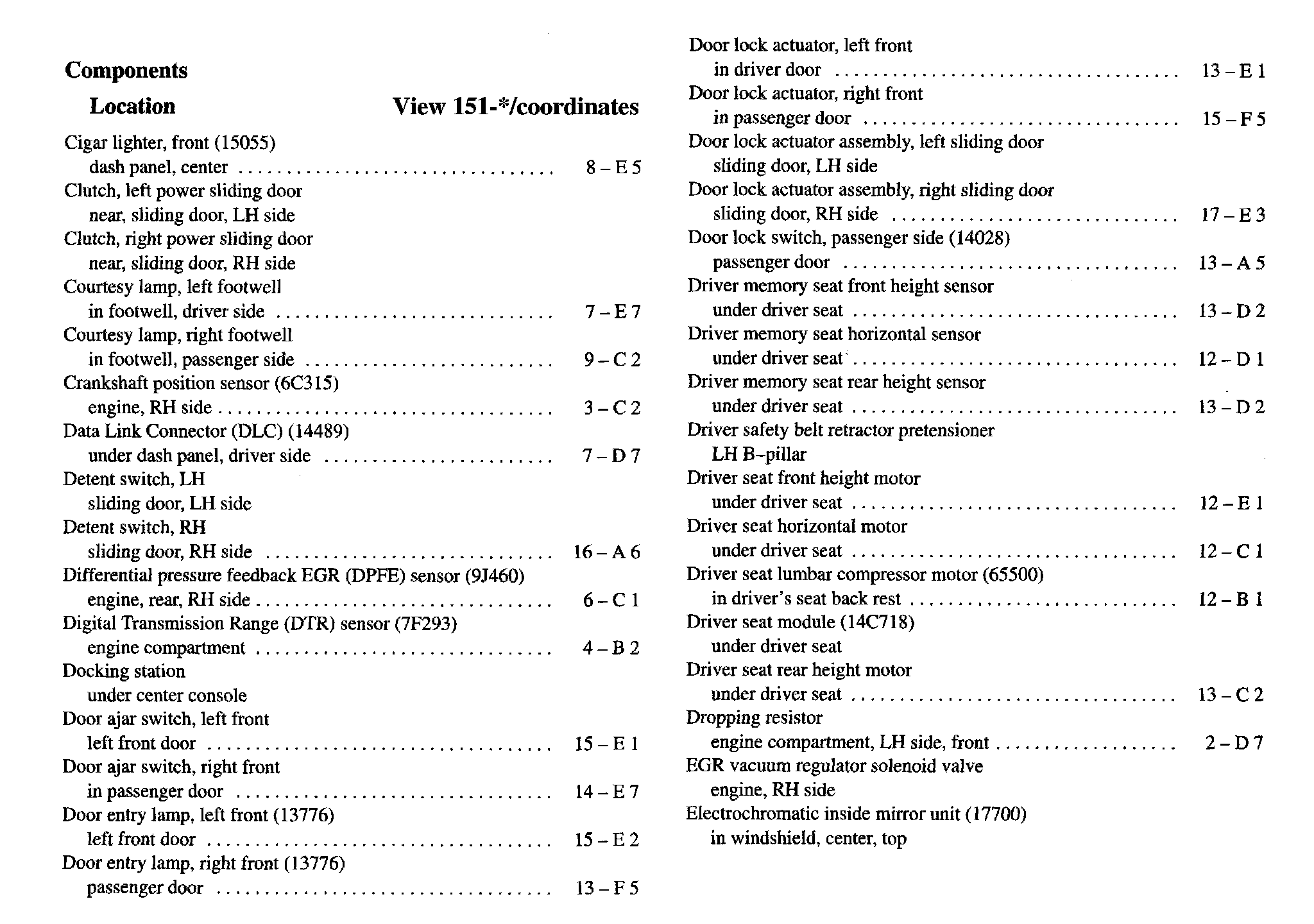

Ci - El:

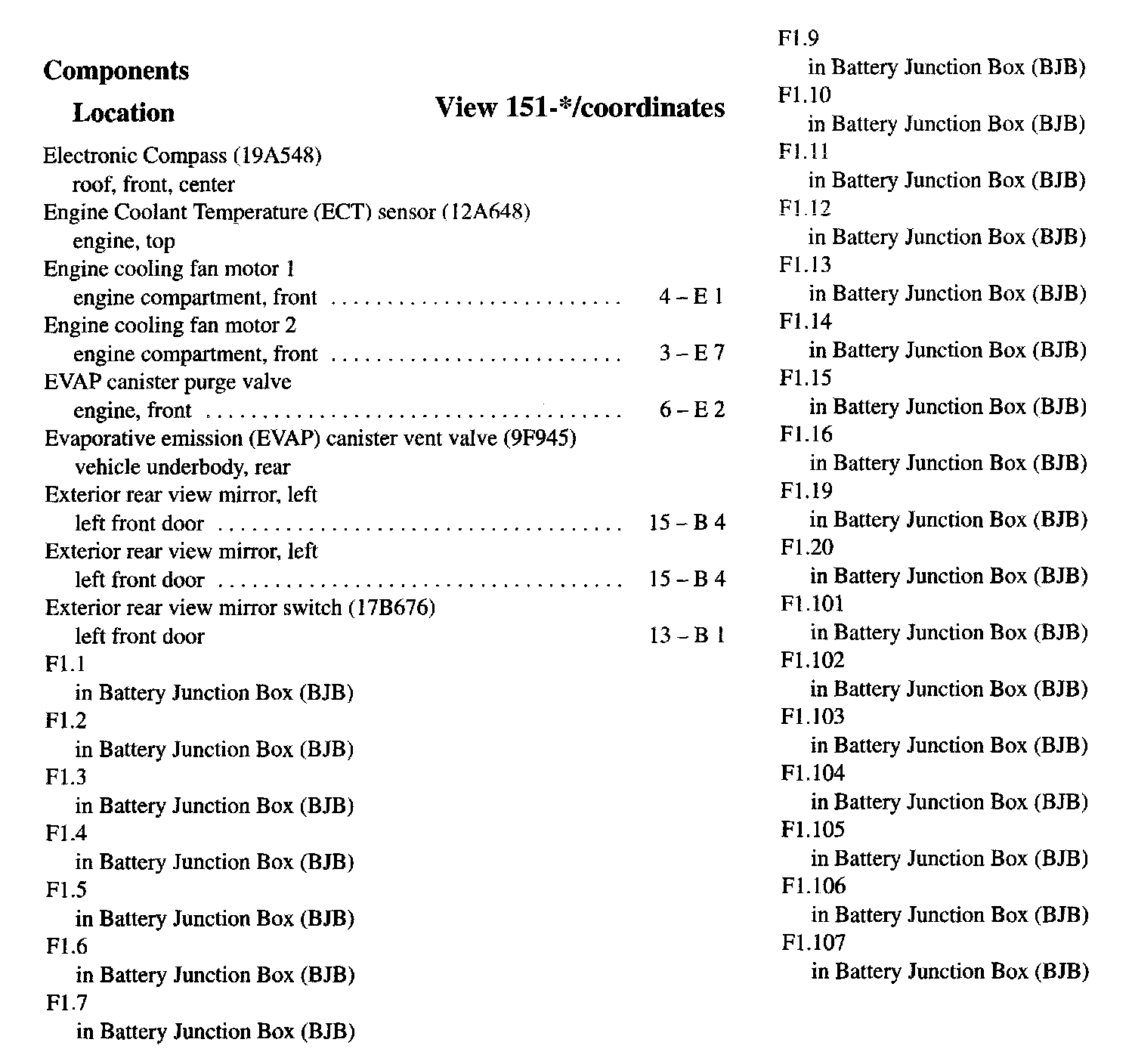

El - F1.107:

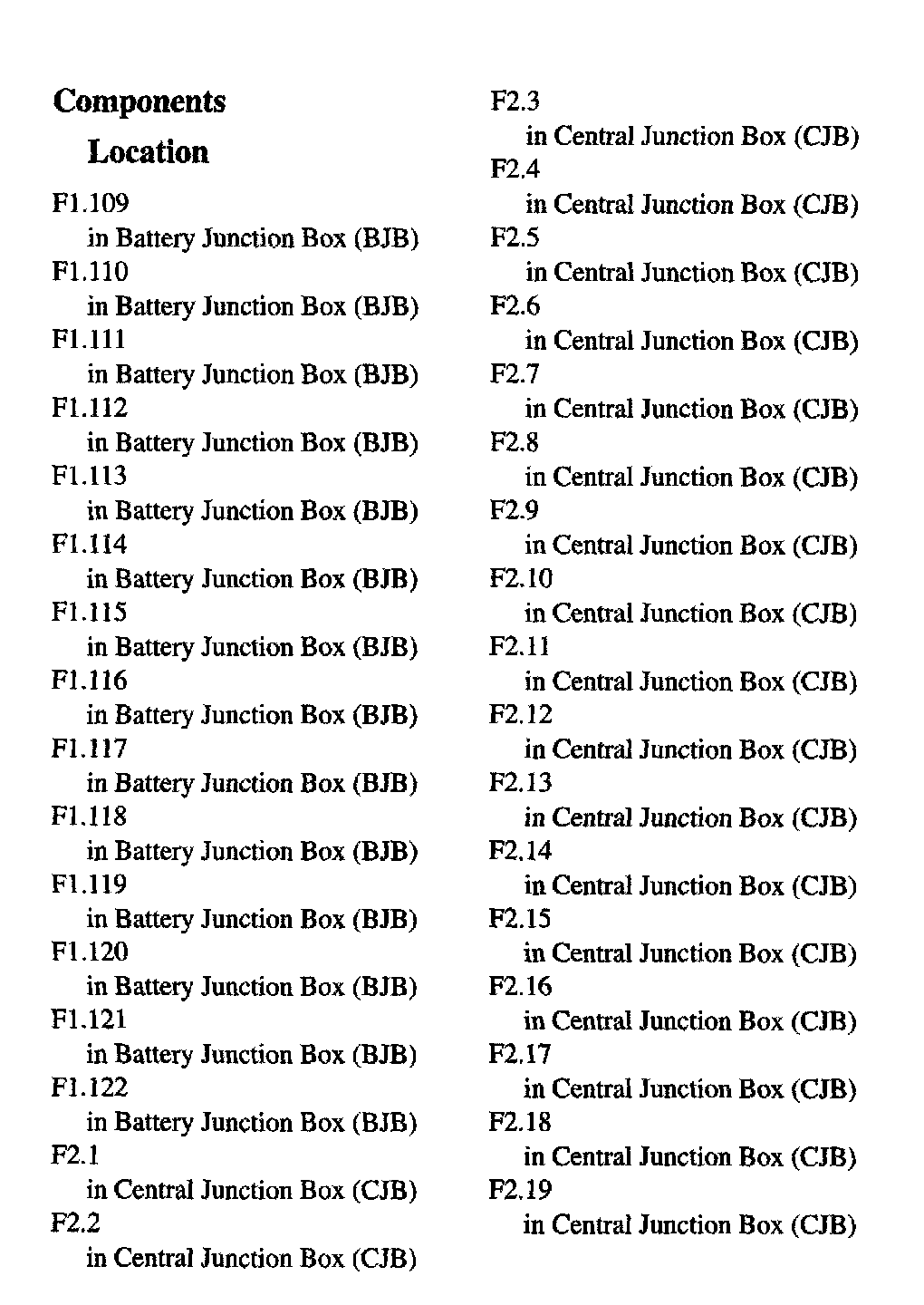

F1.109 - F2.19:

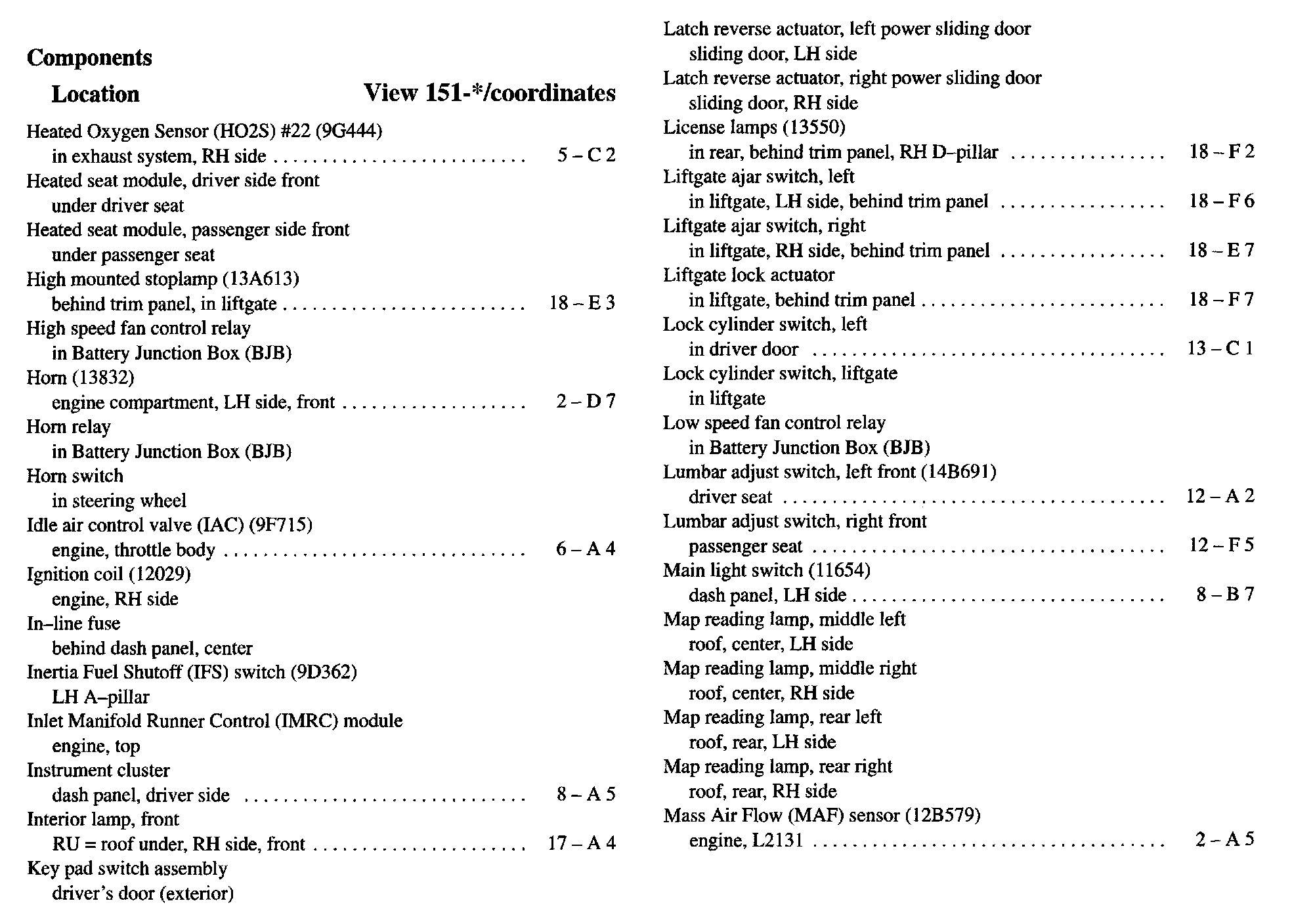

F2.22 - He:

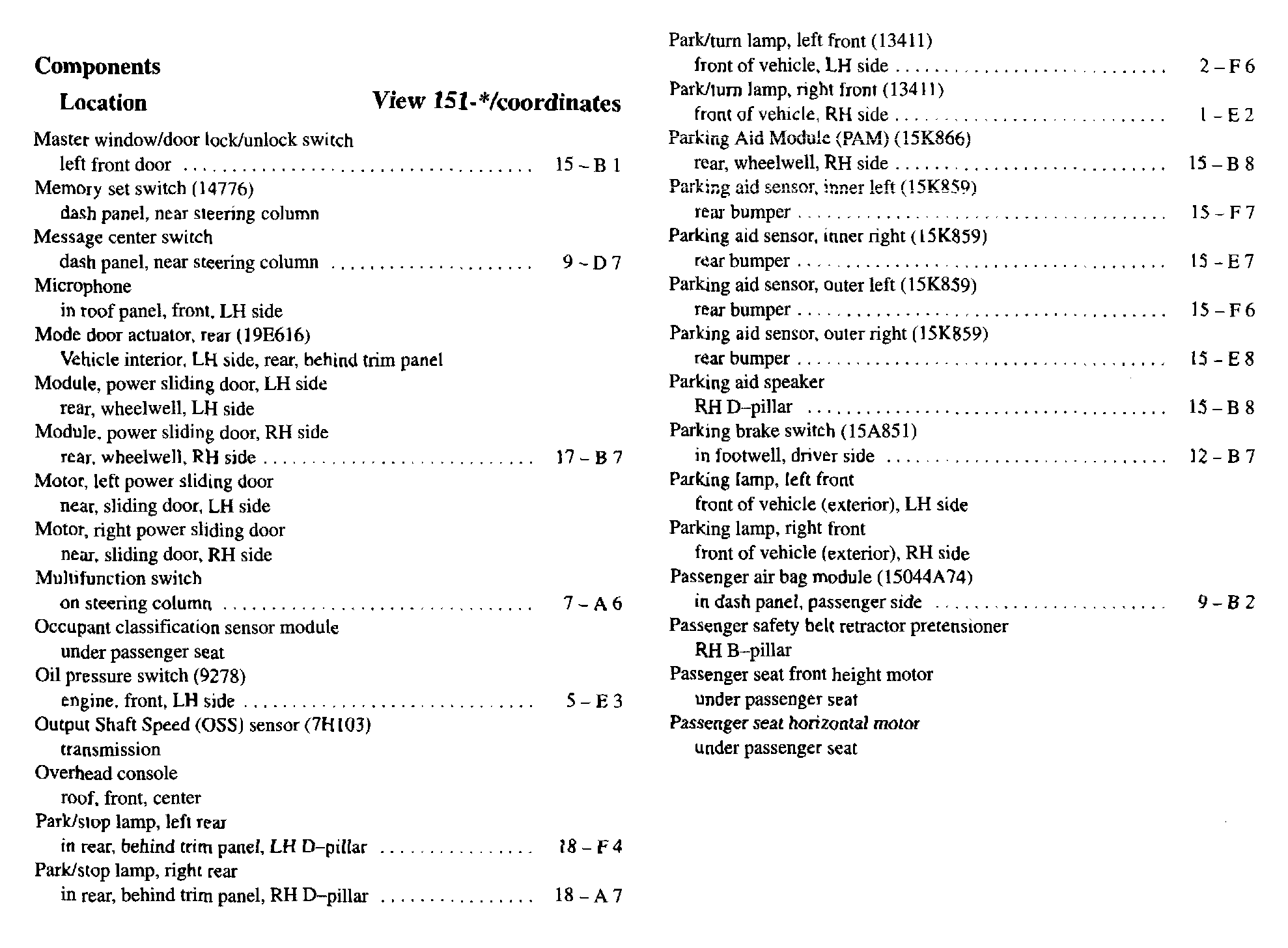

He - Ma:
Ma - Pa:

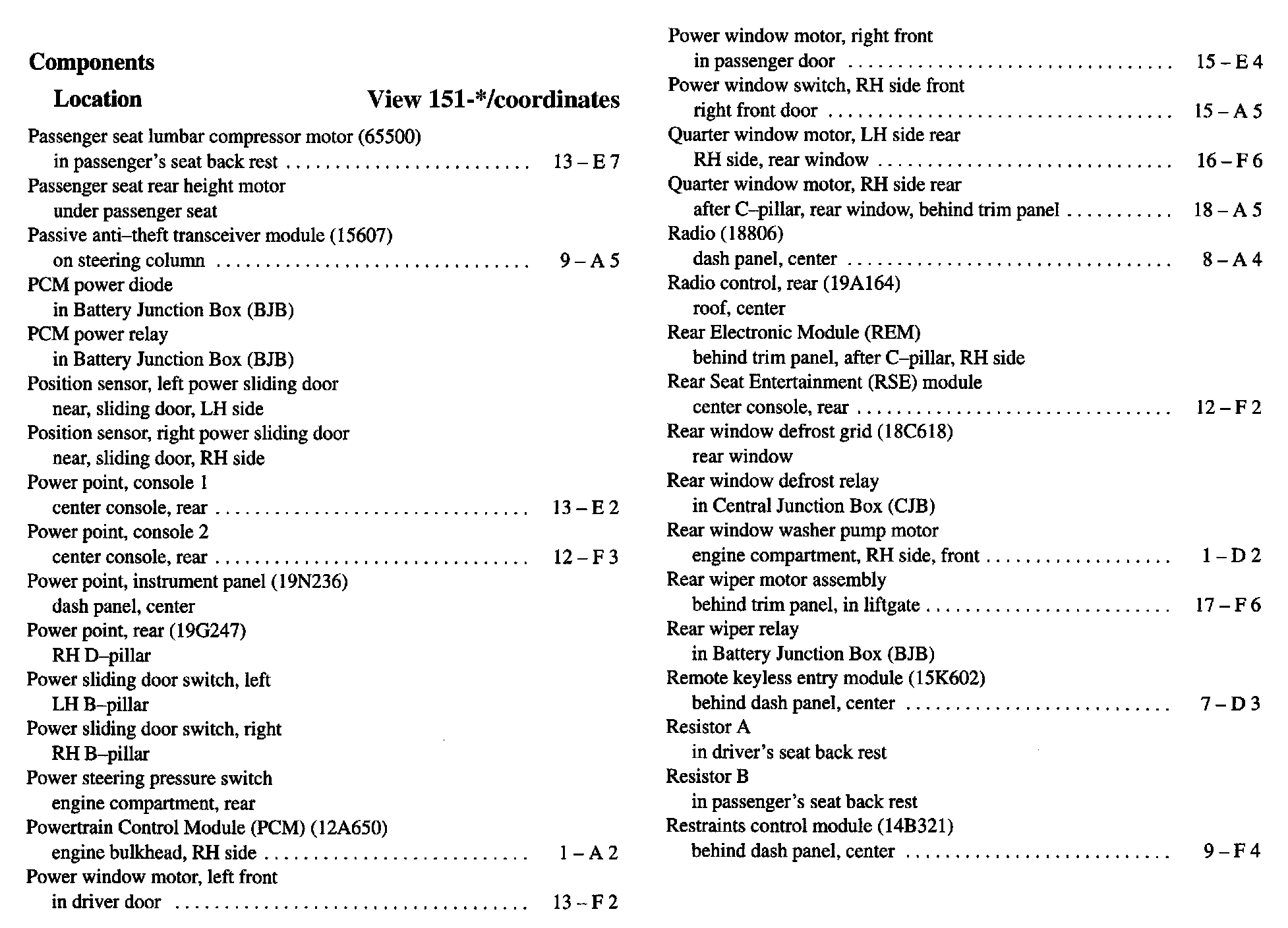

Pa - Re:
Re - SSP:

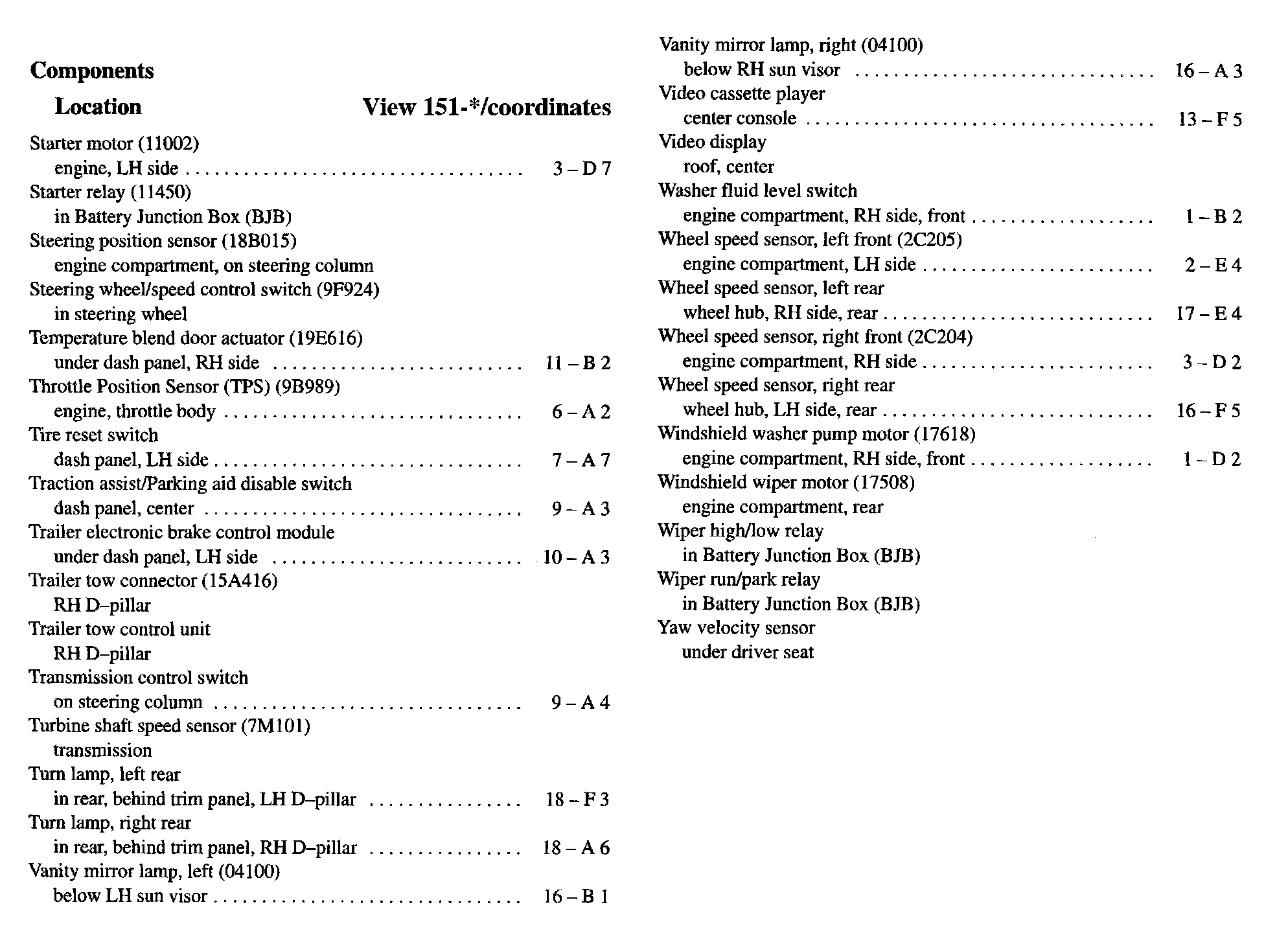

St - Ya:
