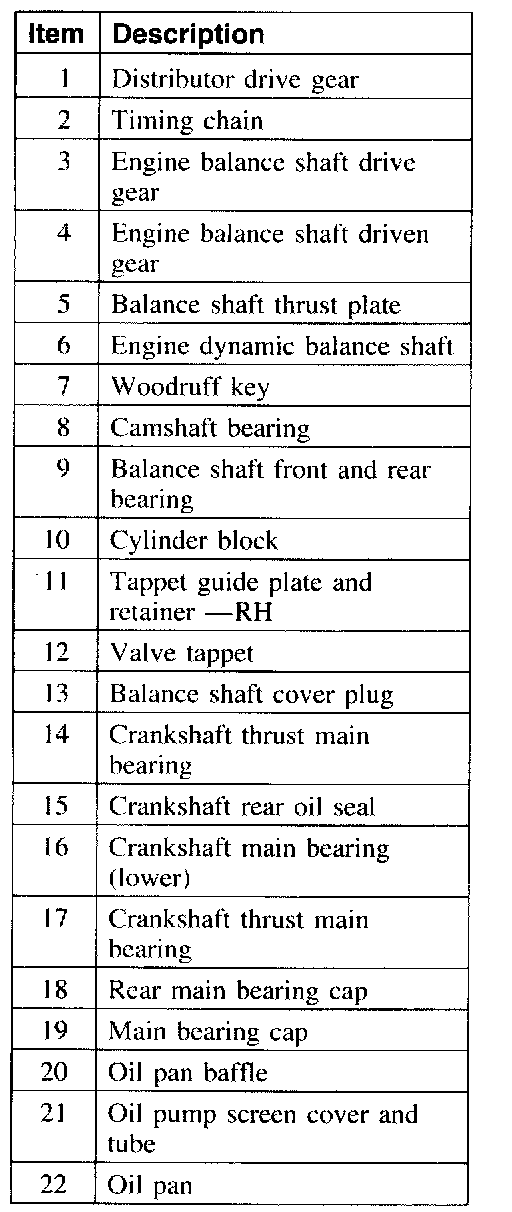

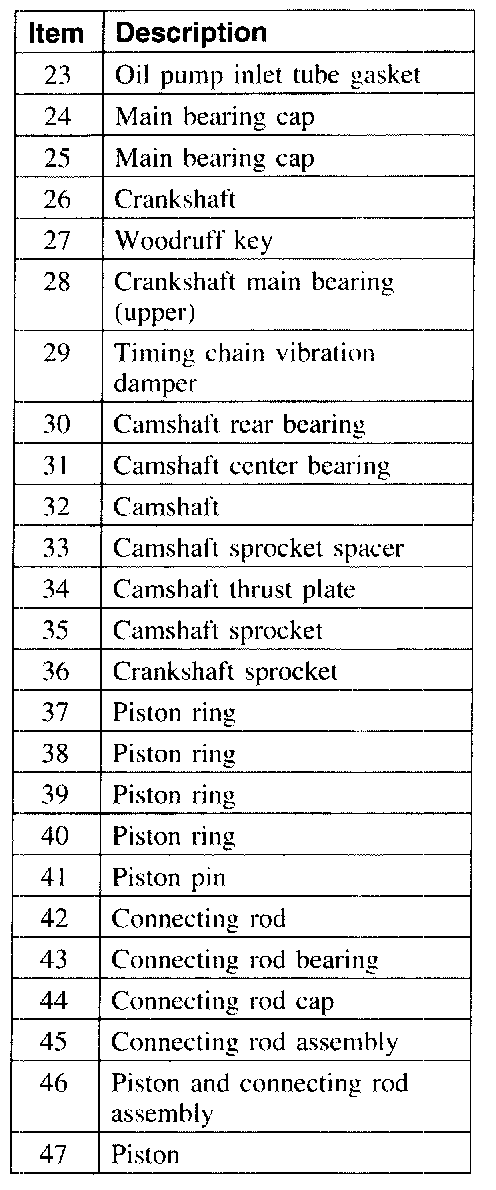

Engine-Lower Components

Engine Components











Engine-Lower Components

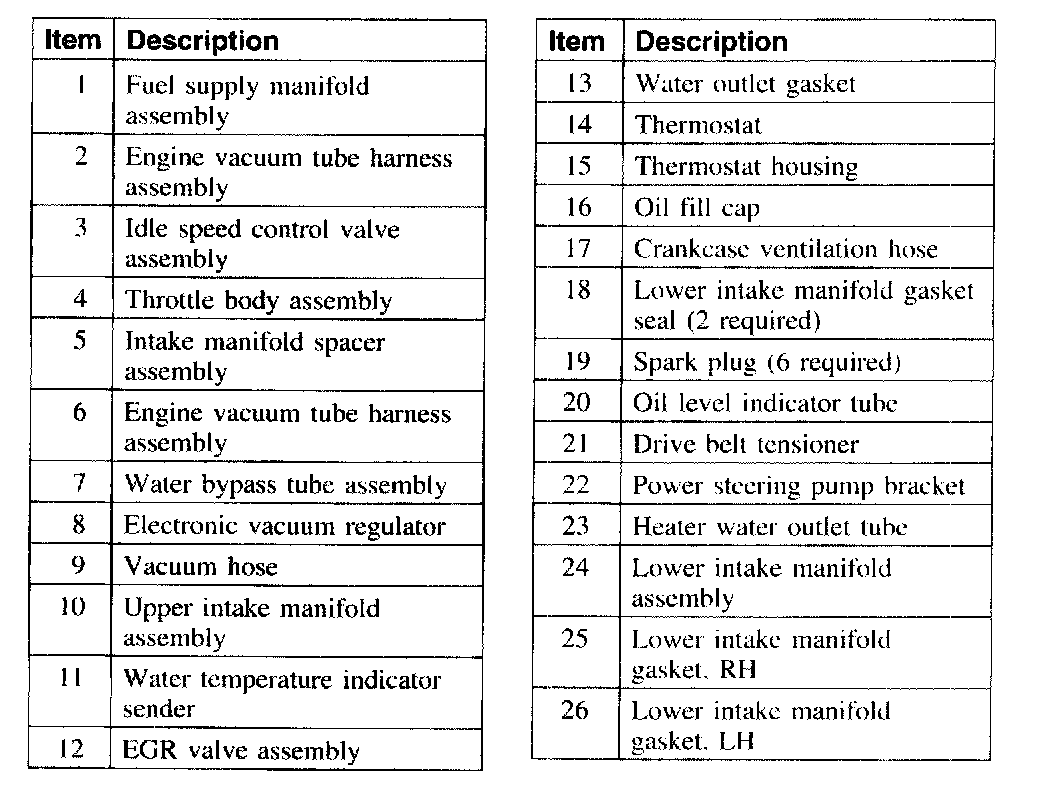

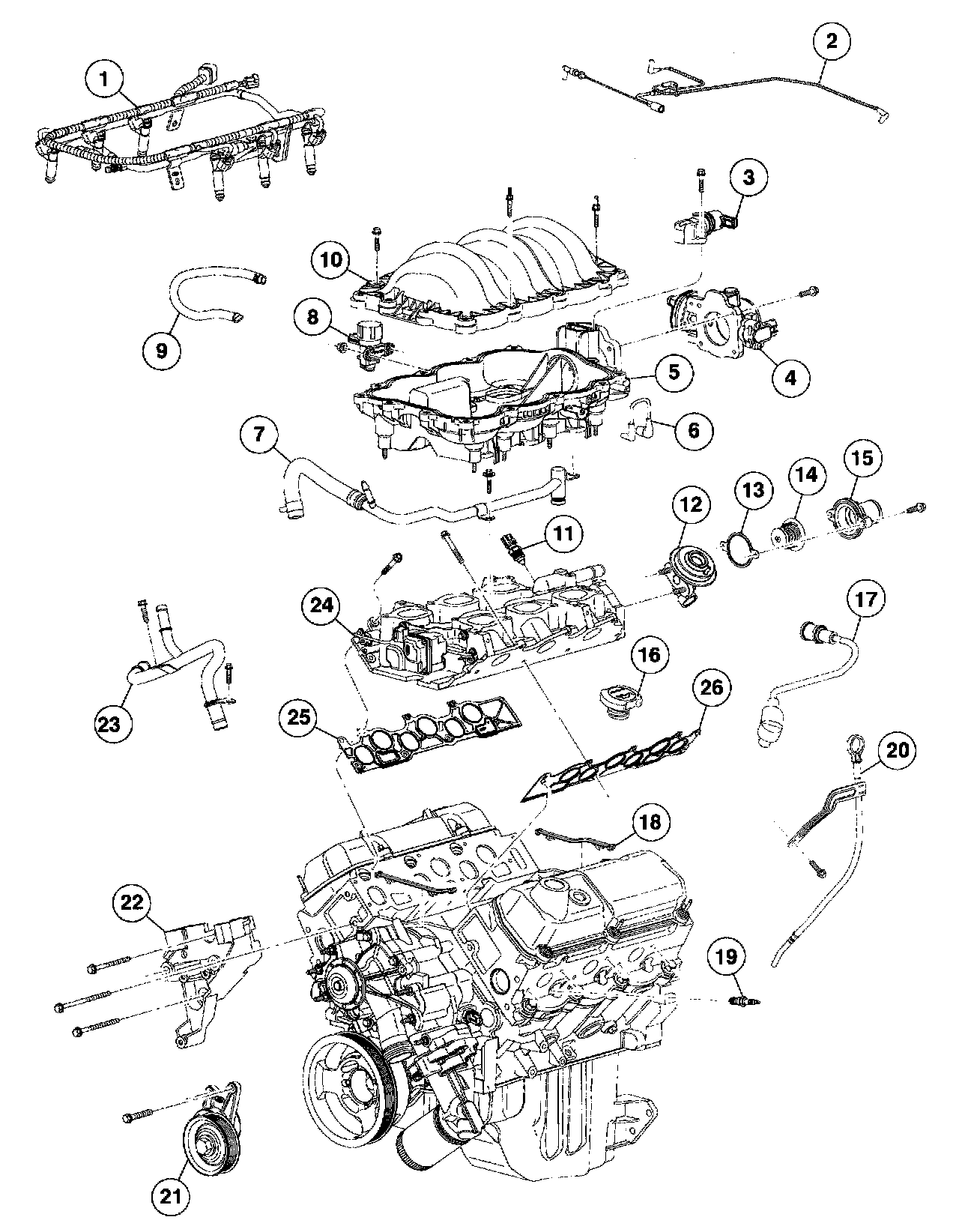

Engine-Upper Components








Engine-Front Components
