Test F: A/C Does Not Operate or Does Not Operate Correctly

PINPOINT TEST F: THE A/C DOES NOT OPERATE OR DOES NOT OPERATE CORRECTLY

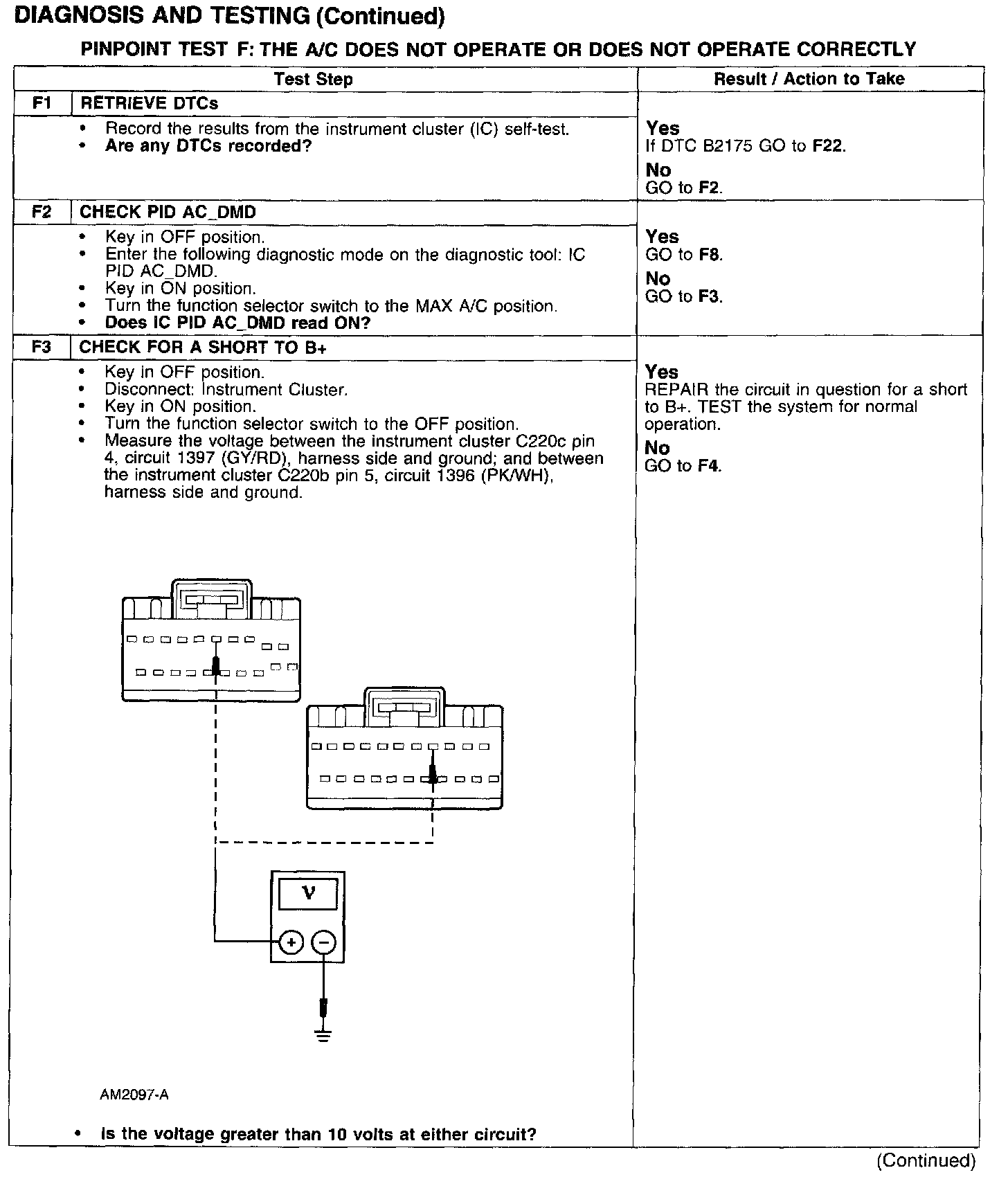

Test F1-F3:

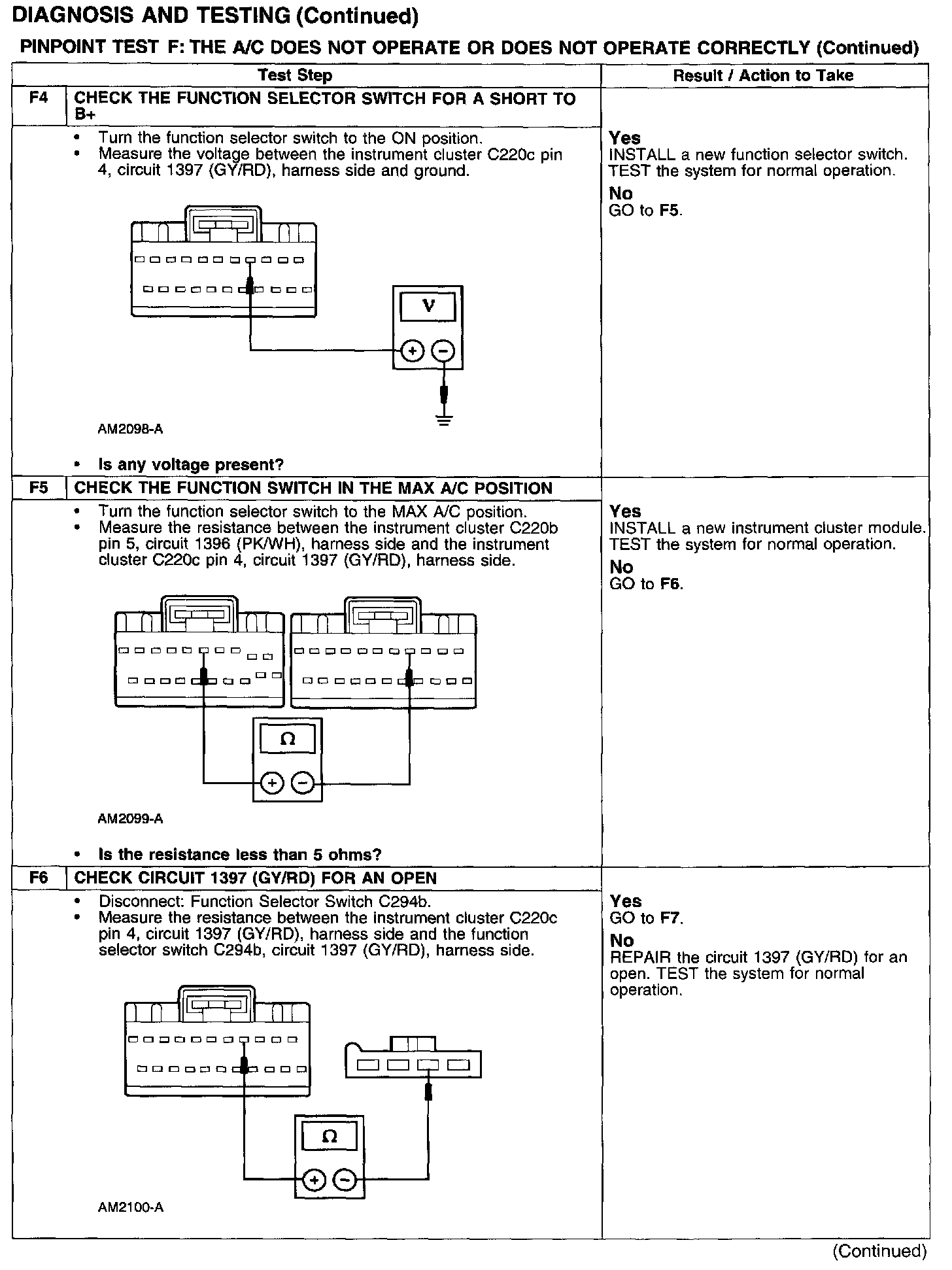

Test F4-F6:

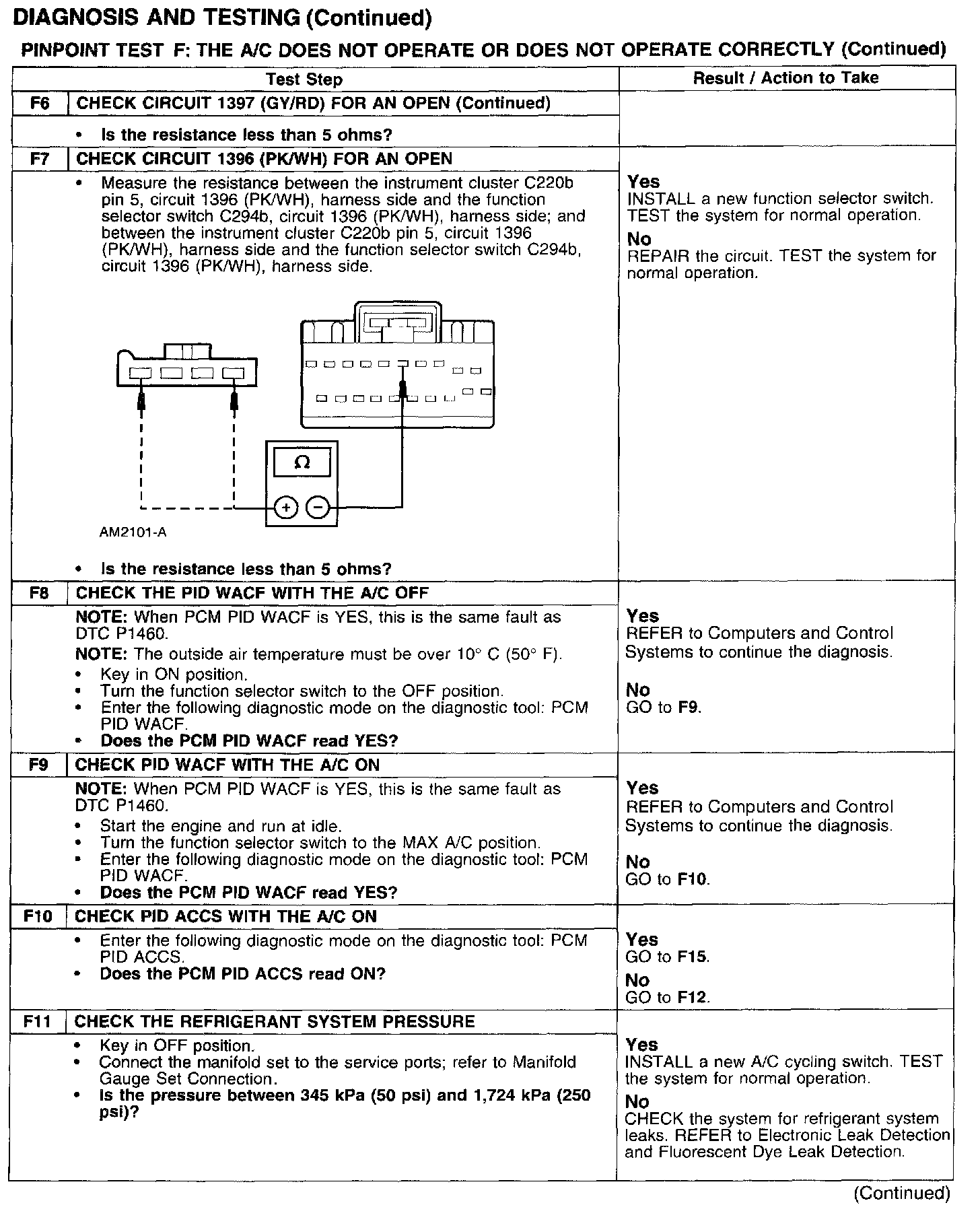

Test F6-F11:

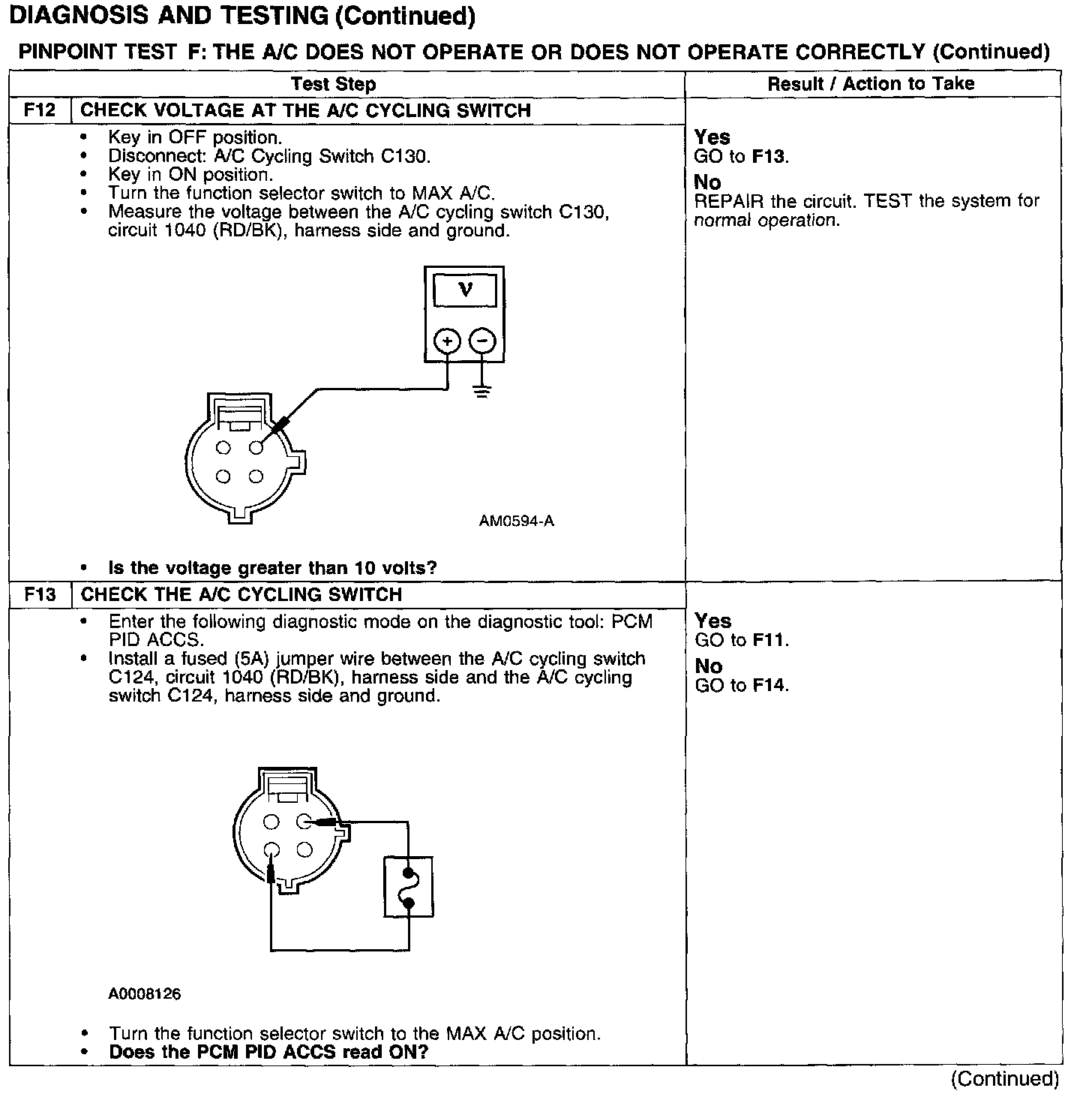

Test F12-F13:

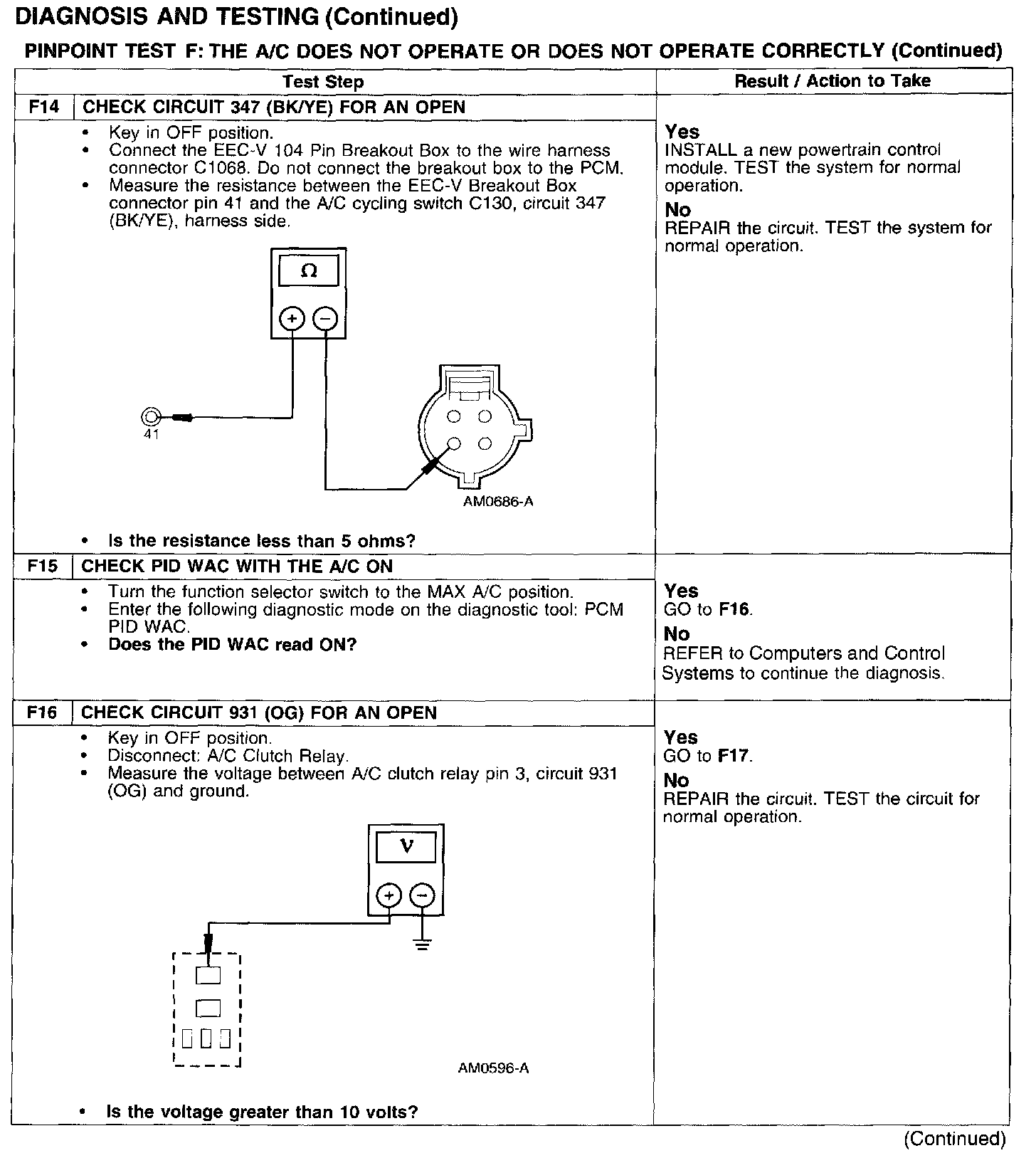

Test F14-F16:

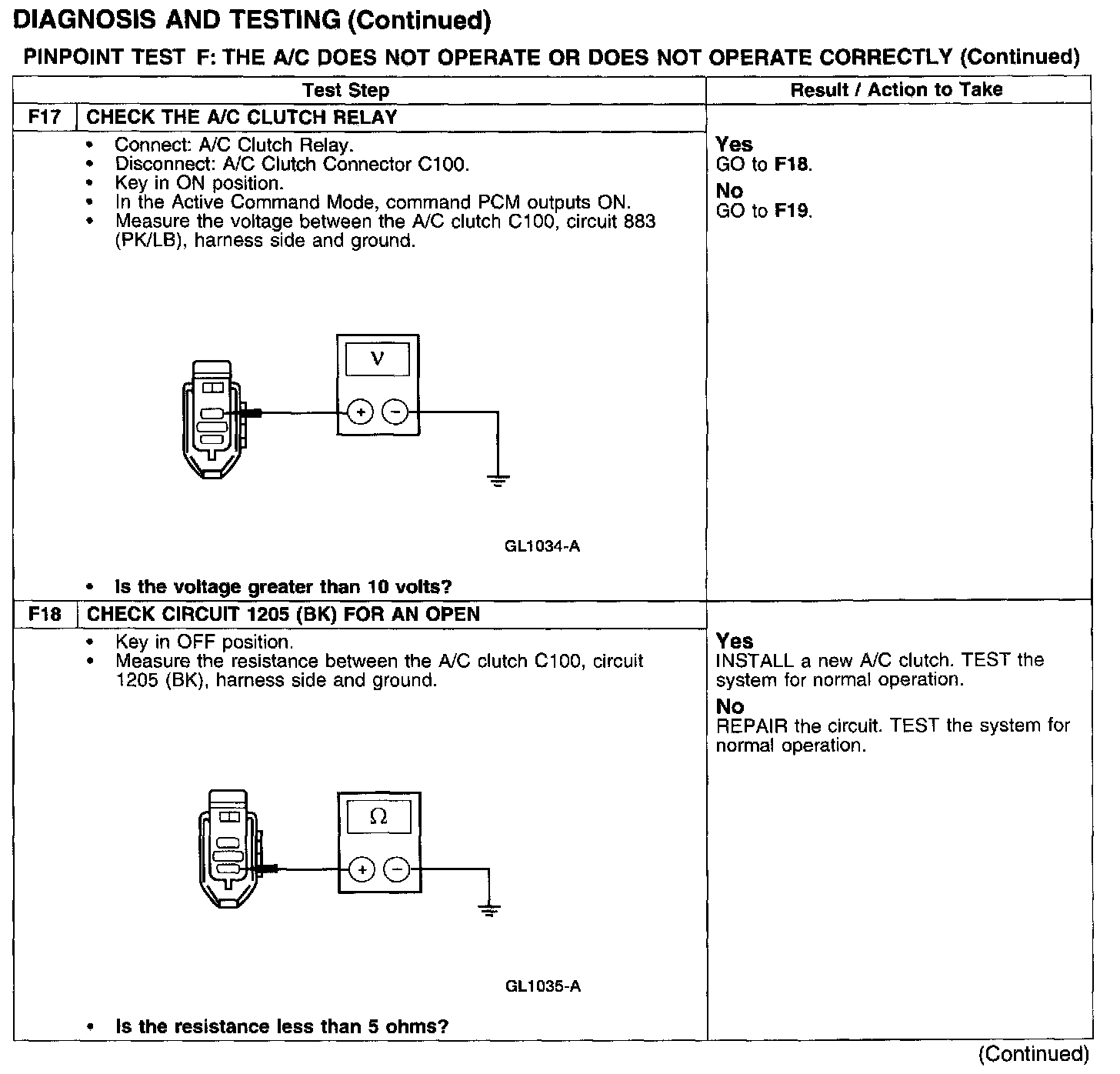

Test F17-F18:

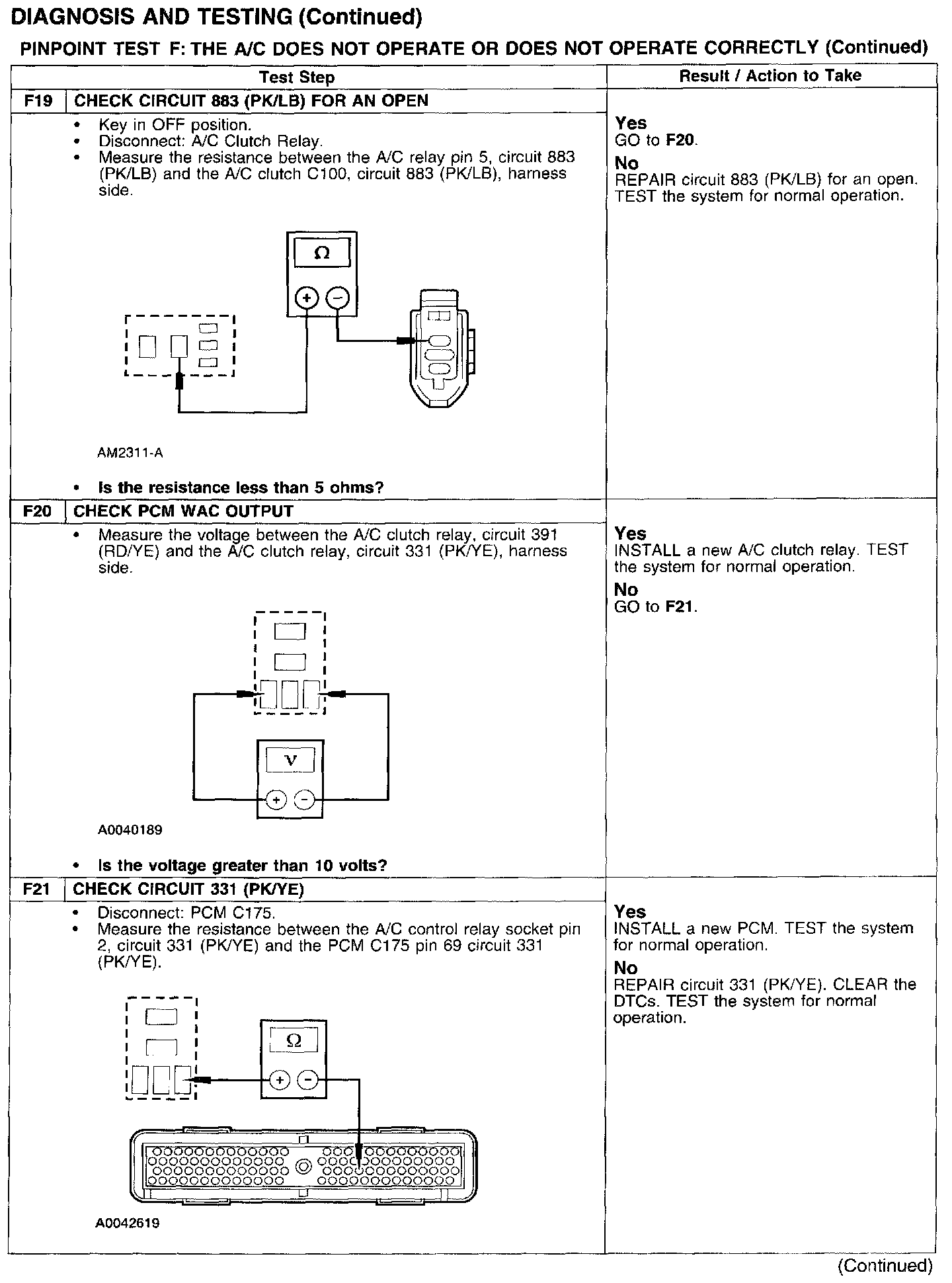

Test F19-F21:

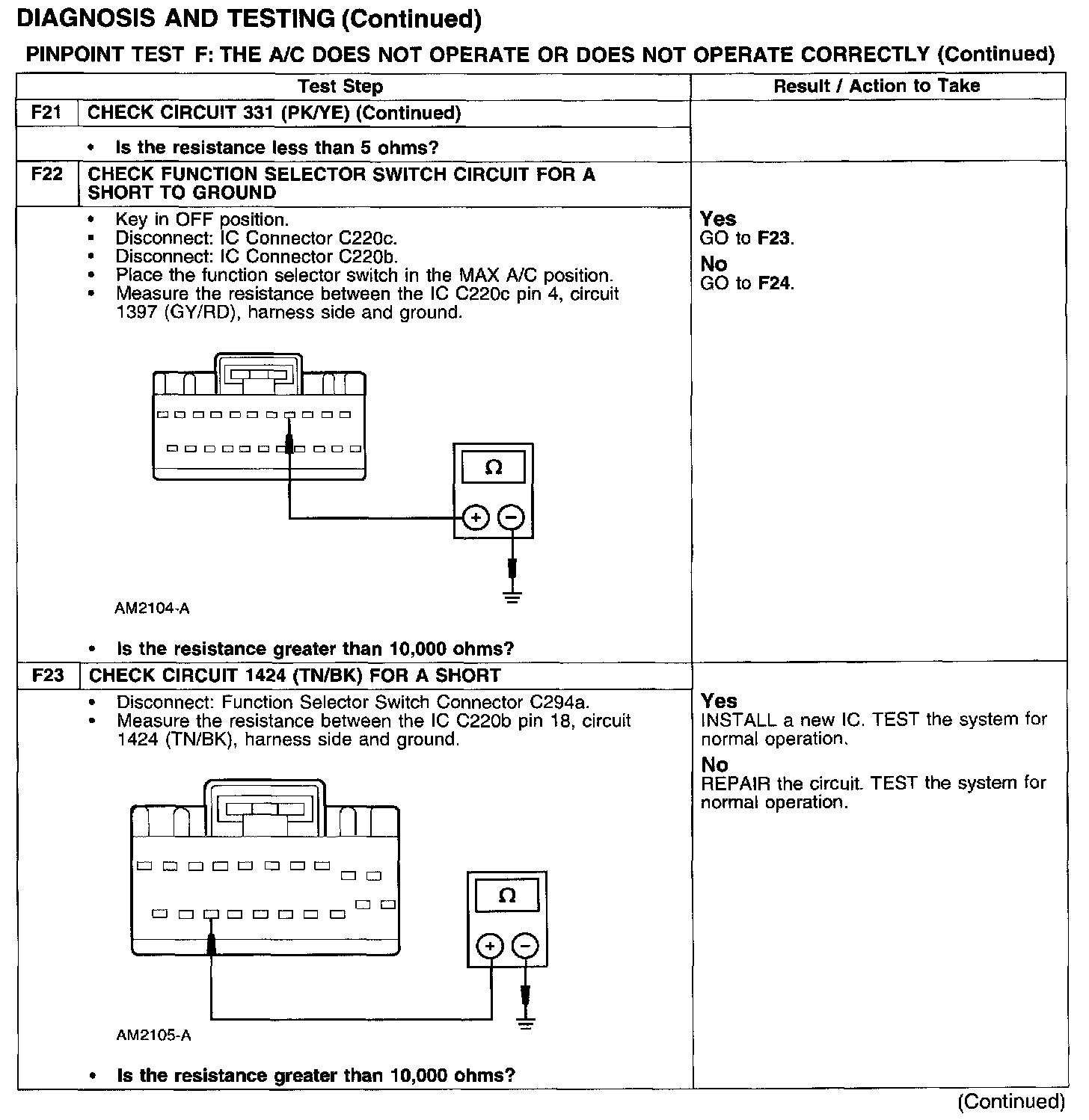

Test F21-F23:

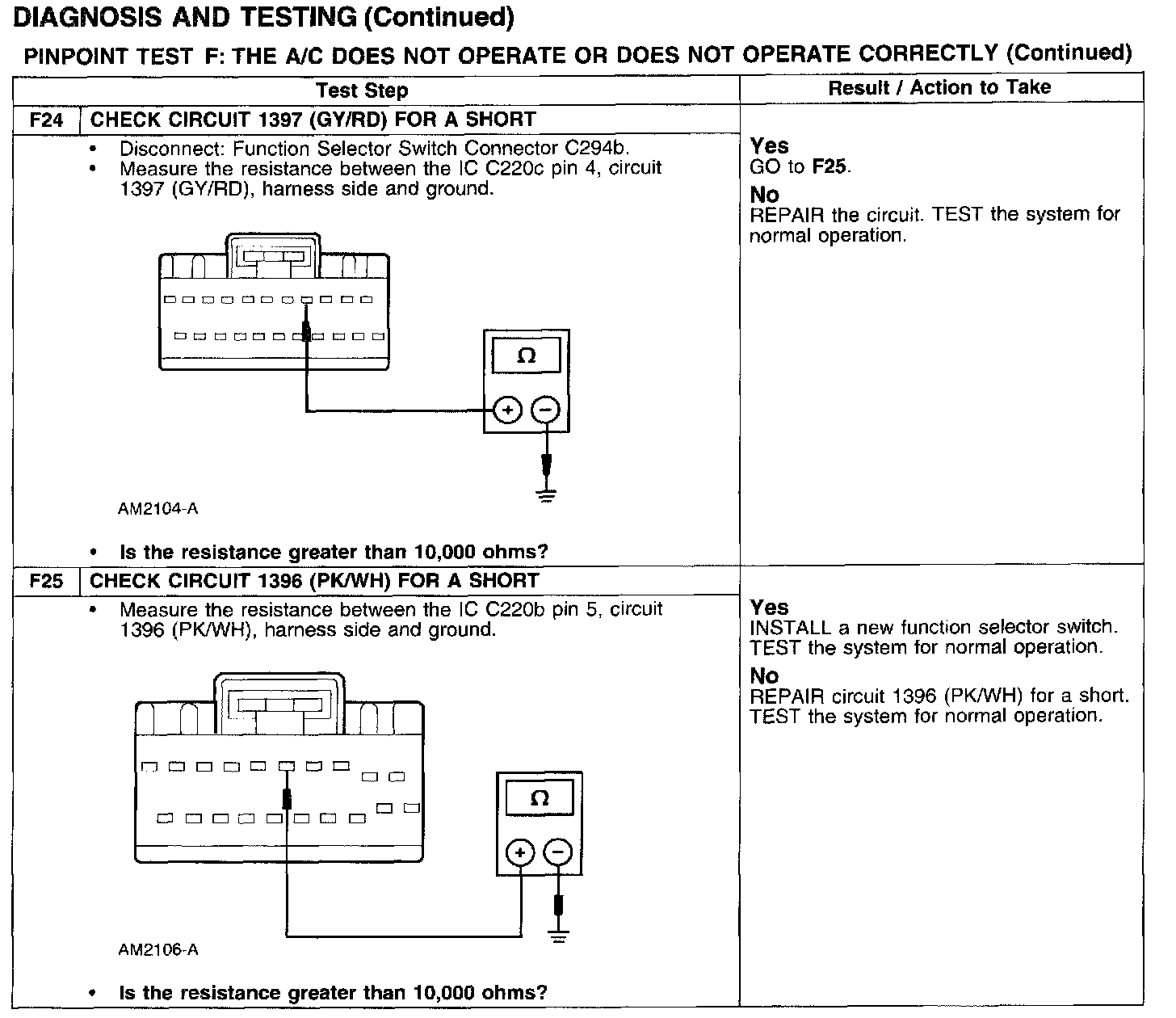

Test F24-F25:
