B2175
B2175
PINPOINT TEST A: NO COMMUNICATION WITH THE FRONT ELECTRONIC MODULE (FEM) - UNABLE TO CARRY OUT THE FRONT ELECTRONIC MODULE (FEM) SELF-TEST
Test A1:

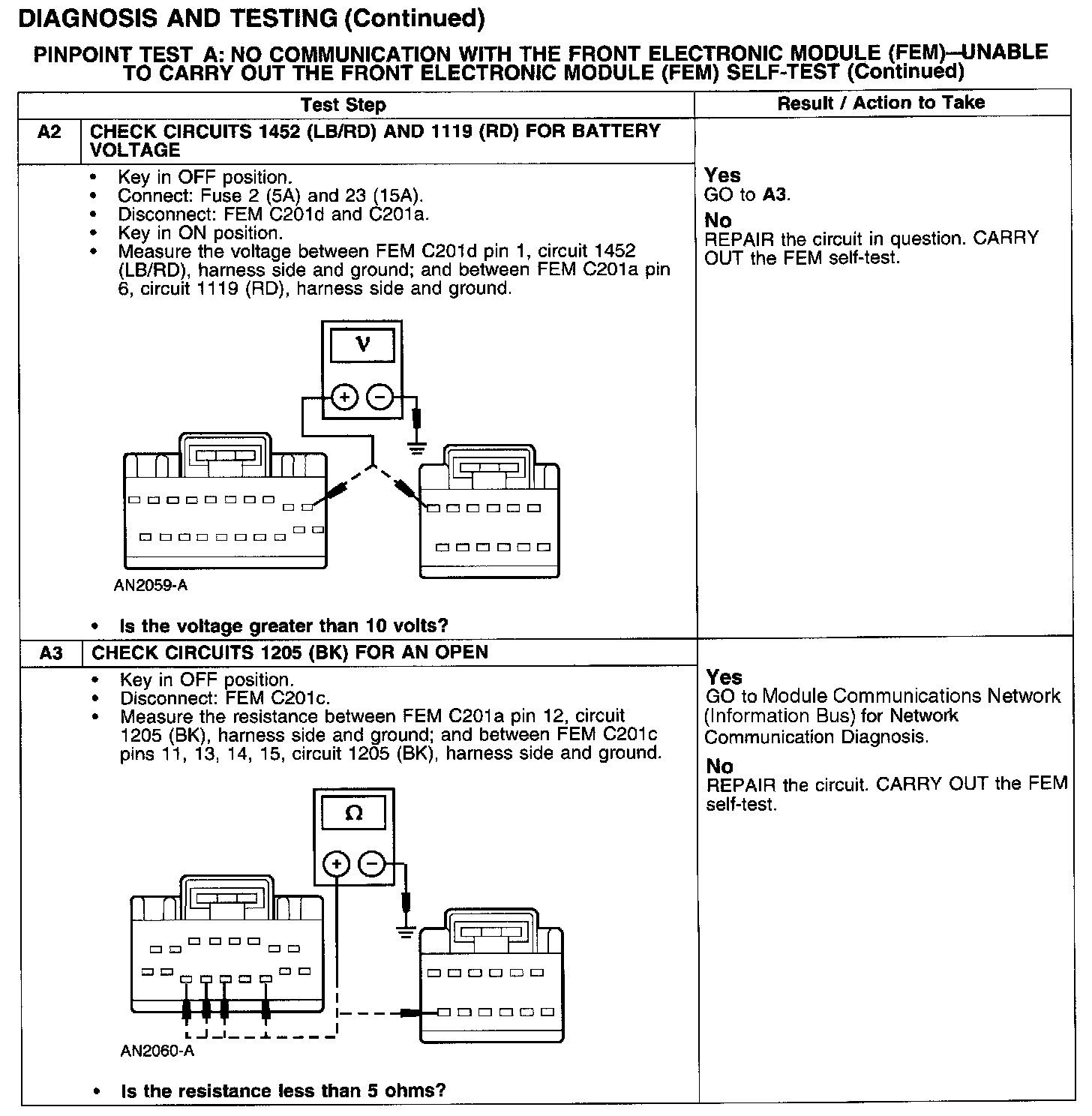

Test A2-A3:
