Headlamp: Service and Repair

HEADLAMP ASSEMBLY

REMOVAL







1. NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

Raise the headlamp retainers.







2. Remove the headlamp assembly.

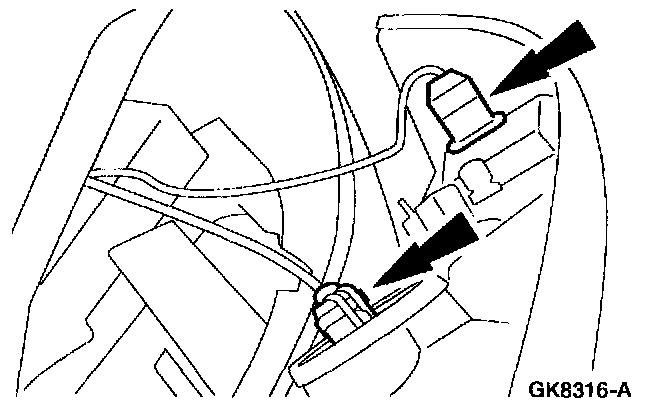

- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
- If necessary, adjust the headlamps.
