Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
2003
>>
Windstar V6-3.8L VIN 4
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C
Test C
PINPOINT TEST C: BOTH HEADLAMPS ARE INOPERATIVE - LH HIGH BEAM/LH LOW BEAM
Test C1-C3:

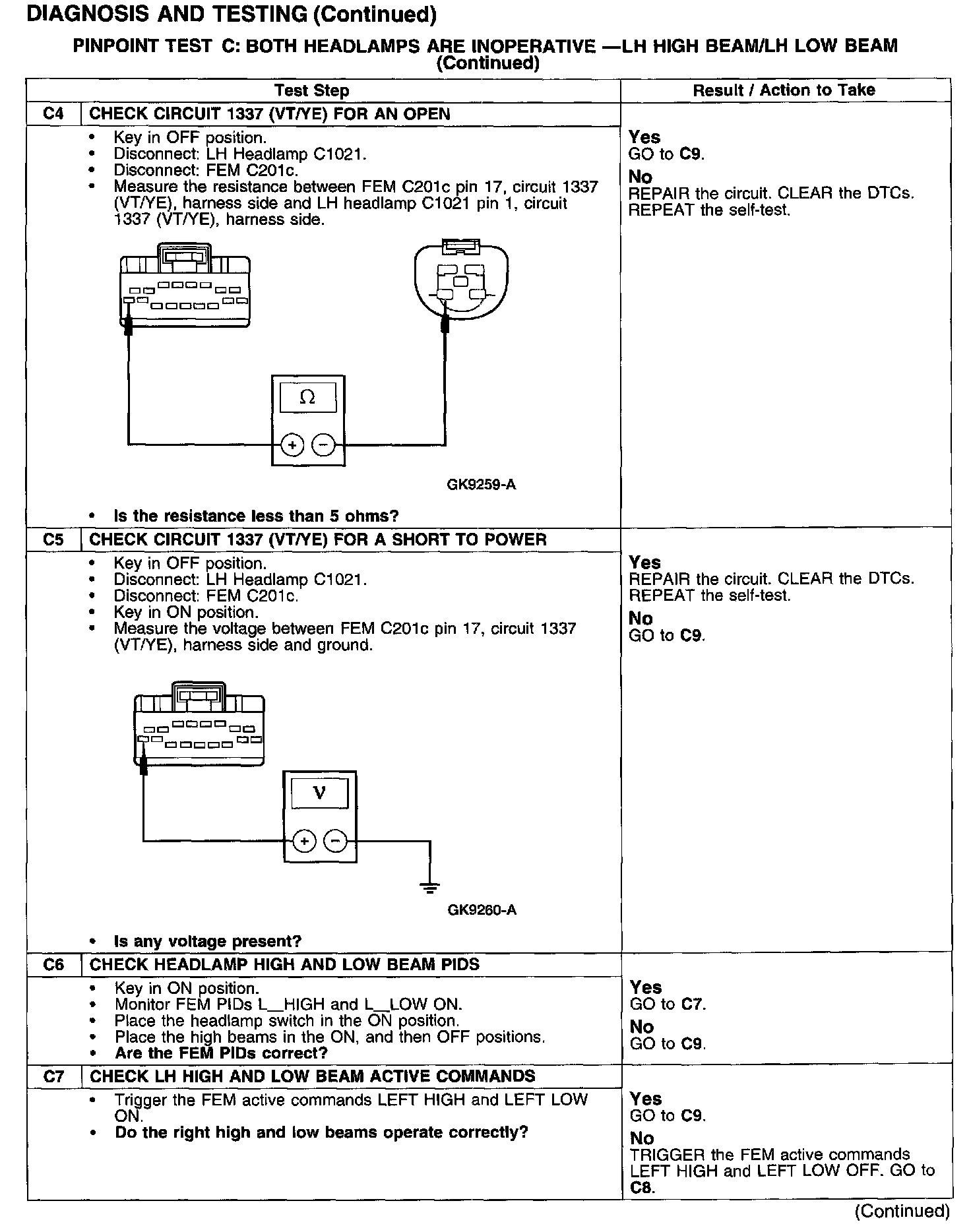

Test C4-C7:

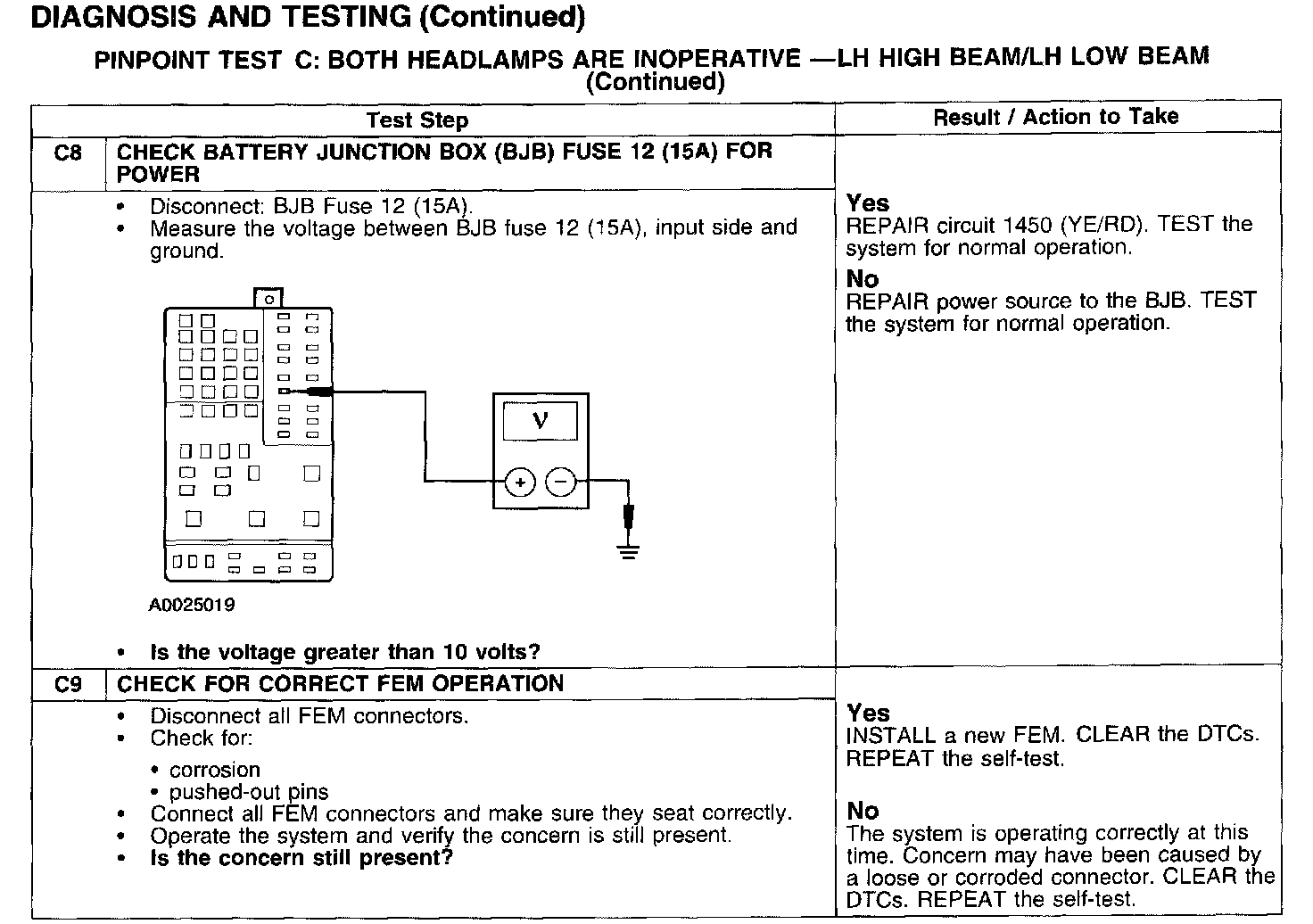

Test C8-C9:
